Home > Products > Solar Pumping Inverter > 30kw Three Phase AC Power Pump Controller for solar pump system
30kw Three Phase AC Power Pump Controller for solar pump system
- 8888 Piece / Pieces per Month
- NINGBO OR SHENGZHEN OR SHANGHAI
- T/T Credit Card
You May Like
-
3700W PV pump Inverter for Solar Pump System
-
100m 5kw Solar Water Pump Photovoltaic Sine Wave Inverter
-
MPPT Solar Pump Inverter Without Battery for AC Power Pump Converter system
-
Solar Sine Wave Inverter for 3 Phase AC Submersible Pump
-
3 Phase AC Power Solar Borehole Inverter
-
Waterproof Series Solar Sine Wave Pump Inverter Built in VFD and MPPT
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BANGZHAO OR OEM | |
| Model Number | BSPI-30KW | Output Power | 1 - 200KW | |
| Output Type | Triple | Size | 550*550*860 | |
| Weight | 60kg | Input Voltage | 400-650 | |
| Output Voltage | 380-440V | Type | DC/AC Inverters | |
| Output Frequency | 0-60HZ | Output Current | 45A |
Product Description
30kw Three Phase AC Power Pump Controller Converter

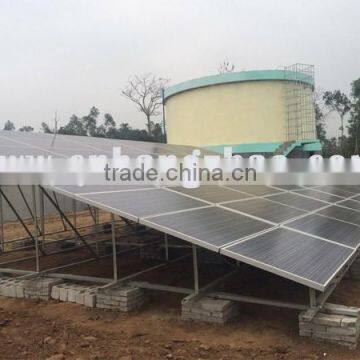

Solar Pumping System Introduction:
Bangzhao Solar pump system consists of the specialized pump inverter for PV, water pump and solar panels. This device widely used in domestic water, irrigation water, control of desert, animal husbandry, water supply for Sea Island, water treatment projects, etc. Water storage replaces battery and directly drives pumping, with high reliability, at the same time, it can reduce system cost and maintenance costs.
Product Features
1, Adopting the proposed dynamic VI maximum power point tracking (MPPT) control method & optimized SVPWM; fast response and stable operation; and the conversion efficiency achieves of 99.6%.
2, Adopting high-efficiency IPM (intelligentpower module) from Mitsubishiwith high reliability and high efficiency.
3, Designed with variable frequency driver (VFD), can be used in variable frequency speed regulation technology, greatly improves efficiency, and better to protect water pump and maximum utilizationof solar panels.
4, AC drive function. When is no sunshine, such as at night, solar pump inverter can connect to AC city power to work by manually if AC power is available.
5, LCD display operating panel, can setting various parameters through LCD, easy to operation.
6, Complete protection function for PV input under voltage, PV input over voltage, input connection Reverse Polarity, DC over current, output, over load, short circuit, dry Well, overflow, dry running, and blocking protection.
Technical Specification
Model | Adapted pump motor | Max PV input power (KWP) | MPPT Tracking Voltage (V) |
Max. DC input voltage (V) | Rated output current(A) | Output frequency (Hz) | |
Rated power (kW) | Rated Voltage (V) | ||||||
BSPI-750W | 0.55~0.75 | 200~220 | 1 | 200~400 | 500 | 5 | 0~60 |
BSPI-1500W | 1.1~1.5 | 200~220 | 1.85 | 200~400 | 500 | 7 | 0~60 |
BSPI-2200W | 2.2 | 200~220 | 3 | 200~400 | 500 | 11 | 0~60 |
BSPI-3700W | 3~3.7 | 380~440 | 4.5 | 400~650 | 850 | 9 | 0~60 |
BSPI-5500W | 4~4.5 | 380~440 | 7 | 400~650 | 850 | 13 | 0~60 |
BSPI-7500W | 7.5 | 380~440 | 9 | 400~650 | 850 | 18 | 0~60 |
BSPI-11KW | 9.2~11 | 380~440 | 13 | 400~650 | 850 | 24 | 0~60 |
BSPI-15KW | 13~15 | 380~440 | 18 | 400~650 | 850 | 30 | 0~60 |
BSPI-18KW | 18.5 | 380~440 | 22 | 400~650 | 850 | 39 | 0~60 |
BSPI-22KW | 22 | 380~440 | 25 | 400~650 | 850 | 45 | 0~60 |
BSPI-30KW | 26~30 | 380~440 | 35 | 400~650 | 850 | 60 | 0~60 |
BSPI-37KW | 37 | 380~440 | 45 | 400~650 | 850 | 75 | 0~60 |
BSPI-45KW | 40~45 | 380~440 | 53 | 400~650 | 850 | 91 | 0~60 |
BSPI-55KW | 55 | 380~440 | 65 | 400~650 | 850 | 112 | 0~60 |
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q 8. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 3 years.
Q 8.How about the lifetime?
A:The life time for inverterl is 15-20years.
OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.
Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most
Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
Contact Us
- Yueqing Bangzhao Electric Co., Ltd.
- Contact nameMolly Zhang Chat Now
- Phone0086-577-61771566
- AddressShangyou Ind. Area, Liushi Town
