5050 RGB Led Strip of Zhenzhen Factory

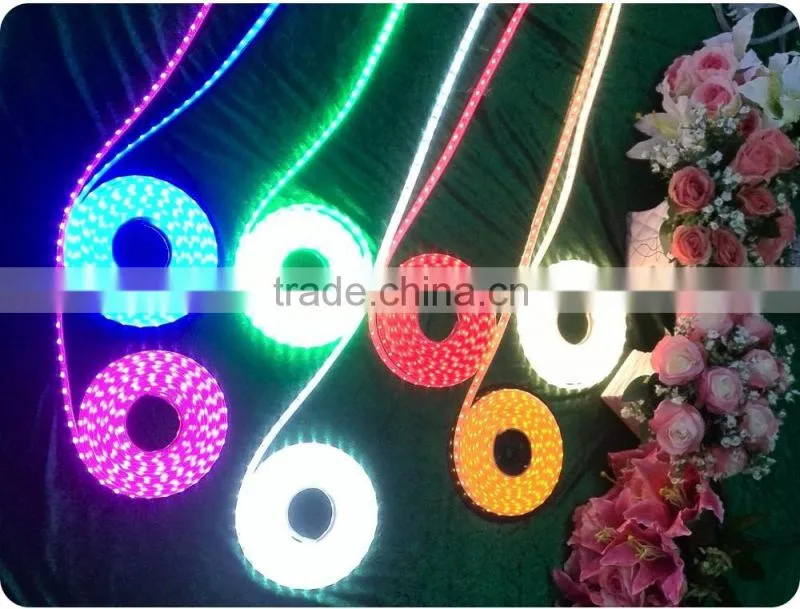

5050 RGB Led Strip of Zhenzhen Factory thumbnail-1
5050 RGB Led Strip of Zhenzhen Factory thumbnail-2

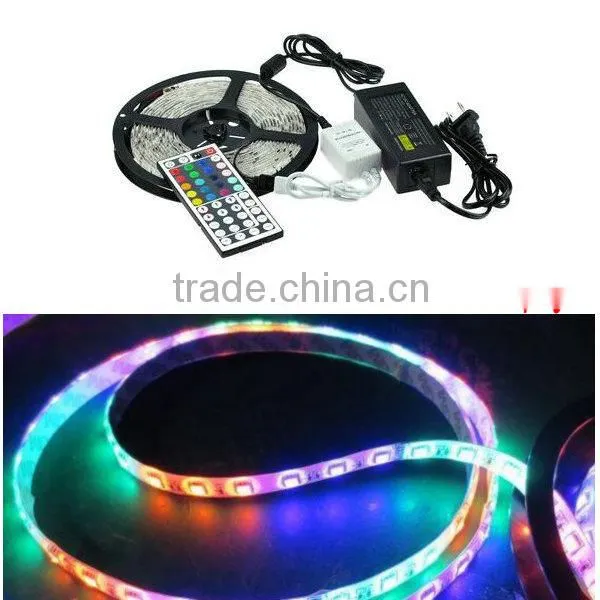

5050 RGB Led Strip of Zhenzhen Factory photo-1

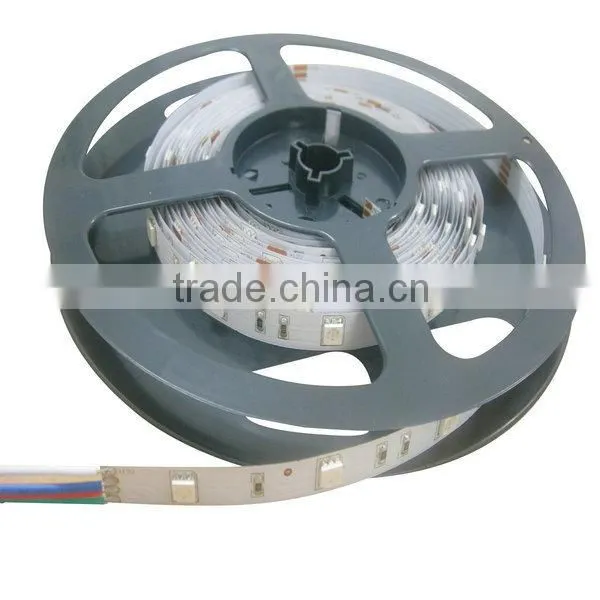

5050 RGB Led Strip of Zhenzhen Factory photo-2
US$ 1.33 - 2.47 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
LED
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen HongTai World Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shezhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LED
Type Flex LED Strips
Input Voltage(V) DC12V
Lamp Power 14.4W
Color Temperature(CCT) 2800-12000K
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum
Certification CE, EMC, FCC
Emitting Color Other, R/G/B/Y/W/WW
Place of Origin Guangdong, China
Brand Name HTD
Model Number HTD-RGT-5050-60-RGB



Product Description

 HTD-RGT-5050-60-RGB

•     High brightness LEDs mounted on flexible circuit board

•    Energy saving lighting solution

•    Low power consumption

•    Operating life longer than fluorescent and incandescen

5050 RGB led strip of zhenzhen factory

This LED Light Strip is a flexible and scalable lighting solution using high brightness LEDs to supply illumination for residential, commercial, and industrial applications.Up to 16 feet (5 meters) can be operated with a single 12V power supply.Dual-sided tape provides easy installation in most indoor applications and allows many different configurations.Additional mounting options are available for permanent installation.

5050 RGB led strip of zhenzhen factory5050 RGB led strip of zhenzhen factory

Detailed parameters

<![if !supportLists]>l  <![endif]>Specifications

NO.

Project

Unit

Range

1

Size

mm

5000×10×1.5/2.5/3.5(IP20/IP65/IP67)

2

Packaging

/

5m/Plate/Roll

3

Operating Temperature

℃

-20~+45

4

Number of LED SMD5050

PCS

300

5

Input Voltage

V

DC12

6

Power

W

≤72

7

Power/m

W

≤14.4

8

Cutting Length

mm

50/3LEDs

9

Power

/

12V 6A

10

Viewing Angle

/

120°

11

Color Temperature/lm

K/nm

Red

625nm

Yellow

590nm

Green

520nm

Blue

465nm

Warm white

Natural White

Cool White

3000~3500k 5500~6500k
8000k-13000k

12-14lm/1LED

12

Waterproof Level

IP

Not waterproof

/

Soft silicon tube or

epoxy glue

IP65

Soft silicon tube mixed epoxy glue

IP67



*Installation Drawings

5050 RGB led strip of zhenzhen factory

Applications

•    Commercial and residential decoration

•    Under-counter lighting

•    Media illumination

•    Large area backlighting

•    Small to medium channel letters

•    Point-of-sale displays

•    Neon replacement

5050 RGB led strip of zhenzhen factory





Packaging

5meters/roll  200meters/CTN  11kg/CTN
