High Lighting Hydrophilic Led Light Bar Rigid Strip 3528
- 50000 Meter / Meters per Month
- Shenzhen
- T/T Credit Card PayPal
- Top Quality IP65 High Lumen 28W 36W Rgb RGBW DMX512 Outdoor Light 36W Dmx Rgb Led Wall Washer
- USB Waterproof Flexible COB Led Strip Light kit DC5V 320leds/m No dark spots COB led light strip
- 24V cob IP20/65/67/68 led stripDam Type COB FOB Flexible High Density CCT LED Strip
- DC5V COB Strip LED 640LEDs/M CCT Warm/Cold White Flexible COB LED Light Strips
- DC24V 672LEDs 32 Pixels Dam Type RGBIC Digital pixel LED COB Strip COB strip lights for decorations
- WS2812b SK6812 WS2811Dam Type Addressable RGB RGBW RGBIC COB LED Strip Light
Product Details
LED Light Source: | SMD3528 | Type: | LED Bar Lights | Input Voltage(V): | DC12V |
Lamp Power: | 4.8W/M | Working Temperature(℃): | -40, 60 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Other, Plactis+AL | Certification: | CE, EMC, FCC, LVD | Emitting Color: | Other, white/red/green/blue/yellow |
Place of Origin: | Guangdong, China | Brand Name: | HTD | Model Number: | HTD-1060-3528 |
Product Description

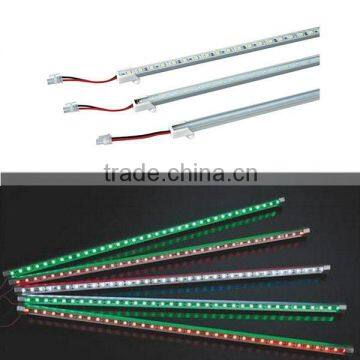

HTD-1060-3528
-Constitute by 6063AL Planar slot,MCPCB,Pure copper wires and SMD3528 LED per meter.UV resistant epoxy resin.
-The LED beam is 125-135° flood lighting,without the shadow,high brightness in 420-480lm/60LEDs/M,low thermal resistance,low Light failure,in a poor environment can good work.
-4.8W/M,the working voltage is DC12V.
-IP66 waterproof level.Warranty is 2 years.
-Main applications: Exhibition cabinet.and advertising light box instead of using T5 tubes in the future.Or other use.
*Tips:
-When we computing power should retain 20% of the allowance.
-Up to 5pcs HTD-1060-3528 to use in one parallel.Screw holes on both ends to fixed,convenient and accurate.
-Advice that both ends connect DC12V power,achieve the best use effect.
-Can be choose have PC cover type.
Application
- LED for lightingbox edge emitting
- Advertisement signs backlighting
- LOGO & Letters backlighting
- Advertisement Light boxes and billboards backlighting
- Landscape, commercial, home and stage decoration
- Amusement Led strip is widely used in Ferris wheel, park, theme park, carnival, party, super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank, meeting room, exhibition hall, exhibition wardrobe, show window, living house, Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting.
Relevant products:
Part No. | Power | Voltage | PCB | LED chips | LED quantity | Color | Unit | Dimension |
HTD-YDT-3528/48 | 3.84W | 12V | Aluminum based board | Epistar | 48 | red/yellow/blue | 1M | Aluminum groove 10*6*1000mm |
3.84W | 12V | Aluminum based board | Epistar | 48 | Neutral white/warm white | 1M | ||
3.84W | 12V | Aluminum based board | Epistar | 48 | Bright green | 1M | ||
3.84W | 12V | Aluminum based board | Epistar | 48 | pink | 1M | ||
HTD-YDT-3528/96 | 7.68W | 12V | Aluminum based board | Epistar | 96 | red/yellow/blue | 1M | Aluminum groove 10*6*1000mm |
7.68W | 12V | Aluminum based board | Epistar | 96 | Neutral white/warm white | 1M | ||
7.68W | 12V | Aluminum based board | Epistar | 96 | Bright green | 1M | ||
7.68W | 12V | Aluminum based board | Epistar | 96 | pink | 1M | ||
HTD-YDT-5050/30 | 7.2W | 12V | Aluminum based board | Epistar | 30 | Neutral white/warm white | 1M | Aluminum groove 10*6*1000mm |
HTD-YDT-5050/60 | 14.4W | 12V | Aluminum based board | Epistar | 60 | Neutral white/warm white | 1M | |
HTD-YDT-5050/42 | 8.7W | 24V | Aluminum based board | Epistar | 42 | Neutral white/warm white | 1M | Aluminum groove 17*9.5*1000mm |
HTD-YDT-5050/60 | 14.4W | 24V | Aluminum based board | Epistar | 60 | Neutral white/warm white | 1M | |
HTD-YDTV-5050/60 | 14.4W | 12V | Aluminum based board | Epistar | 60 | Neutral white/warm white | 1M | V-shape slot |
HTD-YDTV-5050/72 | 17.3W | 12V | Aluminum based board | Epistar | 72 | Neutral white/warm white | 1M | |
HTD-YDTZG-5050 | 7.2W | 5V/12V | Aluminum based board | Epistar | 30 | Fullcolor | 1M | Aluminum groove 17*9.5*1000mm |
HTD-YDTRGB-5050 | 7.2W | 5V/12V | Aluminum based board | Epistar | 30 | RGB | 1M | Aluminum groove 17*9.5*1000mm |
HTD-YDTZG-5050 | 11.5W | 5V/12V | Aluminum based board | Epistar | 48 | Fullcolor | 1M | Aluminum groove 17*9.5*1000mm |
HTD-YDTRGB-5050 | 14.4W | 5V/12V | Aluminum based board | Epistar | 60 | RGB | 1M | Aluminum groove 17*9.5*1000mm |
Shipping terms
Shipment Terms:EX-work,UPS,DHL,TNT others express door to door service; by sea; by air
Delivery: 3~25 days after order confirmed(according to actual order quantity)
Shipping port: Shenzhen, Mainland China
Payment terms
L/C T/T
Paypal / Western Union / HSBC / ESCROW/Bank of China/ICBC
