DC12V/24V 30leds/M SMD5050 Rigid Led Strip

DC12V/24V 30leds/M SMD5050 Rigid Led Strip thumbnail-1

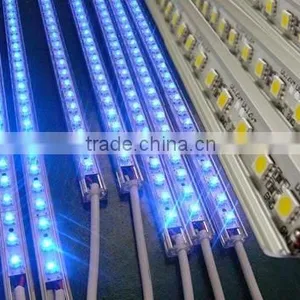

DC12V/24V 30leds/M SMD5050 Rigid Led Strip thumbnail-2
DC12V/24V 30leds/M SMD5050 Rigid Led Strip photo-1

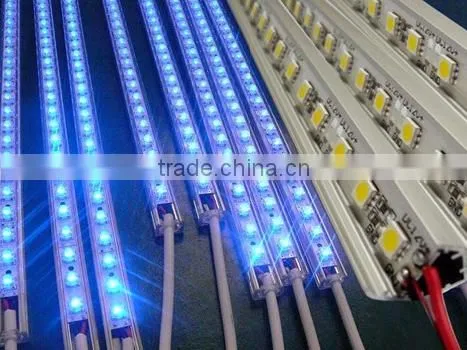

DC12V/24V 30leds/M SMD5050 Rigid Led Strip photo-2
US$ 4 - 4.5 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
LED Bar Lights
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen HongTai World Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type LED Bar Lights
Input Voltage(V) DC12V
Lamp Power 7.2W/M
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material Other, Plactis+AL
Certification CE, EMC, FCC, LVD
Emitting Color Other, white/red/green/blue/yellow
Place of Origin Guangdong, China
Brand Name HTD
Model Number HTD-1030-5050
Product Description

 HTD-1030-5050

-Constitute by 6063AL Planar slot,MCPCB,Pure copper wires and SMD5050 LED per meter.UV resistant epoxy resin.
-The LED beam is 125-135° flood lighting,without the shadow,high brightness,low thermal resistance,low Light failure,in a poor environment can good work.
-7.2W/M,the working voltage is DC12V.
-IP66 waterproof level.Warranty is 2 years.
-Main applications: Exhibition cabinet.and advertising light box instead of using T5 tubes in the future.Or other use.
*Tips:
-When we computing power should retain 20% of the allowance.
-Up to 5pcs HTD-1030-5050 to use in one parallel.Screw holes on both ends to fixed,convenient and accurate.
-Advice that both ends connect DC12V power,achieve the best use effect.
-Can be choose have PC cover type.

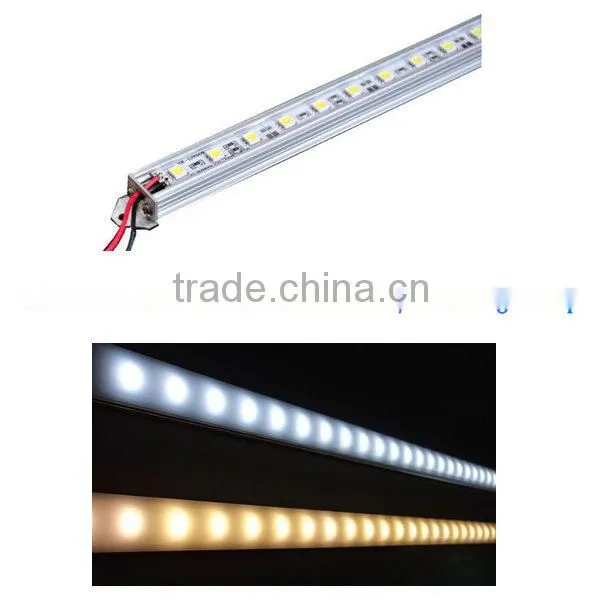

DC12V/24V 30leds/M SMD5050 rigid led stripDC12V/24V 30leds/M SMD5050 rigid led strip

Application

  • LED for lightingbox edge emitting
  • Advertisement signs backlighting
  • LOGO & Letters backlighting
  • Advertisement Light boxes and billboards backlighting
  • Landscape, commercial, home and stage decoration
  • Amusement Led strip is widely used in Ferris wheel, park, theme park, carnival, party, super market, hotel, tavern, night club, disco hall, karaoke room, coffee house, bank, meeting room, exhibition hall, exhibition wardrobe, show window, living house, Boat lighting, accent lighting, display case lighting, Under cabinet lighting and Art lighting.

DC12V/24V 30leds/M SMD5050 rigid led strip



  DC12V/24V 30leds/M SMD5050 rigid led strip

DC12V/24V 30leds/M SMD5050 rigid led strip

Relevant products:

Part No. Power Voltage PCB LED    chips LED quantity Color Unit Dimension
HTD-YDT-3528/48           3.84W 12V Aluminum based board Epistar 48 red/yellow/blue 1M Aluminum groove 10*6*1000mm
3.84W 12V Aluminum based board Epistar 48 Neutral white/warm white 1M
3.84W 12V Aluminum based board Epistar 48 Bright green  1M
3.84W 12V Aluminum based board Epistar 48 pink 1M
HTD-YDT-3528/96              7.68W 12V Aluminum based board Epistar 96 red/yellow/blue 1M Aluminum groove 10*6*1000mm
7.68W 12V Aluminum based board Epistar 96 Neutral white/warm white 1M
7.68W 12V Aluminum based board Epistar 96 Bright green  1M
7.68W 12V Aluminum based board Epistar 96 pink 1M
HTD-YDT-5050/30 7.2W 12V Aluminum based board Epistar 30 Neutral white/warm white 1M Aluminum groove 10*6*1000mm
HTD-YDT-5050/60 14.4W 12V Aluminum based board Epistar 60 Neutral white/warm white 1M
HTD-YDT-5050/42 8.7W 24V Aluminum based board Epistar 42 Neutral white/warm white 1M Aluminum groove 17*9.5*1000mm
HTD-YDT-5050/60 14.4W 24V Aluminum based board Epistar 60 Neutral white/warm white 1M
HTD-YDTV-5050/60 14.4W 12V Aluminum based board Epistar 60 Neutral white/warm white 1M V-shape slot
HTD-YDTV-5050/72 17.3W 12V Aluminum based board Epistar 72 Neutral white/warm white 1M
HTD-YDTZG-5050 7.2W 5V/12V Aluminum based board Epistar 30 Fullcolor 1M Aluminum groove 17*9.5*1000mm
HTD-YDTRGB-5050 7.2W 5V/12V Aluminum based board Epistar 30 RGB 1M Aluminum groove 17*9.5*1000mm
HTD-YDTZG-5050 11.5W 5V/12V Aluminum based board Epistar 48 Fullcolor 1M Aluminum groove 17*9.5*1000mm
HTD-YDTRGB-5050 14.4W 5V/12V Aluminum based board Epistar 60 RGB 1M Aluminum groove 17*9.5*1000mm
