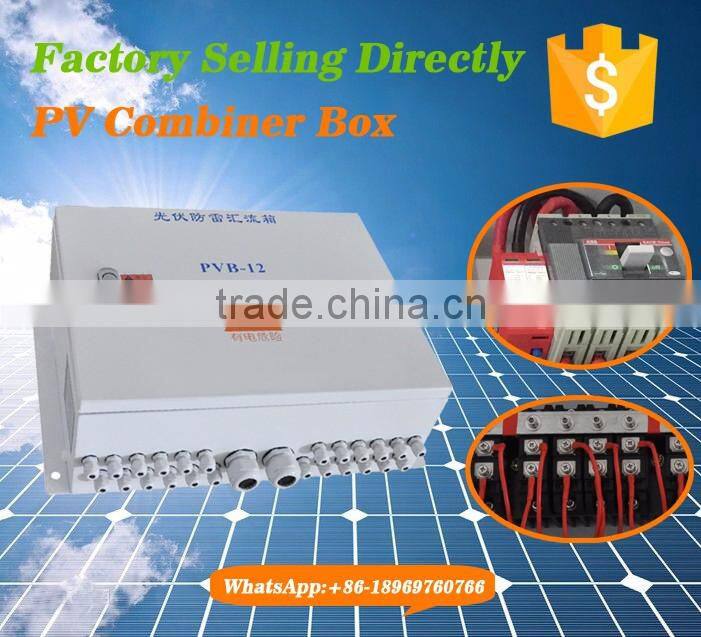

Outdoor Wall-Mounted PV Combiner Box With 12 Channels Input

  Outdoor Wall-Mounted PV Combiner Box with 12 Channels Input

Description

PV combiner box is used to bring together the output DC current of the PV array. It will combine the same solar panels which in series to form a PV Array ,supporting the use of photovoltaic grid-connected inverter, so as to constitute a complete photovoltaic system, with the city electric grid.

Summarize

BPVB series PV Array Combiner For a large-scale grid-connected PV system, it is a general practice to install a DC combining device in between the PV modules and inverters for the sake of minimizing the cable distance between them, facilitating maintenance and improving reliability. With many years of PV grid-connected system design experience, our BPVB PV array combiner box series is specially-designed for meeting the need of high performance and high reliability of PV systems. In combining with our Solar Access inverters, Bangzhao BPVB provides a turnkey solution for PV power plant systems. By using PV array combiner box, according to the input voltage of the inverter, Clients can connect a fixed number of similar PV modules to form a PV array. Then different strings of PV array can be converged into the PV array string box. After that, together with lightning arresters and circuit breakers, it is connecting to the inverter to reduce the system installation time and increase the system safety.

Features of PV array combiner box:

*  Applicable for outdoor PV systems;

*  Each PV array attached to DC fuse protection and anti-reverse protection optional;

*  Wide DC voltage input range with maximum open-circuit voltage up to 1000V;

*  High voltage lightning protection (SPD) special for PV;

*  PG Cable glands connector input, convenient and safe system wiring;

*  PV special high voltage circuit breaker control output;

*  Output Waterproof terminals;

Features of PV array combiner box monitor

1, Small size, easy installation

2, Monitoring host directly use pv power as the working power supply, and to provide working power to intelligent current sensor

3, PV high voltage measurement

4, Read external intelligent current sensor data and 16 strings total current data, and upload it.

5, 16 strings DC power measurement and 16 strings total power
6, 1 string temperature measurement for measuring the box inside temperature
7, Two strings switch input which can separately monitor the running status of the SPD and the main switch.
8, Isolated RS485 interface used for remote data communication, support MODBUS-RTU protocol.
9, Infrared data interface can be convenient for field data checking and parameter settings
10,Built in all-round protection alarm functions, not only the alarm parameters can be set through programming but also  each alarm function can be individually set to off or on, convenient for on-site application

Technical Parameters:
1,Working power supply input: DC200V-1000V
2,Voltage measurement range: DC200V-1000V
3,Voltage measurement accuracy: 0.5 class
4,Temperature measurement range: -50 ℃ -125 ℃
5,Temperature measurement accuracy:+1℃
6,Switch input: dry contact input
7,Normal operating temperature: -25 ℃ -70 ℃
8,Storage temperature: -40 ℃ -85 ℃
9,Safe isolated voltage: between PV input and secondary 3500VAC 60 seconds
10,Product size: 105 × 67 × 49 (mm)

Technical Parameters

 Above parameter only for reference

1. Could be custom made according to user demand.

Q 1. What's the payment term?

A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?

A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.

Q 4.Would you accept to use our logo ?

A.It's no problem to do OEM.

Q 5.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?

A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
