Home > Electrical & Electronics > Breaker & Protector > Fuse > 1000V 30A Fuse Holder With Fuse for Solar Inverter System
US$ 1 - 10
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Bangzhao or OEM
Model Number:
PVH-30
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage DC Fuse Block With Fuse for PV Module SystemUS$ 1 - 10MOQ: 1000 Pieces -
High Voltage DC Fuse Block With Fuse 10AUS$ 1 - 10MOQ: 1000 Pieces
-
8 to 1 Solar Panel Cable Connector With FuseUS$ 0.01 - 10MOQ: 1000 Pairs
-
8 to 1 Solar Connector With Fuse for PV ModuleUS$ 0.01 - 10MOQ: 1000 Pairs
-
8 to 1 PV Connector With Fuse for PV ModuleUS$ 0.01 - 10MOQ: 1000 Pairs
Place of Origin
Zhejiang, China
Brand Name
Bangzhao or OEM
Model Number
PVH-30
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC

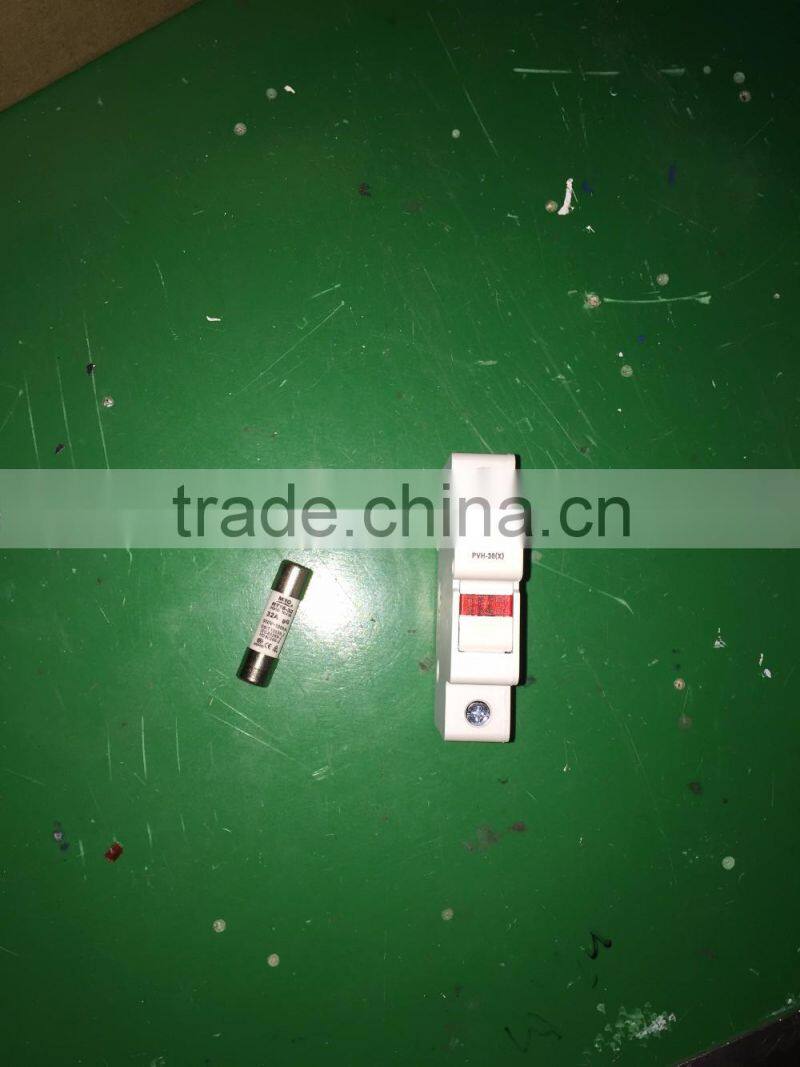

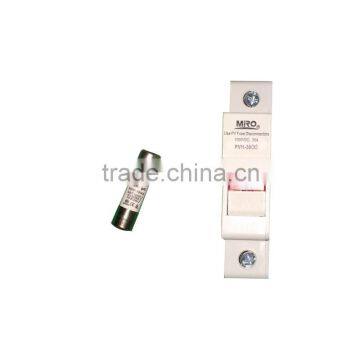

1000V 30A Fuse Holder with fuse for solar inverter system
PV DC PVH-30 Fuse Holder was designed and manufactured , complying with the standard IEC60947-3. The Rated Current up to 30A,rated voltage up to 1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.
| PV DC PVH-30 Fuse Holder | ||
| Pole | 1P | |
| According to | IEC 60947-3 | |
| Electrical Characteristics | ||
| Rated Working Voltage | Ue | 1000V DC |
| Rated Current | In | 30 A |
| Breaking Capacity | 20KA | |
| Max Power Dissipation | 3W | |
| Contol and Indication | ||
| Operating State/Fault Indication | Indicator Light OFF/Indicator Light ON | |
| Connection and Installation | ||
| Wire | 2.5mm2~25 | |
| Terminal Screws | M5 | |
| Torque | Nm | 2.5 |
| Degree of Protection | IP20 | |
| Installation Environment | ||
| Fuse Size | 10x38 mm | |
| Operating Temperature Range | TU | -30℃~+70℃ |
| For Mounting On | TH35-7.5/DIN35 | |
| Pollution Degree | 3 | |
| Relative Humidity | +20 ℃≤ 95%,+40℃≤50% | |
| Weight | 0.07kg Per pole | |
| Installation Class | Ⅲ | |
