Single phase line interactive UPS true sine wave

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	JETPOWER
Model Number	NT	Phase	Single Phase
Protection	Short Circuit	Weight	16kg
Output Voltage	230VA	Type	On-line
Application	Telecommunications

Product Description

Single phase line interactive UPS with AVR true sine wave(0.5k-10k)

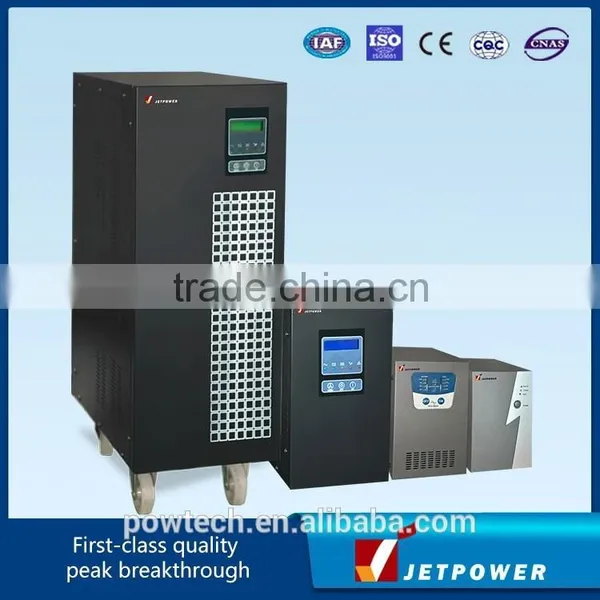

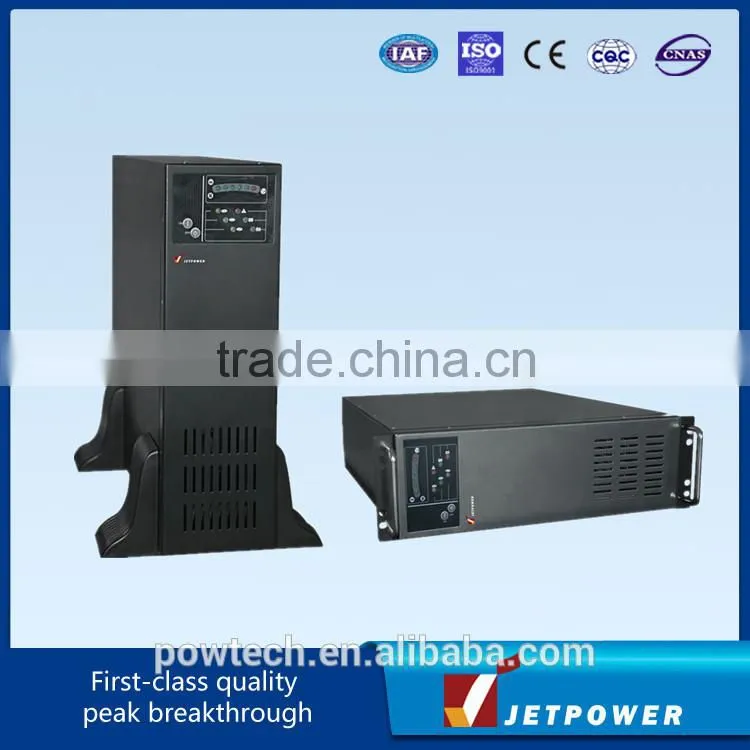

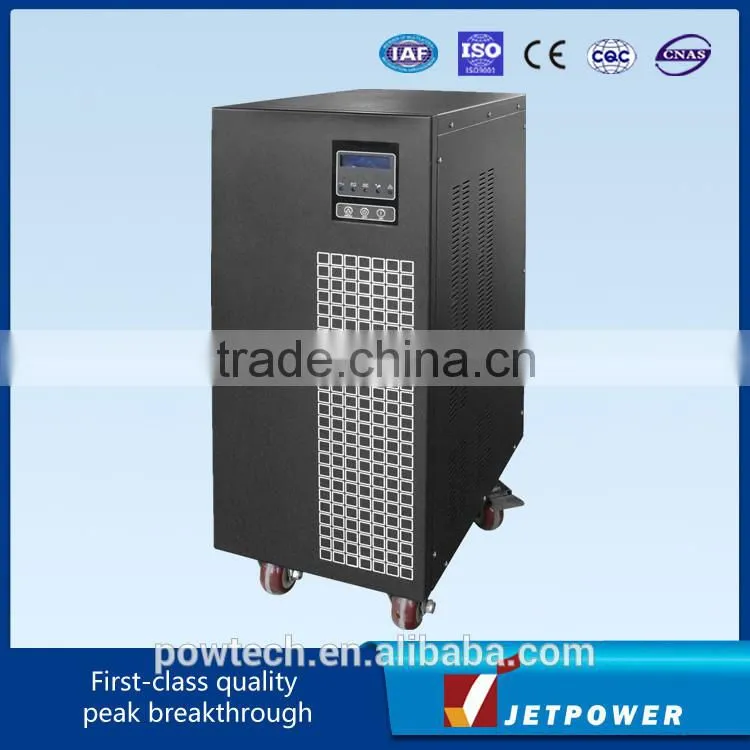

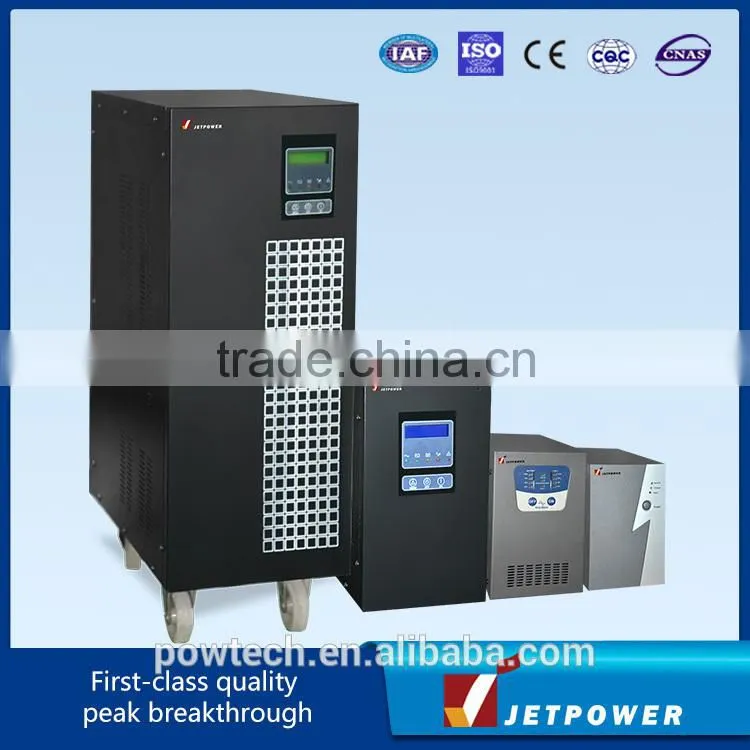

Detailed Images

Product Description

Main Features:

1. Provide Line-Interactive design and true sine wave output

2. Equipped with Boost and Buck AVR to stabilize input voltage 3. User configurable input voltage range and output voltage 4. DC start function enables UPS to be started up without AC power supplied

5. Large built-in charger with power factor corrected 6. Enable to extend runtime with scalable external battery pack

7. Fully protection for overload, short-circuit and over temperature

8. RS232 & dry contact signal for power management software

9. SNMP card slot is available for 2KVA above

Applications: Ideal for Home, Office, Bank, ATM, Hub, Modem, Autorotation Door, Emergency light and POS systems.

Technical specifications

Horse series,0.5k-10kva

Model Name

0.5KL

0.5KS

1KL

1KS

1.5KL

1.5KS

2KL

2KS

3KL

3KS

NT-6KL

NT-8KL

NT-10KS

Capacity (VA / Watt)

500VA/300W

1000VA/700W

1500VA/1050W

1500VA/900W

2000VA/1400W

3000VA/2100W

6KVA / 4.2KW

8KVA /5.6KW

10KVA/7KW

Overview

Power Factor

0.6

0.7

0.6

0.7

Outlook

Tower

Tower or Rack (3U)

Tower

Waveform

True sine wave

Input

Nominal Voltage

230V

Voltage Range

150-275Vac

160V~299V

Frequency Range

45HZ~60HZ

Socket Type

Socket+Fuse Holder

IEC 320 C19 Socket + Circuit breaker

Terminal block +CB

Output

Nominal Voltage

230VAC

Voltage Range (AC Mode)

200V~253V

Voltage Range (Batt. Mode)

230±6%

230V±3%

Frequency Range

(50/60Hz)±0.5%

Socket Q'ty (Backup+Surge)

IEC320-C13x2 or Customized by customer requirement

IEC 320 C14*8PCS ;IEC C320 C20*1PCS

Terminal block

IEC 320 C14*8pcs + Terminal block

Overload Protection

Overload Protection (AC Mode)

>120% 1min S/D

Alarm (Fuse or C.B Protection)

Overload Protection (Batt Mode)

1>120%->15Sec S/D, >140%->immed UPS Off.

110~140%->20Sec, >140%->5Sec.

Battery

Volatge

12VDC

24VDC

36VDC

24VDC

48V

Quantity

N/C

12V7AH*1PCS

N/C

12V/7AH*2pcs

N/C

12V/9AH*2pcs

N/C

12V7AH*4PCS

N/C

12V12AH*4PCS

N/C

12V12AH * 12PCS

Cold Start (DC Start)

Yes

Hot Replacement

Yes

Charger Current

10A max

1.5Amax

15Amax

1.5Amax

20A max

1.5Amax

20AMAX

30A MAX

30AMAX

5Amax

Charger Over Protection

Yes

Charging When UPS off

Yes

Data Line

Network Protection(Optional)

N/C

RJ45 (1 in/1 out)

N/C

Communication

Intelligent Interface

RS232 OR USB

SNMP slot

Optional

Display

LED Status

Line,Batt Mode/charging,Overload,Fault

Line,Batt Mode/charging,Overload/Fault;battery capacity; load size

Line/Batt Mode,AVR ,Battery cabacity ;Load size;Overload,Fault,Batt Replacement

LCD (Optional)

O/P voltage ,Input voltage and frequence;battery capacity ;Load size.

O/P voltage ,Input voltage and frequence;battery capacity ;Load size.Model

Conformance

Safety & EMC Approved

CE/TUV/FCC

Physicial

Dimension(DxWxH,mm)

122*193*360

150*220*390

455x430x135(mm)

420*190*335(mm)

540*340*710(mm)

Net Weight

6.5kg

8.5kg

9.5kg

13kg

11kg

18KG

28KG

21.5KG

34.5KG

38.25KG

60KG

102KG

Ambient

Temperature

0~45°c

Related Humidity

10%~90%(no condensation)

Altitude

1500m

L for long backup time,S for standard backup time

Specifications subject to change without prior notice.
