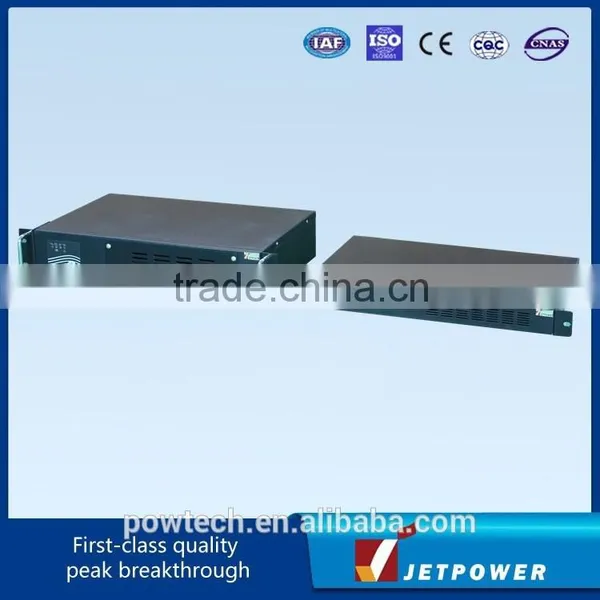

600VA Single Phase Line Interactive UPS Long Backup Time Machine

Name: 600VA Single Phase Line Interactive UPS Long Backup Time Machine
Brand: JETPOWER
SKU: 129450895

US$ 70 - 98 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

JETPOWER

Model Number:

SMART-600L

Qingdao Powtech Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name JETPOWER

Model Number SMART-600L

Phase Single Phase

Protection Other, Data line surge

Weight 8kg

Output Voltage 115/230VAC

Type Line Interactive

Application Telecommunications

Single phase line interactive UPS with AVR (500-1000VA) CE,TUV,FCC Certificated,true sine wave

Detailed Images

Product Description

Main features:

1.Compact 1U or 2U design (1U for 500 ~800VA, 2U for 600~1000VA)

2.Provides line-interactive design and true sine wave output

3.Microprocessor control guarantees high reliability

4.Built-in Boost and Buck AVR to stabilize input voltage

5.User-Replaceable hot swappable battery design & cold startup capability

6.Enable to extend runtime with scalable external battery pack (inbuilt 10A battery charger)

7.Fully protection for overload, short-circuit, overheat and battery over discharge protection

8.RS232 /USB communication port

9.SNMP Card SLOT available

Technical data sheet

Smart 600-1000VA,super smart 500-800VA

Model		Smart 600	Smart 600L	Smart 1000	Smart 1000L	Super SMART 500	Super SMART 800
Capacity		600VA / 420W	600VA / 420W	1000VA / 700W	1000VA / 700W	500VA / 300W	800VA / 500W
Input	Nominal Voltage	115 or 230Vac
	Voltage Range	72-144V/145-275V
	Frequency Range	60Hz->115V/50Hz->230V±6Hz
	Power Line Surge	1482/476 Joules				1482/320 Joules
Output	Nominal Voltage	115/230Vac
	Voltage Range (AC Mode)	100~127V/200~253V (+10~-13%)
	Voltage Range (Batt. Mode)	115/230v±6%
	Frequency Stability	50/60Hz +/- 0.5%
	Transfer Time	< 4ms (typical)
Overload	Protection (AC Mode)	100%~120% 1min S/D
	Protection (Batt Mode)	100%~ 120%->25Sec S/D, >120%->immed UPS Off.
Battery	Battery voltage	12VDC	12VDC	24VDC	24VDC	12VDC	12VDC
	Battery Capacity	12V/7AH*1	NC	12V/7AH*2	NC	6V/7AH*2	6V/9AH*2
	External Battery	No	Yes	No	Yes	No
	DC Cold Start	Yes
	Built-In Charger	1A Max.	10A Max.	1A Max.	10A Max.	1A Max.
	Charger Over Protection	Yes
	Charging When UPS off	Yes
	Microprocessor Control	Yes
Communication	Port	RS232/USB
	Monitoring Software	UPSilon2000
	SNMP Card (optional)	DP801 Slot
Display	LED	4 LEDs on Front Panel
	LED Status	Line, Batt Mode/charger, Overload/Fault
	LCD	option
Environment	Temperature	0-40 degree C
	Humidity	3000 Meters max Elevation 10-95%
	Audible Noise	Less than 45dBA (at 1M)
Physical	Dimension(DWH), mm	28043089	28043089	28043089	28043089	30043044	35043044
	Net Weight (Kg)	9.6 kg	8kg	12.4kg	9kg	9.6kgs	12.4kgs
