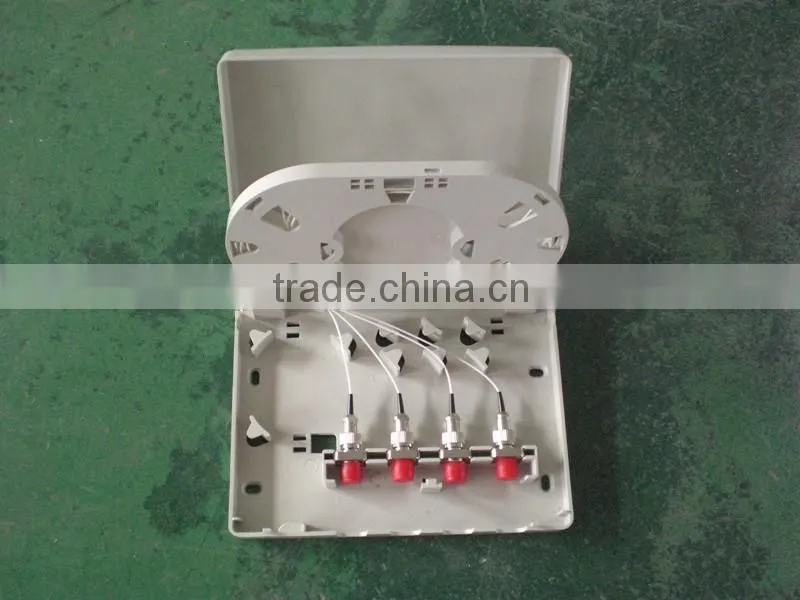

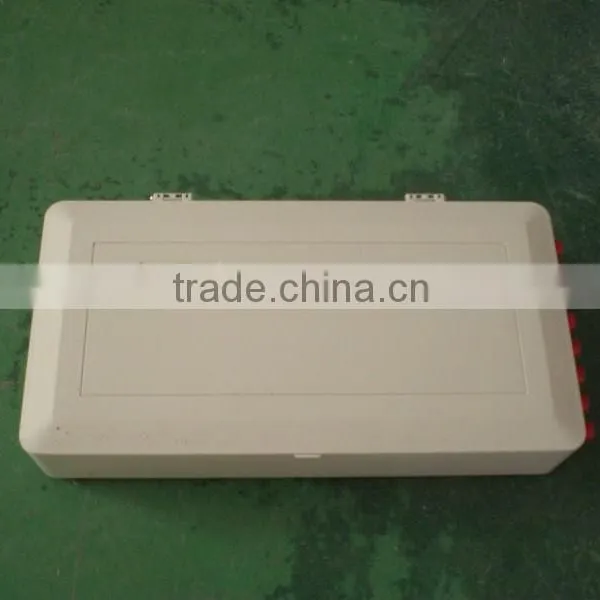

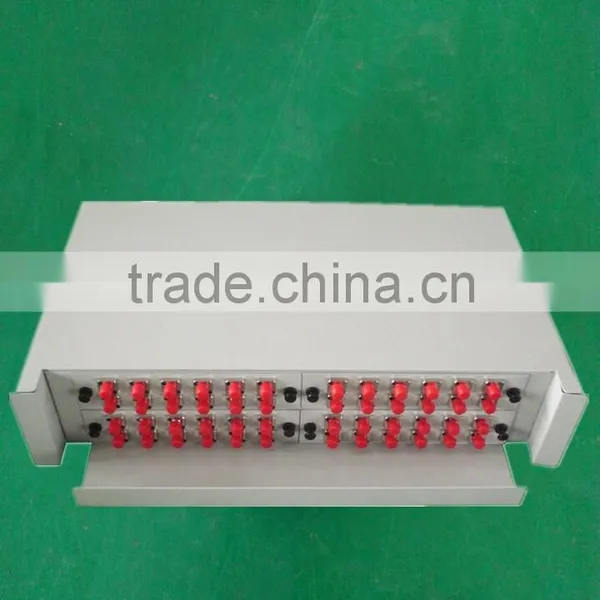

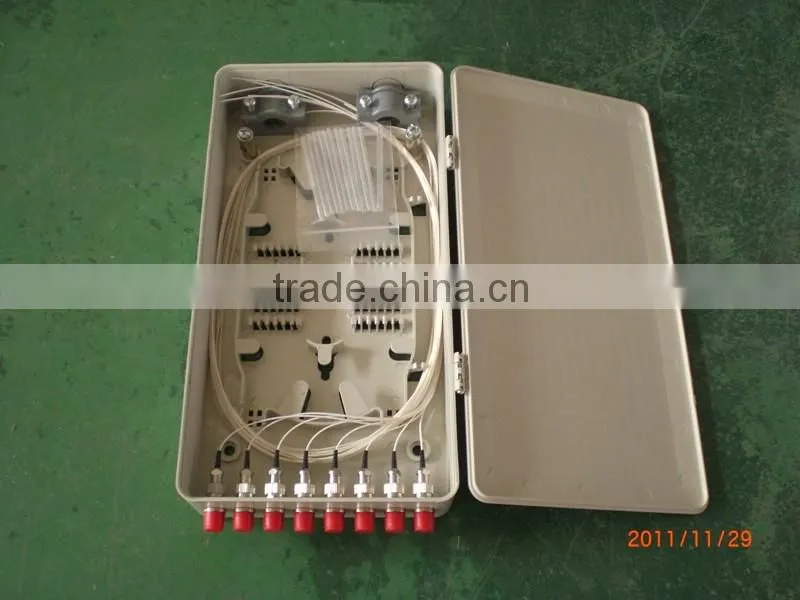

Wall mount ODF with 48 fibers/48 Fibers optical distribution frame
Wall mount ODF / Fibers optical distribution frame
Main Features:
Terminal box is used as the connection equipment of the fiber termination in the aerial optical cable engineering.It can store the connector of optical cable and its terminal cable and protect them form outside enviroment.
Technical data sheet:
Junction module qty and capacity:1/12fiber
Distribution module:
Module quantity:1pcs
Connector type:FC/UPC
Polish of connector:SM Ultra polish
Connector insertion loss<0.15dB
Connector discrete reflectance:55dB
Pigtail qty:12pcs/1.5m
Number of puttings to Adapter:≥200times
Operation temperature:-10-70°c
Material:Mentallic
Access type:Front side
| Model | Dimension | Fiber capacity | Weight(kg) | Adapter type | Rack size |
| ODF-12 | 485x285x45 | 12 | 6 | FC-UPC | 19"/1U |
| ODF-24 | 485x285x45 | 24 | 6 | FC-UPC | 19"/1U |
| ODF-36 | 485x285x90 | 36 | 10 | FC-UPC | 19"/2U |
| ODF-48 | 485x285x90 | 48 | 10 | FC-UPC | 19"/2U |
| ODF-72 | 485x285x135 | 72 | 10 | FC-UPC | 19"/3U |
| ODF-96 | 485x285x180 | 96 | 10 | FC-UPC | 19"/4U |
1.Excellent quality
2.Favoured price
3.Professional after-sales service
4.Experienced workers team
5.ADSS/OPGW cable,hardware ,cable fittings leading manufacturer from China
6.Customized
