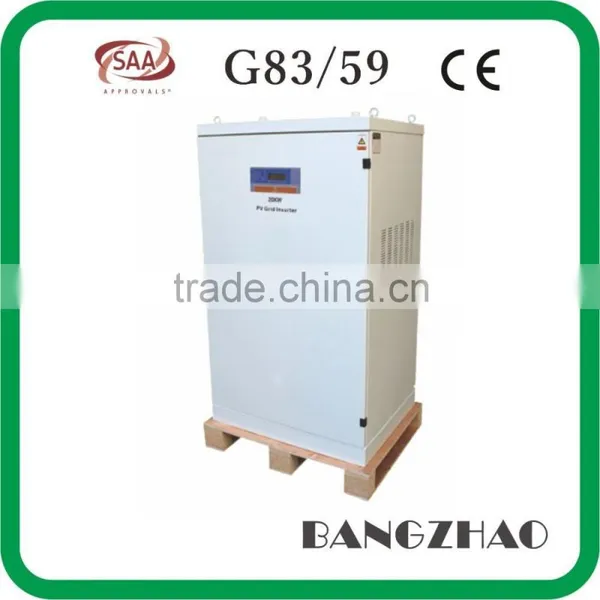

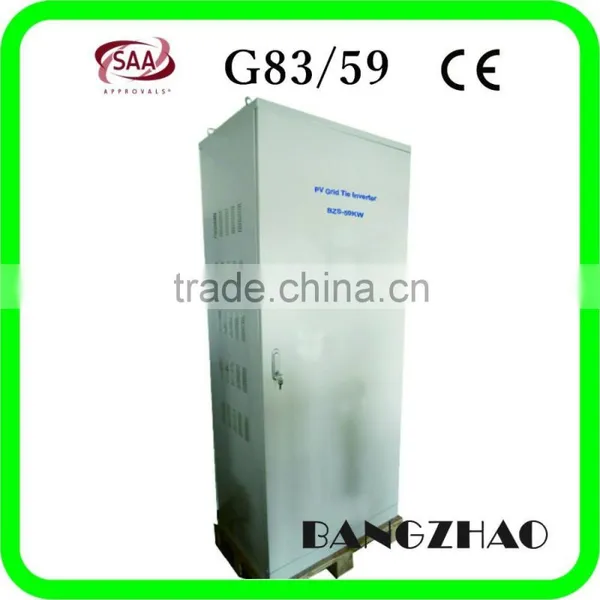

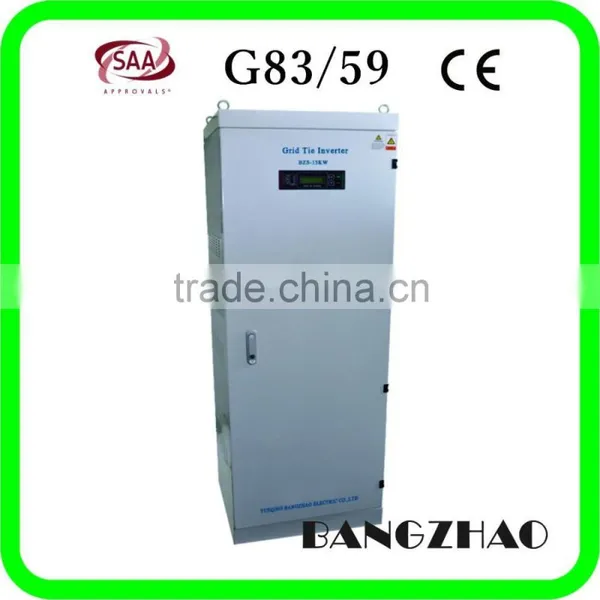

MW power plant power industry application solar pure sine wave inverter 50kw
Using the fifth generation lntellingent Power Module from Mitsubishi,
Improve the system efficiency higher
High conversion efficiency
Advanced technology for maximum power point tracking(MPPT)
(>97%)MPPT efficiency
Wide input voltage range
High reliability due to compltte protection function
Powerful communication interfaces
Easy operation and installation
Easy-to-set multilingual LCD display
Adjustable protection / operation parameters
Model |
BZS 50KW |
|
|
DC Input |
MPPT Voltage Range |
DC200~820V |
Recommend PV Array |
600V |
|
Control System |
MPPT |
|
|
AC Output |
Output Power |
50KW |
Rate voltage |
AC380V |
|
voltage range |
AC 342 ~ 418 V |
|
Normal Grid Frequency |
50/60Hz(Grid frequency) |
|
Phases |
3 phase 4 wire |
|
Power Factor |
>0.95 |
|
Current THD |
At rated power and in the sine wave <5% |
|
Control System |
PWM |
|
Anti-islanding |
≤0.5 sec |
|
Output Overload |
100% |
|
Max. Efficiency |
97% |
|
Euro Efficiency |
96.4% |
|
|
Structure |
Protection Class |
IP20 |
Cooling system |
Natural cooling |
|
Noise |
<60dB |
|
Data Interfaces |
External RS232C/RS485 |
|
Web Module( Option) |
RS232C to TCP/IP |
|
Display |
LCD |
|
Dimensions(W*H*D) |
650*1400*750mm |
|
Weight |
360kgs |
|
|
Protection |
Inverter |
Input overvoltage, output short circuit, overheat, output DC component. |
Grid |
Anti-islanding, over/under voltage of grid, over/under frequency of grid. |
|
|
Environment |
Environment |
No corrosion gas, flammable gas, oil mist, dust etc. |
Operation temperature |
-10℃~40℃(50℃) |
|
Stored temperature |
-20℃~65℃ |
|
Relative humidity |
0~100% (Do not wet with dew) |
|
