220VDC Inverter With Output Isolation Transformer

220VDC Inverter With Output Isolation Transformer thumbnail-1
220VDC Inverter With Output Isolation Transformer thumbnail-2
220VDC Inverter With Output Isolation Transformer thumbnail-3
220VDC Inverter With Output Isolation Transformer thumbnail-4
220VDC Inverter With Output Isolation Transformer thumbnail-5
220VDC Inverter With Output Isolation Transformer photo-1
220VDC Inverter With Output Isolation Transformer photo-2
220VDC Inverter With Output Isolation Transformer photo-3
220VDC Inverter With Output Isolation Transformer photo-4
220VDC Inverter With Output Isolation Transformer photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
ND-6K
Contact Supplier Request Quote Chat Now
Qingdao Powtech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JETPOWER
Model Number ND-6K
Output Power 1 - 200KW
Output Type Single
Size 290*590*680mm
Weight 50kg
Input Voltage 220VDC
Output Voltage 220VAC
Type DC/AC Inverters
Output Frequency 50HZ
Output Current 135A

6K 220VDC true sine wave Electric power Inverter single phase with output Isolation transformer

 220VDC Inverter with output Isolation transformer220VDC Inverter with output Isolation transformer220VDC Inverter with output Isolation transformer220VDC Inverter with output Isolation transformer

Product Description

Features:

1.Advanced IGBT inverted  technology

2.Multiple CPU intelligent control

3.Multiple protection function of over-voltage,short circuit,over-terperature on Input

4.Special Industrial design to ensure the safety in worse environment

5.Reliable,filtering and stable sine wave output

6.Static bypass switch

7.With output Isolation transformer



220VDC Inverter 1output

Technical data sheet:

Model ND 220 ND220 ND220 ND220 ND220 ND220 ND220 ND220 ND 220 ND 220
-1010 -1020 -1030 -1050 -1100 -1120 -1150 -1200 -1300 -1400
DC input Rated DC input voltage (VDC) 220
Rated DC input current (A) 5 10 16.3 25 49 59 75 99 148 198
DC input voltage range (VDC) 180~300VDC
Bypass Utility AC input voltage (VAC) 220VAC±20%, 50Hz±10%
Utility Rated AC input voltage (A) 4.5 9 13.5 22.7 45 54.5 68.5 91 136 182
Input Bypass transfer time (ms) ≤4
AC output Rated capacity (KVA) 1 2 3 5 10 12 15 20 30 40
Rated output power (KW) 0.8 1.6 2.4 4 8 10 12 16 24 32
Rated output voltage and frequency 220VAC, 50HZ
Rated output current (A) 3.65 7.3 11 18.2 36.4 45.5 54.5 72.8 109 145
Output voltage regulation (Vac) 220±2%
Output frequency regulation(Hz) 50±1%
THD ≤3%
Dynamic response  (load 0←→100%) 5%
Power factor 0.8
Overload 150%,60s
Crest factor 3:01
Efficiency at rated load 90% 90%
Environment Insulation strength (between input & output)  1500VAC, 1min
Noise (1m) ≤50dB
Temperature -10℃~+50℃
Humidity 0~90%, no condensation
Altitude (m) ≤2000
Sizes Rack tye (W* D * H, mm) 440×450×177   440×450×177   440×450×177   440×500×221.5  330×640×885 380×680×935   410×720×935   490×985×1205
Weight (kg) 30 50 55 70 122 135 158 175 270 450
Protection DC input reversely protection, DC input under voltage, overload, short circuit, over temperature

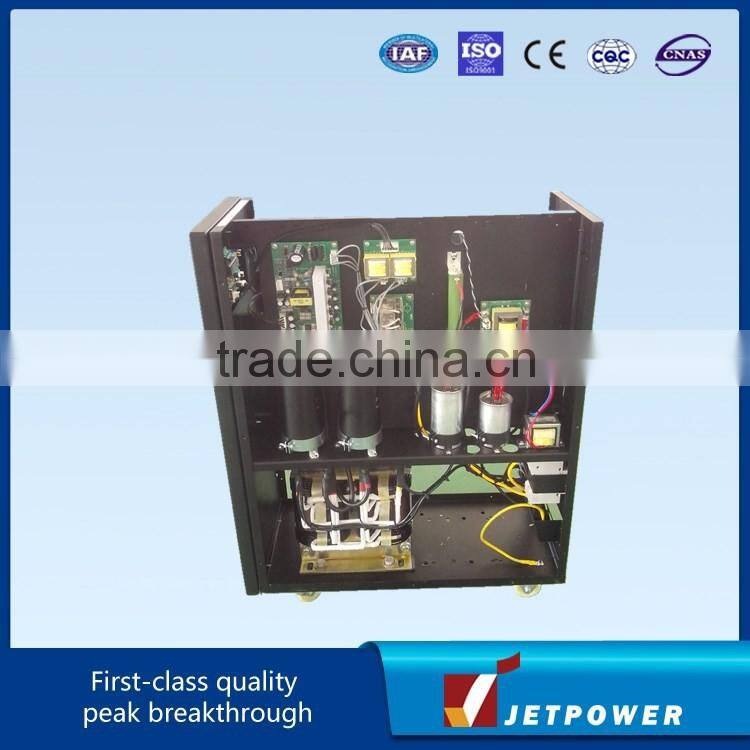

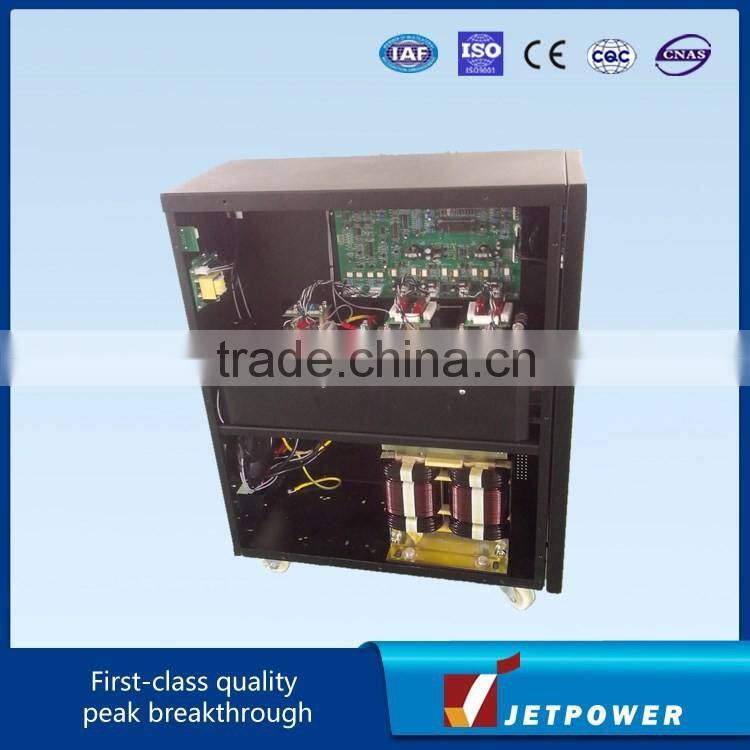

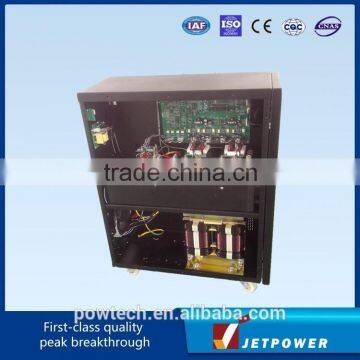

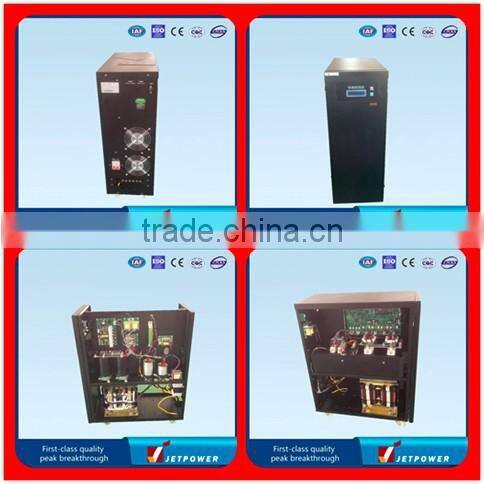

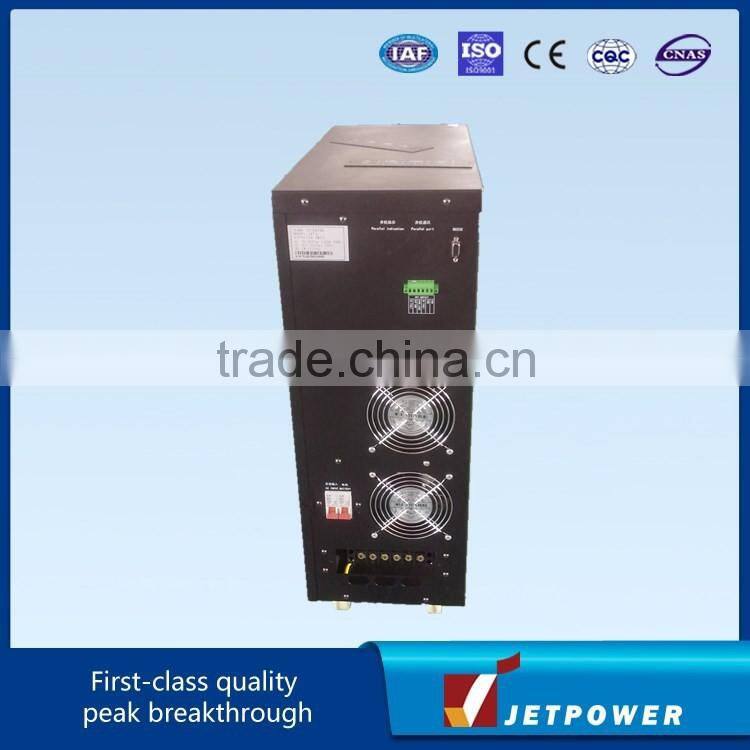

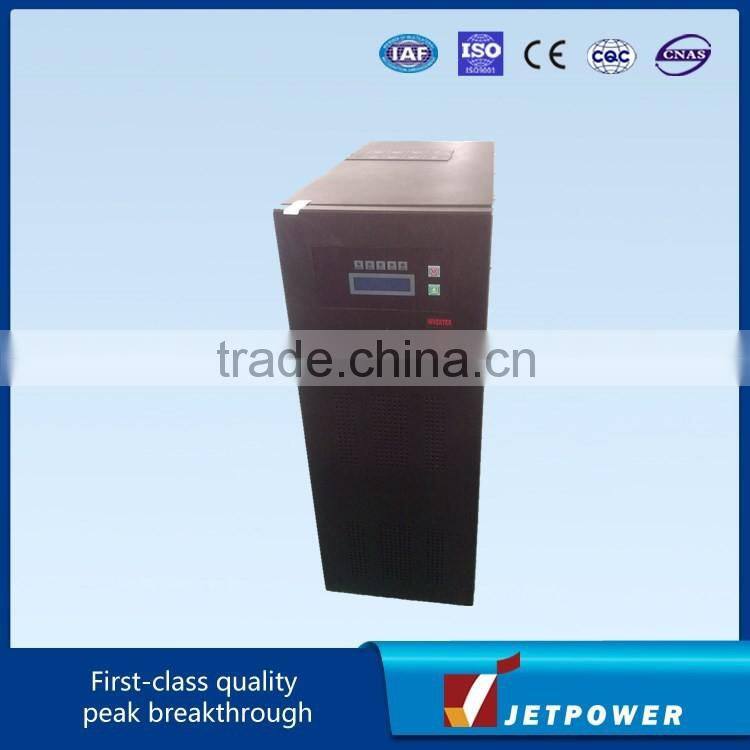

Detailed Images

 220VDC Inverter with output Isolation transformer

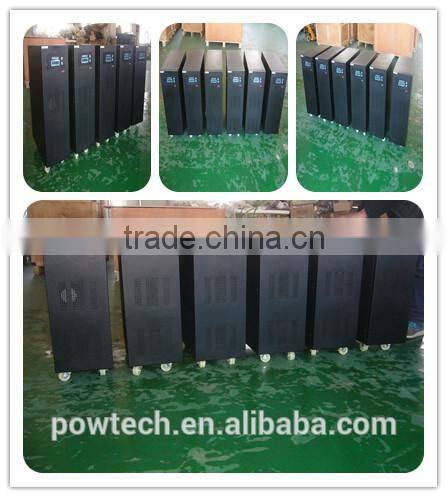

Production  line

 220VDC Inverter with output Isolation transformer

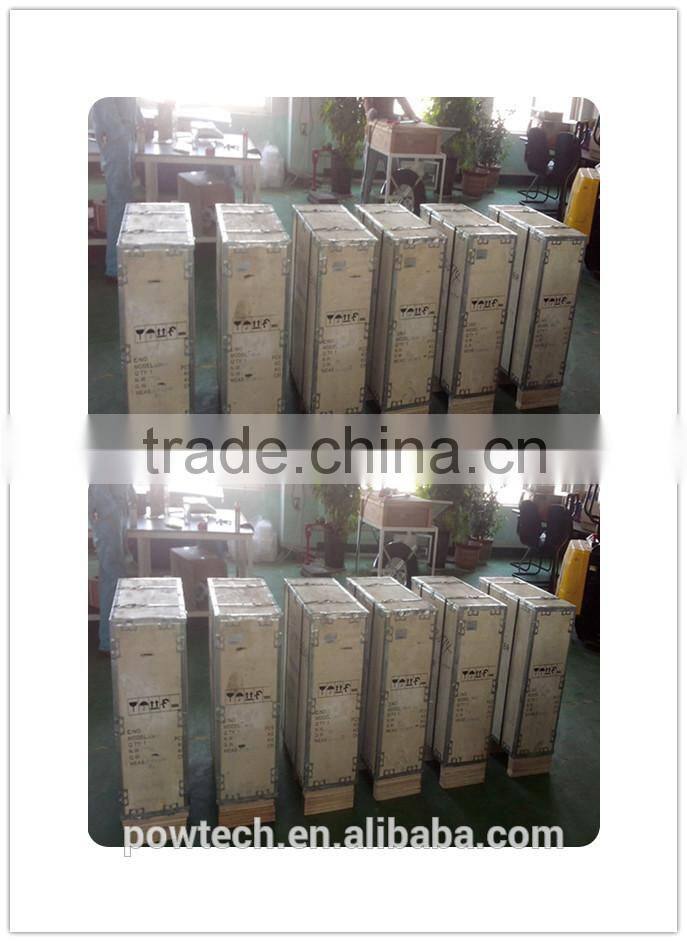

Packaging & Shipping

 220VDC Inverter with output Isolation transformer220VDC Inverter with output Isolation transformer



Certifications

 220VDC Inverter with output Isolation transformer220VDC Inverter with output Isolation transformer220VDC Inverter with output Isolation transformer

why choose us

1.Excellent quality

2.Favoured price

3.Professional after-sales service

4.Experienced workers team

5.Online UPS,line interactive UPS and Inverters leading manufacturer in China

6.Customized
