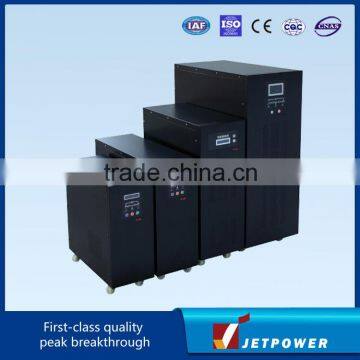

DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter thumbnail-1
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter thumbnail-2
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter thumbnail-3
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter thumbnail-4
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter thumbnail-5

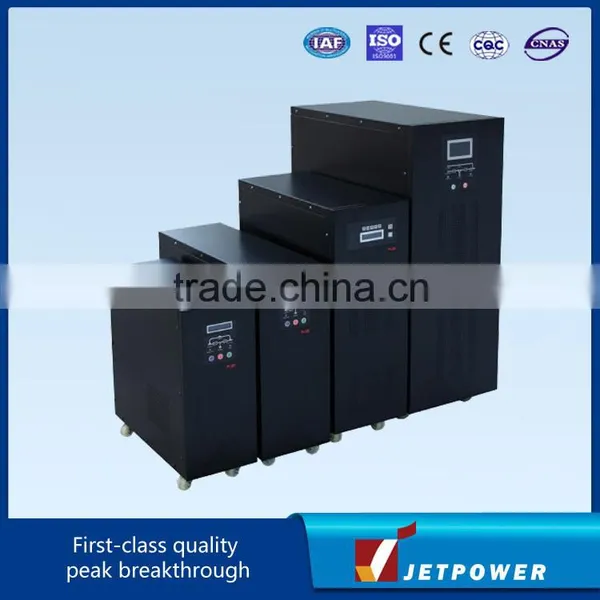

DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter photo-1
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter photo-2
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter photo-3
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter photo-4
DC to AC Inverter 30K 24KW 1 Phase / 220V Input 220V Output Inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V Power Inverter photo-5
US$ 1,000 - 1,400 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JETPOWER
Model Number:
ND220-1300
Contact Supplier Request Quote Chat Now
Qingdao Powtech Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JETPOWER
Model Number ND220-1300
Output Power 1 - 200KW
Output Type Single
Size 330*640*885(mm)
Weight 270
Input Voltage 220VDC
Output Voltage 220VAC
Type DC/AC Inverters
Output Frequency 50/60Hz
Output Current 109A

DC to AC inverter 30K 24KW 1 phase / 220V input 220V output inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V power inverter

Product Description

Features:

1.Advance IGBT inverted technology

2.Multiple CPU intelligent control

3.Multiple protection function of over-voltage ,short circuit, over-temperature on input

4.Special industrial design to ensure the safety in worse environment

5.Reliable, filtering and stable sine wave output

6.Static bypass switch

7.With output isolation transformer

Tech. specs



220VDC/AC inverter (1 phase output)
Model ND   220 ND220 ND220 ND220 ND220 ND220 ND220 ND220 ND 220 ND 220
-1010 -1020 -1030 -1050 -1100 -1120 -1150 -1200 -1300 -1400
DC input Rated   DC input voltage (VDC) 220
Rated DC input current (A) 5 10 16.3 25 49 59 75 99 148 198
DC input voltage range (VDC) 180~300Vdc
Bypass Utility   AC input voltage (VAC) 220Vac±20%, 50Hz±10%
Utility Rated   AC input voltage (A) 4.5 9 13.5 22.7 45 54.5 68.5 91 136 182
input Bypass   transfer time (ms) ≤4
AC output Rated   capacity (KVA) 1 2 3 5 10 12 15 20 30 40
Rated output power (KW) 0.8 1.6 2.4 4 8 10 12 16 24 32
Rated output voltage and frequency 220VAC, 50HZ
Rated output current (A) 3.65 7.3 11 18.2 36.4 45.5 54.5 72.8 109 145
Output voltage regulation (Vac) 220±2%
Output frequency regulation(Hz) 50±1%
THD ≤3%
Dynamic response (load 0←→100%) 5%
Power factor 0.8
Overload 150%,60s
Crest factor 03:01
Efficiency at rated load 90% 90%
Environment Insulation   strength (between input & output) 1500VAC, 1min
Noise (1m) ≤50dB
Temperature -10℃~+50℃
Humidity 0~90%, no condensation
Altitude (m) ≤2000
Sizes Rack   tye (W* D * H, mm) 440×450×177  440×450×177  440×450×177  440×500×221.5 330×640×885 380×680×935  410×720×935  490×985×1205
Weight   (kg) 30 50 55 70 122 135 158 175 270 450
Protection DC input reversely protection, DC input under   voltage, overload, short circuit, over temperature



Certifications

 DC to AC inverter 30K 24KW 1 phase / 220V input 220V output inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V power inverter

 DC to AC inverter 30K 24KW 1 phase / 220V input 220V output inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V power inverter

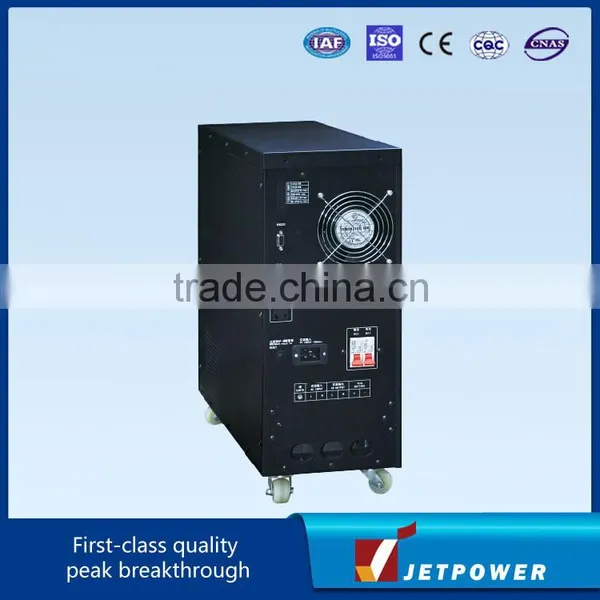

Detailed Images

 DC to AC inverter 30K 24KW 1 phase / 220V input 220V output inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V power inverter

Packaging

 DC to AC inverter 30K 24KW 1 phase / 220V input 220V output inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V power inverter

Shipping

 DC to AC inverter 30K 24KW 1 phase / 220V input 220V output inverter(1K,2K,3K,5K,10K,12K,15K,20K,30K,40K)/220V power inverter

Why choose us

1. Major manufacturer,Competitive price, good quality and delivery in time



2. ISO9001:2008 certification



3. Many years' production experience

Our Services

1. Abroad site installation & training available any time



2. Best price compared to same configuration



3. Customized product available



4. Good after-sales response



5. Small order accepted



6. Excellent workmanship
