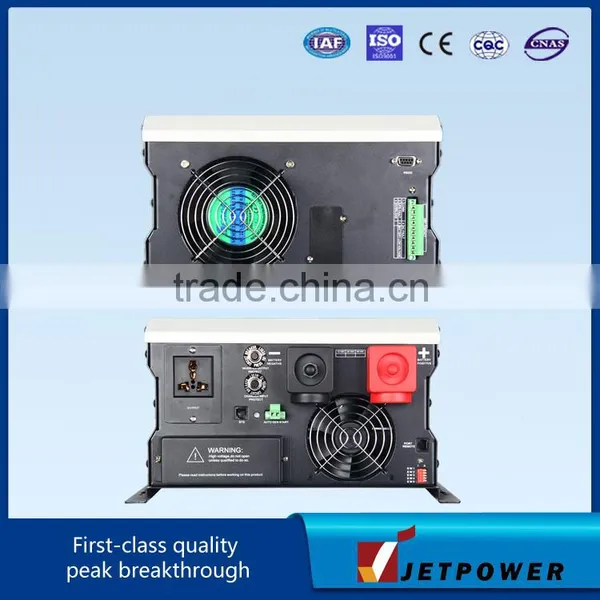

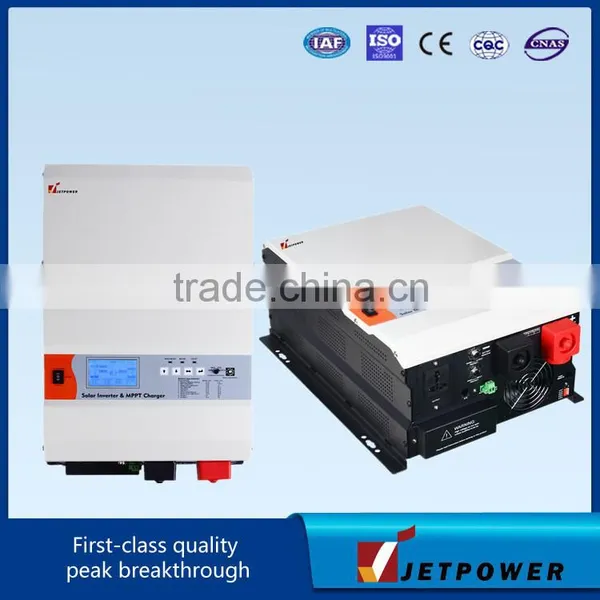

1kw Low Frequency Wall Mounted Integrated Solar Power Inverter / Solar Inverter

Model

1KW

1.5KW

2KW

3KW

4KW

5KW

6KW

8KW

10KW

12KW

Input Wave Form

Sine Wave (Utility or Generator)

Nominal Voltage

120VAC (option)   230VAC

Low Voltage Trip

90v+/-4% &184v/154v+/-4%

Low Voltage Reengage

100v+/-4% &194v/164v+/-4%

Hight Voltage Trip

140v+/-4% &253v+/-4%

Hight Voltage Reengage

135v+/-4% &243v+/-4%

Nominal Input Frequency

50Hz/60Hz (Auto Detection)

Low Frequency Trip

47Hz for 50Hz, 57Hz for 60Hz

Hight Frequency Trip

55Hz for 50Hz, 65Hz for 60Hz

Output Wave Form

(Bypass Mode)  Sine Wave (Utility or Generator)

Overload Protection

Circuit Breaker

Short Circuit Protection

Circuit Breaker

Effeciency On Line Transfer Mode

>95%

Line Transfer Time

10ms Tpical

Bypass Without Battery Connected

Yes

Inverter Output

Output Wave Form

Pure Sine Wave

Output Continuos Power Watts

1000

1500

2000

3000

4000

5000

6000

8000

10000

12000

Output Continuos Power VA

1000

1500

2000

3000

4000

5000

6000

8000

10000

12000

Power Factor

0.9-1.0

Nominal Output Voltage rms

120VAC (option)   230VAC

Output Voltage Regulation

+/- 10% rms

Output Frequency

50Hz+/-0.3Hz or 60Hz +/-0.3Hz

Short Circuit Protection

Yes, Fault After 1 secs

Inverter Input

Nominal Input Voltage

12V/24V/48V

96V

Minimum Start Voltage

10V/20V/40V

80V

Low Battery Alarm

10.5V/21V/42V

84V

Low Battery Trip

10V/20V/40V

80V

High Voltage Alarm

16V/32V/64V

128V

Charger

Output Voltage

Dependent On Battery Type

Charge Current

10-85A Max.

35A Max.

45A Max

50A Max.

Battery Initial Voltage for Start Up

0-15.7v for 12v(*2 for24v, *4 for 48v)

Over Charge Protection

15.7v for 12v(*2 for24v, *4 for 48v)

Solar Charger

MPPT Range @Operating Voltage

15VDC~150VDC/25VDC~150VDC/60VDC~150VDC

100VDC~300VDC

Maximum PV Array Open Circuit Voltage

150VDC

300VDC

Maximum  Charging Current

60A

40A

Maximum Efficiency

>96%

Standby Power Consumption

2W
