ADSS Fiber Optic Cable / All Dielectric Self-support Telecommunication Cable

FOB Price

US$ 500 - 600 / Kilometer

1 Kilometer(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	OPTELEC
Model Number	ADSS-AT-24B1-20KN

Product Description

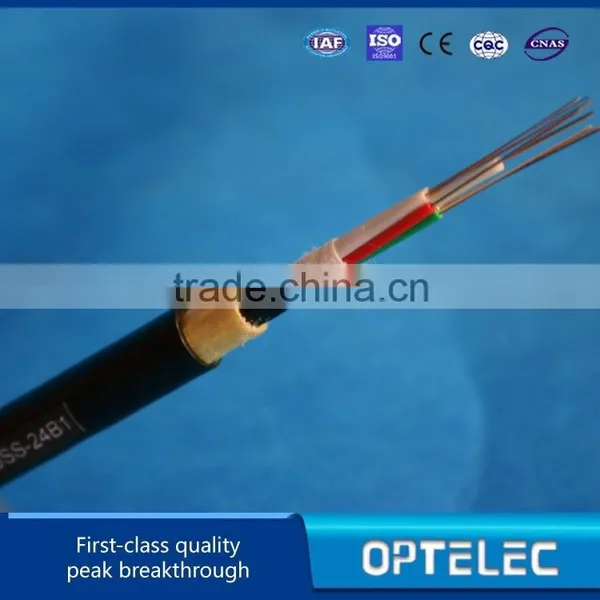

ADSS fiber optic cable / All Dielectric Self-support Telecommunication Cable

Product Description

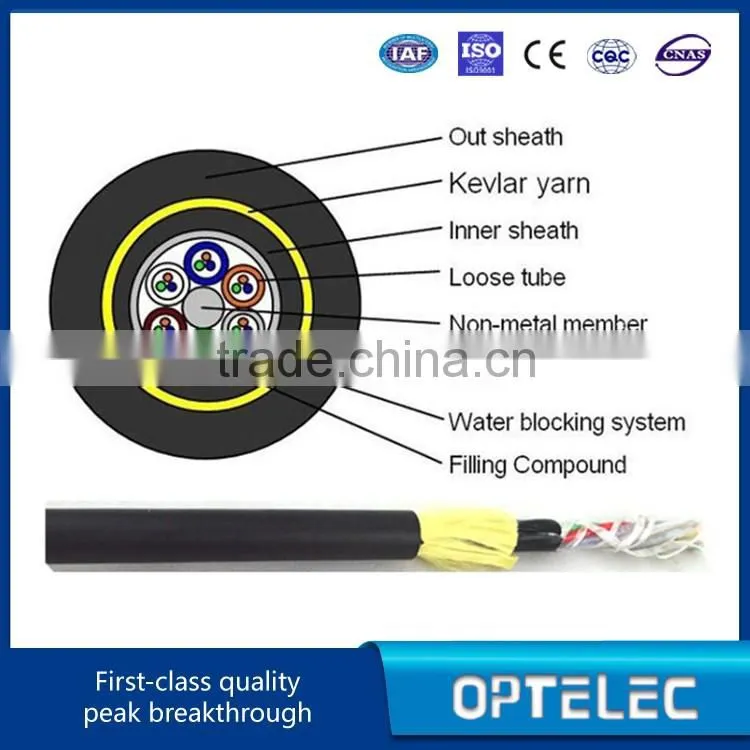

ADSS cable is loose tube stranded. Fibers, 250µm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath. .

Characteristics:

1. Can be installed without shutting off the power

2. Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25kV

3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

4.Large span lengths and the largest span is over 1000m

5.Good performance of tensile strength and temperature

6.The design life span is over 30 years

Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Specifications:

Fiber Color Code

No	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Slate	White
No	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Model:

NO	Cable Type( fiber count≤24)	Span length(m) for reference
1	ADSS-PE(AT)-mB1(nB4)-3KN	100
2	ADSS-PE(AT)-mB1(nB4)-5KN	200
3	ADSS-PE(AT)-mB1(nB4)-7KN	300
4	ADSS-PE(AT)-mB1(nB4)-9KN	400
5	ADSS-PE(AT)-mB1(nB4)-11KN	500
6	ADSS-PE(AT)-mB1(nB4)-12KN	600
7	ADSS-PE(AT)-mB1(nB4)-14KN	700
8	ADSS-PE(AT)-mB1(nB4)-16KN	800
9	ADSS-PE(AT)-mB1(nB4)-18KN	900
10	ADSS-PE(AT)-mB1(nB4)-20KN	1000

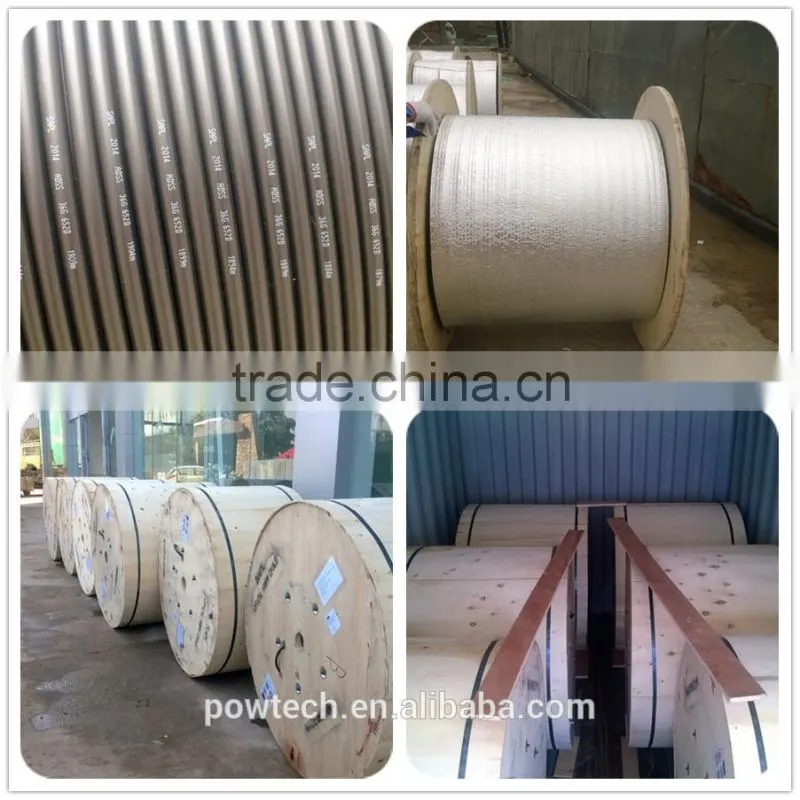

Packaging

ADSS install

Certifications

Why choose us

1. Major manufacturer,Competitive price

2. ISO9001:2008 certification

3. 20 years' production experience

4. Turn-key solution for your transmission line

Our Services

1. Abroad site installation & training available any time

2. Best prices compared to same configuration

3. Customized product available

4. Good after-sale response

5. Small order accepted

6. Excellent workmanship
