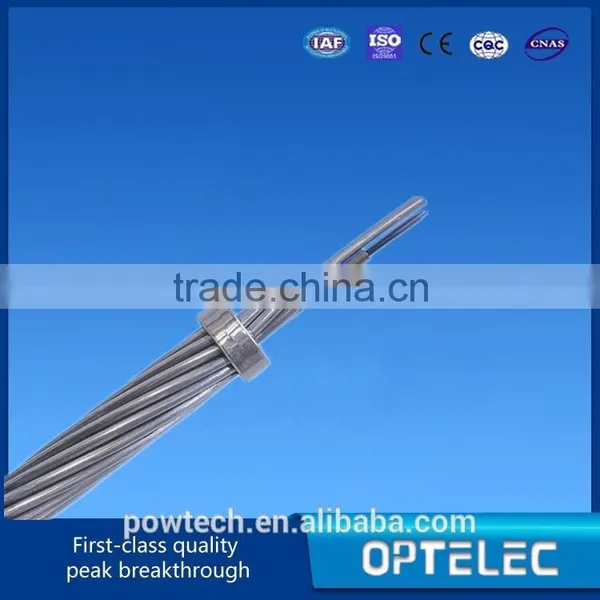

12 / 24 / 48 / 96 Cores Optical Fiber Composite Overhead Ground Wire OPGW cable
OPGW features:
1-Fiber core: 24fibers
2-Low attenuation coefficient and chromatic dispersion, insure cable's optics transmission charateristics
3- Proper design, precise fiber excess length control and distinct stranding process render the cable excellent mechanical and environmental characteristics
4- Anti-electromagnetism ability
5- Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.
OPGW application:
electric transmission line system
OPGW standard compliance
IEEE -1138, IEC60794-4-1, ITU-T G.652, ITU-T G.655, IEC60794-1, DL/T 788-2001, YD/T 980-2002
OPGW technical parameter:
According fiber cores, weather condition, RTS, short circuit current capacity, DC resistance, line voltage and etc.
OPGW Mechical characteristics:
Over all diameter (mm): 11
Unit weight (kg/km): 432
Supporting cross section (mm2): 64.4
Elasticity modulus (kN/m2): 142.1
Short circuit current capacity:28
Rated tensile strength (RTS):75.3
DC resistance (ohm/km): 1.04
