a) MITECH semiconductor laser marking machine adopts the most advanced semiconductor pump technology, small size, low energy consumption.
b)light model is good, marking a more sophisticated, replace lamp pumped laser marking machine marking a new generation of equipment, products canbe a long time high load, spot fine, big power, high efficiency, low energy consumption, maintenance-free
c)suitable for rally marked the products that require high precision high-speed or line marking.
Detail:
------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------
-
------------------------------------------------------------------------------------------------------------------------------------------
Parameters:
Model |
Optional Models |
||
Type |
MITECH-50A |
MITECH-75A |
MITECH-100A |
Laser Power |
50W |
75W |
100W |
Laser Wavelength |
1064nm |
1064nm |
1064nm |
Cooling System |
Water cooling |
Water cooling |
Water cooling |
Laser Repetition Frequency |
≤50KHz |
≤50KHz |
≤50KHz |
Marking Area |
110mm*110mm |
110mm*110mm |
110mm*110mm |
Optional Marking Area |
70mm*70mm 170mm*170mm 200mm*200mm |
||
Marking Depth |
0.3mm |
≤0.4mm |
≤0.5mm |
The depth is adjustable according to different materials. | |||
Linear Speed |
≤7000mm/s |
≤7000mm/s |
≤7000mm/s |
Min. Line Width |
0.02mm |
0.02mm |
0.02mm |
Min. Letter |
0.25mm |
0.25mm |
0.25mm |
Repeatable Accuracy |
±0.001mm |
±0.001mm |
±0.001mm |
Gross Power |
≤2.5KW |
≤2.8KW |
≤3.3KW |
Electricity Source |
220V/50Hz/15A |
220V/50Hz/20A |
220V/50Hz/25A |

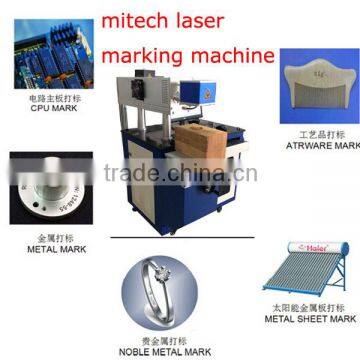

Application:
Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
Alloy and metal oxides: Anodized Aluminum Some non-metallic materials & Special surface treatment:silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing
ink,Plating,Spraying,Coating film,Electrical Engineering and Electrical part and component,Mobile (Cover,battery,keyboard, I Phone Case) ,Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft,Building materials,PVC pipe, Car motor car spare part, Insturment and meters and cutting tool, plastic case,aviation and aerospace, military product, hardware fitting and accessory, sanitary appliance, stationery,food and beverage, Medicine package and medical instrument, solar Pv industry
Package:Humidity-Proof Cloth Above Wooden Case, Multi-Layer Film Covered Machine Body, Oil Covered with Film on Machine Transmission, Steel Tubes On&Under Wooden Case.
Shipping: Safetly and saving by sea distribute our machine to our partners and customers
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
1.Technical support by phone, e-mail or MSN around the clock
2.Friendly English version manual and operation video CD disk
3.7-15 working days after down payment or full payment
4.Machine will be adjusted before it is delivered , operation disk/CD was included.
5.Our technician can give you remote guide online(Skype or MSN) if you have any question
6.Engineers available to service machinery overseas, seller and buyer discuss the charges
Aftersales service
1. The whole set of machine is guaranteed for one year, not including normal replacement of wearing parts.
2. 24 hour technical support by email or calling +086 18663797936
3. User-friendly English manual and Video CD for machine using and maintaining
MITECH is a professional CNC machinery manufacturer.We are well known for our superior quality and service in the field of engineering and manufacturing of CNC and Laser Equipment that includes: CNC Router, CNC Woodworking machine, CNC Advertising Router Machine, Stone CNC Router, Metal CNC Router,Cutting Plotter, Sign Plotter, Fiber Laser marking machine, CO2 Laser Cutting Machine, PVC Concave-convex Sign card Machine and so on.
Q1: How can I get the best machine for me?
Just tell me your work,we can according to your needs recommend the suitable one.
Q2: This is the first time I use this kind of machine, is it easy to operate?
The PDF introduction and sample video will be send to you with the machine,it's in detail ,if you still confused with some operate ,we can make a Specialized teaching video for you.
Q3: If the machine has problem in my place, how could I do?
We offer remote assistance in 24 hours ,ensure can solve your problem in time .Change damage parts for free during warranty.
Q4: This model is not suitable for me, do you have more models available?
Yes, we have much models about cnc machine ,and we have our own factory also can make Custom models if you need with good price.
