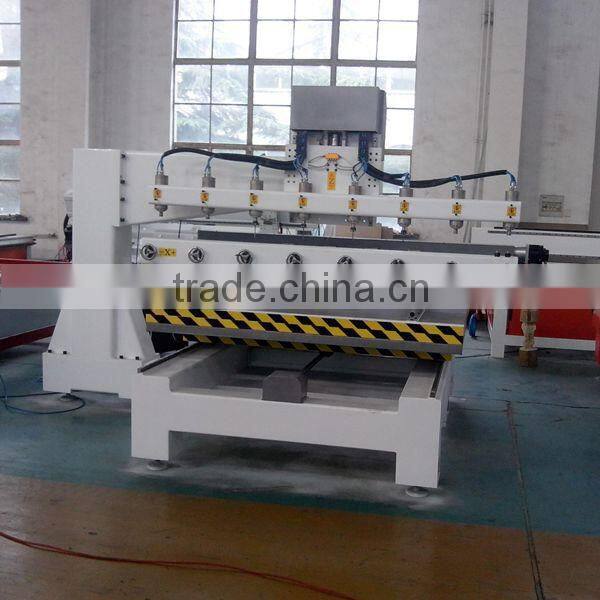

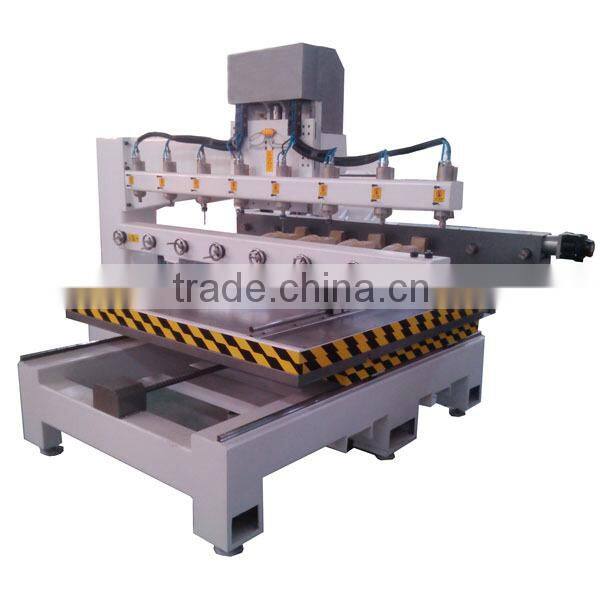

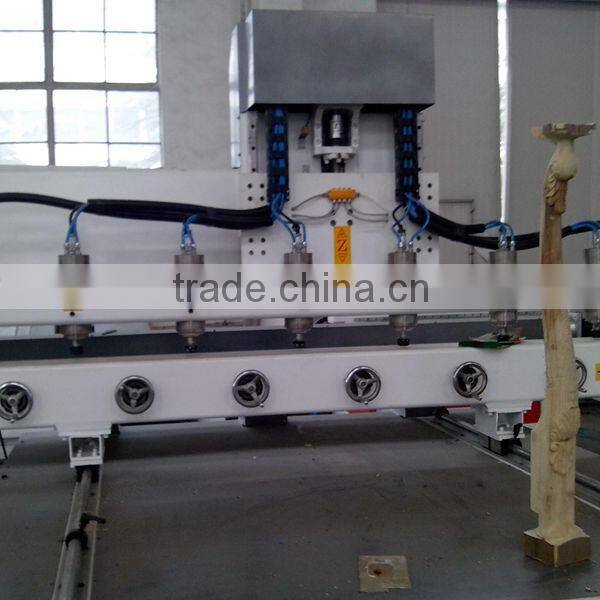

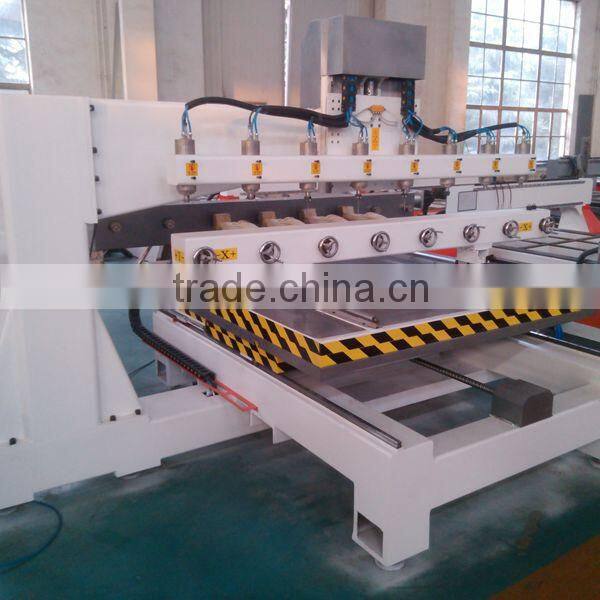

4 axis multi spindle cnc router wood MITECH 2415
Wood cnc router applications:
This machine is widely used for buddha,table legs,etc engraving .The machine structure of strong, large cutting force, high speed,suitable for processing large quantities of material.
Wood cnc router features:
1.Solid gantry,well structure of lathe bed,stable and high speed,high accuracy.
2.Highspeed water cooling spindle and high performance subdivision driver ensure
work stably for long time.
3.With easilylearned sofware,conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor.

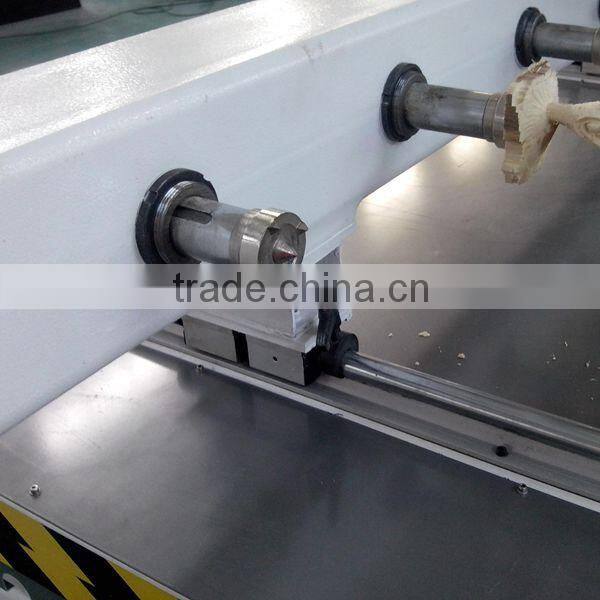

4.This model is specially for cylinder working,the diameter of cylinder is arrange 50mm to 250mm,the length is 100mm to 1500mm.

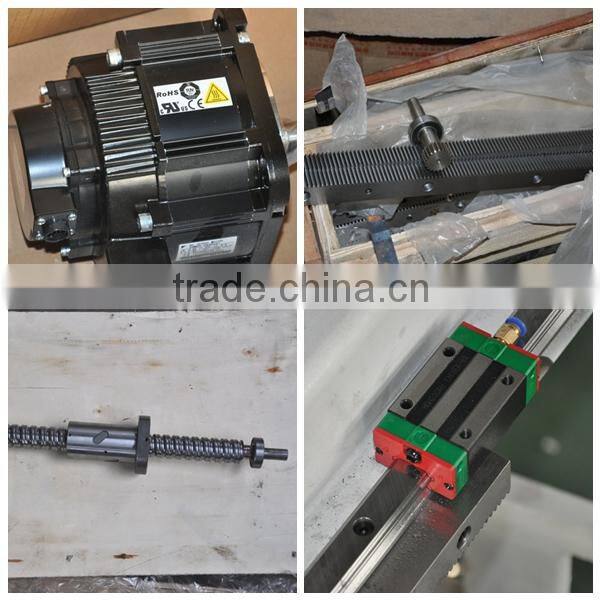

Wood cnc router parts:
Y-axis dual-motor drive,more power for movement.Rack and pinion transmission, which have such characteristics as high precision, fast speed and big strength.Imported square linear guide ways, which have figures such as high and long life.
------------------------------------------------------------------------------------------------------------------------------------------
Independent control cabinet more cleanly, convenient and safe.High-performance driven motor to ensure that the machines high speed and accuracy.Big Yako driver provide more power for motor,and Delta converter for Taiwan garantee the spindle have good work.
Wood cnc router parameter:
Machine model | MITECH2415-8R |
Working dimension | 2400*1500*300mm |
Spindle power | 2.2KW*8 |
Rotary axies size | diameter 200mm,lenth1500mm |
Spindle speed | 24000rpm |
Max travel speed | 30m/min |
Max working speed | 15m/min |
| X/Y structure | Hiwin square orbit from Taiwan, rack and pinion drive |
Z structure | Hiwin square orbit and ballscrew drive |
Votalge | AC 380V/220V-50Hz/60Hz |
Driving motor | Servo motor |
Controlling system | 4 axis Ncstudio / DSP handle / Syntec |

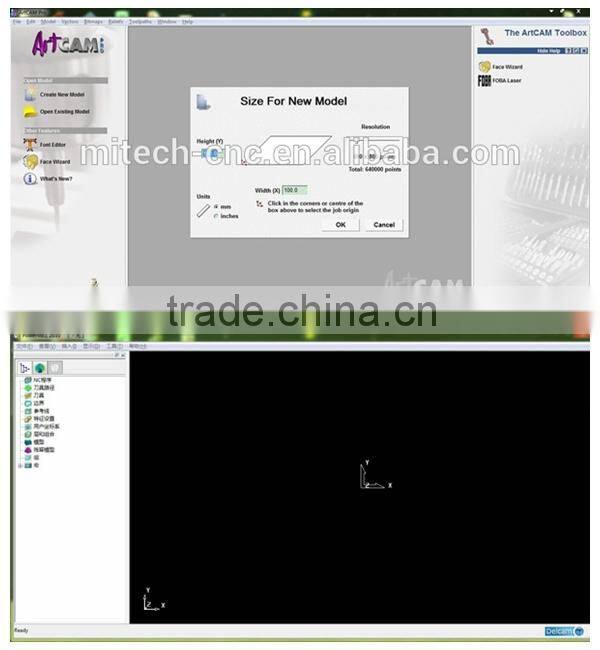

Software:
Along the cnc drouter machine with carved software,advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as UCANCAM, Type3, Artcam,Powermill).
Simple:
Package:Humidity-Proof Cloth Above Wooden Case, Multi-Layer Film Covered Machine Body, Oil Covered with Film on Machine Transmission, Steel Tubes On&Under Wooden Case.
Shipping: Safetly and saving by sea distribute our machine to our partners and customers
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
1. One year quality guaranty, the machine with main parts(excluding the consumables).shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
After-sale Service:
a) Technical support online service provided
b) Technical files service provided.
c) On-site training service provided.
d) Spare parts replacement and repair service provided.
MITECH is a professional CNC machinery manufacturer.We are well known for our superior quality and service in the field of engineering and manufacturing of CNC and Laser Equipment that includes: CNC Router, CNC Woodworking machine, CNC Advertising Router Machine, Stone CNC Router, Metal CNC Router,Cutting Plotter, Sign Plotter, CO2 Laser Engraver, CO2 Laser Cutting Machine, PVC Concave-convex Sign card Machine and so on.
