1300 Heavy Duty Wide Belt Floor Plywood Sanding Machine, Wire Brush Sanding Machine

1300 Heavy Duty Wide Belt Floor Plywood Sanding Machine, Wire Brush Sanding Machine photo-1
1300 Heavy Duty Wide Belt Floor Plywood Sanding Machine, Wire Brush Sanding Machine photo-2

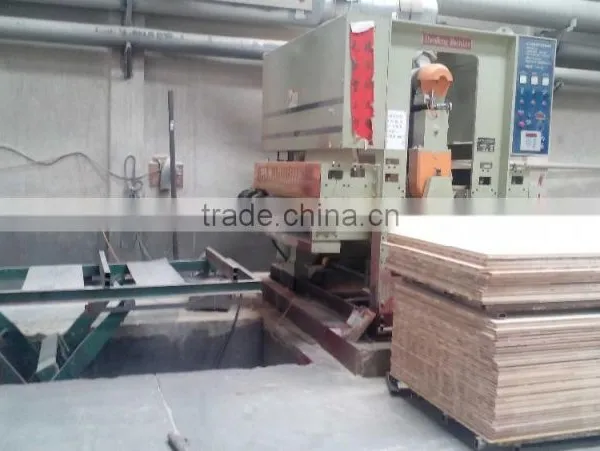

1300 Heavy Duty Wide Belt Floor Plywood Sanding Machine, Wire Brush Sanding Machine photo-3
1300 Heavy Duty Wide Belt Floor Plywood Sanding Machine, Wire Brush Sanding Machine photo-4
US$ 24,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JINLUN
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name JINLUN
Model Number 2113R
After-sales Service Provided Engineers available to service machinery overseas





Product Description



Vincent Wang

Skype: wzy0539

Whatsapp/viber+8615854986399



It can sand the following wood-based boards intensively or according to the required thickness:
Solid-wood jointing board,veneer board,flake board,fiber board, mdf board .etc.
1.The machine uses the overally welding frame tructure and the service year of machine is much longer.

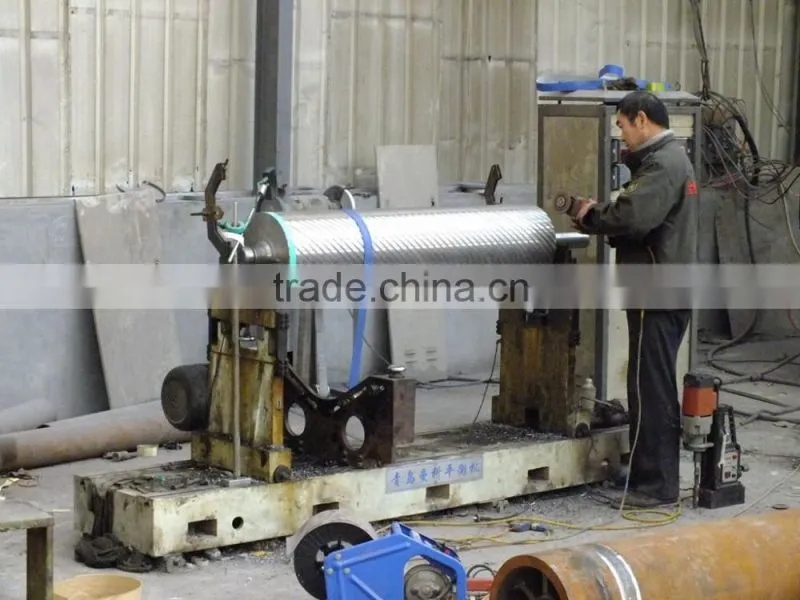

2.The bigger diameter of sanding rollers. after the accurate balancing, works efficiently and with great precison.
3.International advance electic parts ensures the great safty and save the labours.
Cross roller structure effectly improve the surface of board. resit the blockingof the head and end of board, better calibrating the overlapping parts of board.

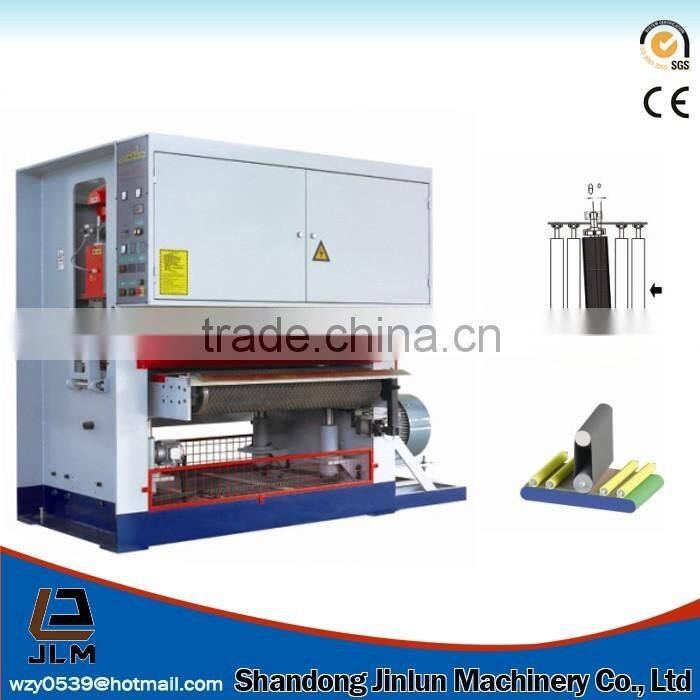

Double Head Wide Belt Sanding Machine for Polishing and Sanding
1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

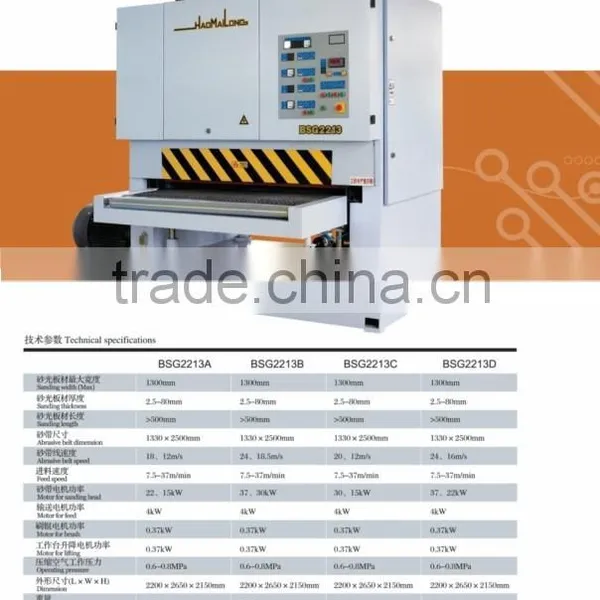

Model: 2213A

Sanding Width(max): 1300mm

Sanding Thickness: 2.5-80mm

Sanding Length: >500mm

Abrasive Belt Dimension:1330x2500mm

Abrasive Belt Speed:18, 12m/s

Feed Speed:7.5-37m/min

Motor for Sanding Head: 22, 15kw

Motor for Feed: 4kw

Motor for Brush: 0.37kw

Operating Pressure:0.6-0.8Mpa

Dimension (L*W*H): 2200x2650x2150mm

Net Weight: 2700kg

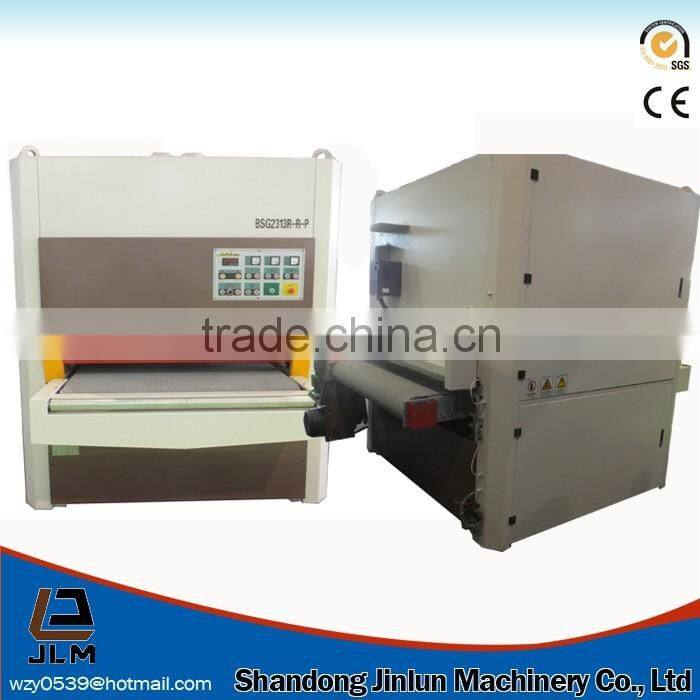

Wide Belt Sander-for Calibrating

(sanding as high as 2mm every side) Calibrating before hot pressing surface

1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

Model:2113R



Sanding Width(max): 1300mm



Sanding Thickness: 2.5-80mm



Sanding Length: >780mm



Abrasive Belt Dimension:1330x2620mm



Abrasive Belt Speed:25m/s



Main Motor:55kw



Reducer for feeding belt: 7.5kw



Feeding Speed:20-40m/min



Motor for lifting:0.75kw



Motor for brushing :0.75kw



Capacity of suction extraction:7900m³/h



Speed of suction extraction:25-30m/h



Operating Pressure:0.6Mpa



Dimension (L*W*H): 2100*2900X2440cm

Net Weight:5200kg

Capcity:2000Pcs/day




 1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

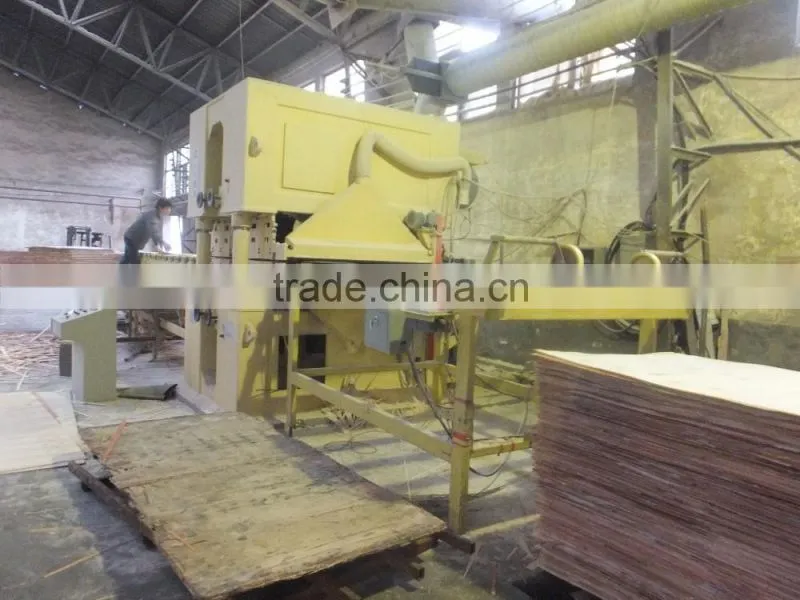

Clients





1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

        1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

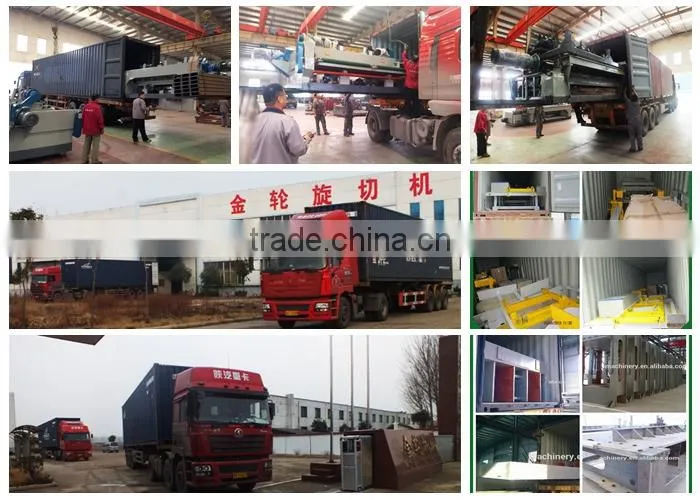

Packaging & Shipping





Delivery time is 20 days after the deposit.

 The fast transpotation and best price ship company to send machine to your factory.

Our Services





 1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

  1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

There are complete Pre-sale services, After-sales service, including Technical service and communication, Delivery. Helping you in select the right machine and providing actual solutions for clients’ requirement.

Pre-sale services:

1. Free consultation of the equipment.

2. Standard device and the flow chart.

3. Offering reasonable plan and free design helping select the equipment.

4. Welcome to visit our factory.

Services during the sales:

1. Inspect the machine before leaving the factory.

2. Oversea install and debug the equipment.

3. First-line operator training.

After sale services:

1.7/24 online service.

2. Provide the video with Install and debug the equipment.

3. Provide technical exchanging.

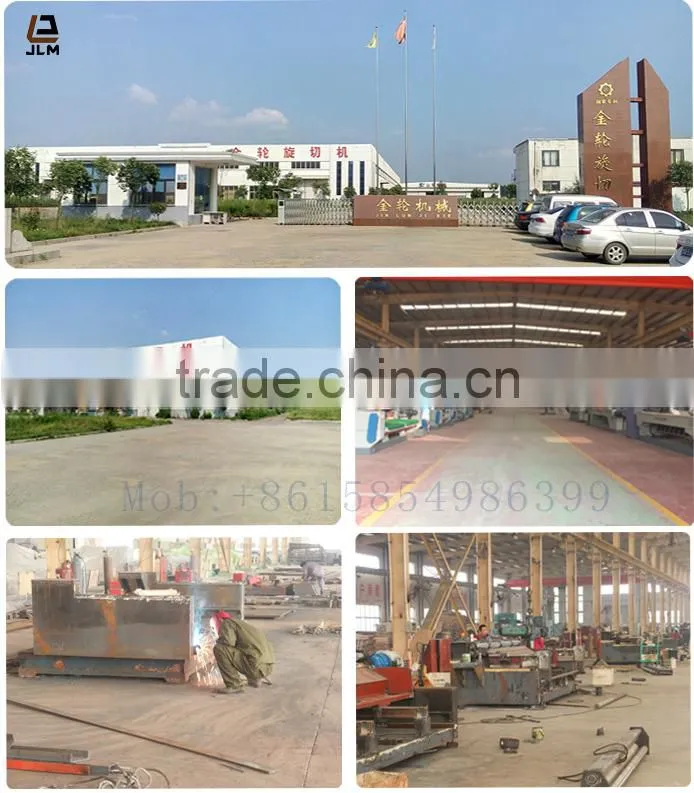

Company Information


1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

       Shandong Jinlun Machinery Co., Ltd is the Professional manufacturer of veneer peeling machine with well-equipped testing facilities and strong technical force.

      Main Products are the peeling machine, debarker, veneer composer, veneer peeling production line and other plywood productionmachinery.

     With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in timber production and other industries.

     Products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all over the world to contact us for future business relationships and mutual success!

1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine

1300 heavy duty wide belt floor plywood sanding machine, wire brush sanding machine
