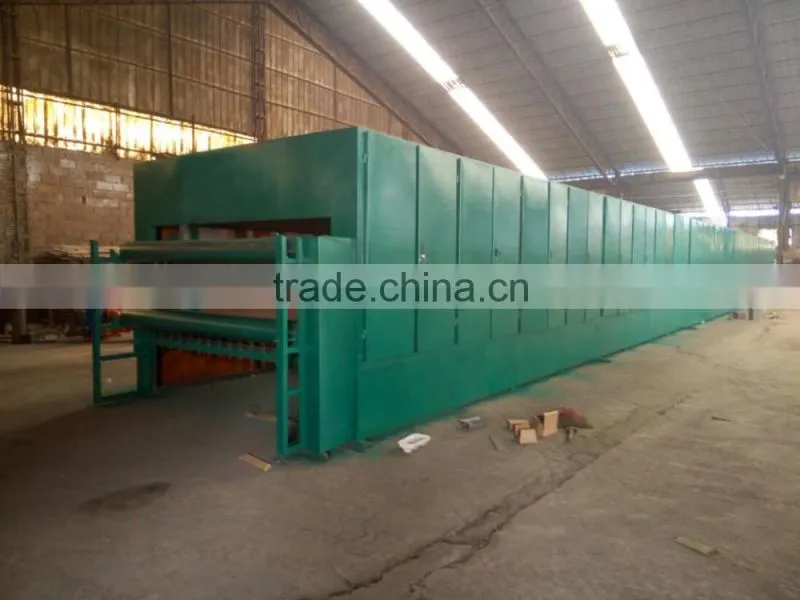

shandong jinlun machinery Roller Type Veneer Drying machine for veneers

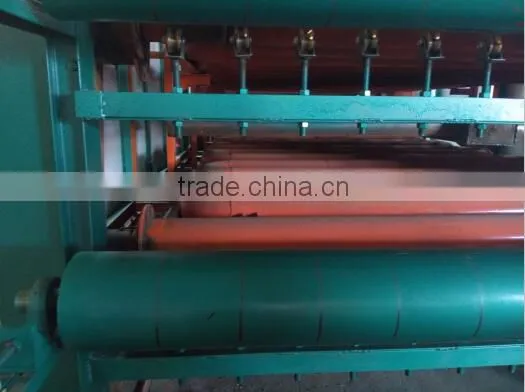

Roller gear drive system can keep the veneer smooth after drying. The output of veneer with the thickness of 1.7mm is about 40CBM per 8 hours. Bark and other tree waste can be used as the fuels for this drying line, significantly saving the cost. Overseas technical staff for installation service is available.
Parameter:
Model |
HGX20 |
Type |
drying machine |
Condition |
New |
whole length |
30m |
working width |
2.8 m |
veneer thickness |
1-7mm |
Working layers |
2 layer |
Each entry leather |
4 pcs |
Daily out put |
40-50M3/24hours |
Initial moisture |
80-85% |
Final moisture |
8-12 % |
Voltage |
380V |
Power of heating motor |
5.5kwX7sets |
Power of conveyor motor |
5.5kw*2sets |
Drying temperature |
150 -200℃ |
Roller material |
Chrome plated |
Roller diameter |
10.8mm |

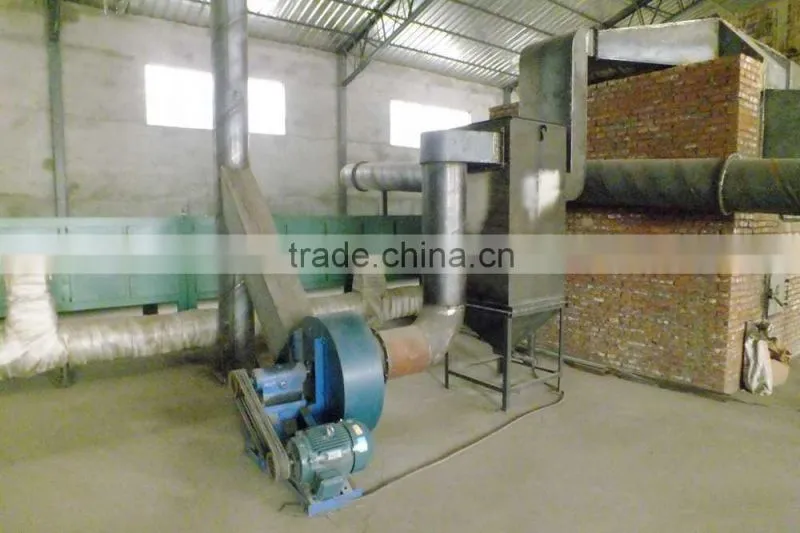

Fuel |
bark and other tree waste |
Weight |
50-60t |
Delivery |
40F container*3 |
