Specifications
1.jatropha oil press2.novel design
3.easy operation
4.good after-sale service
jatropha oil press

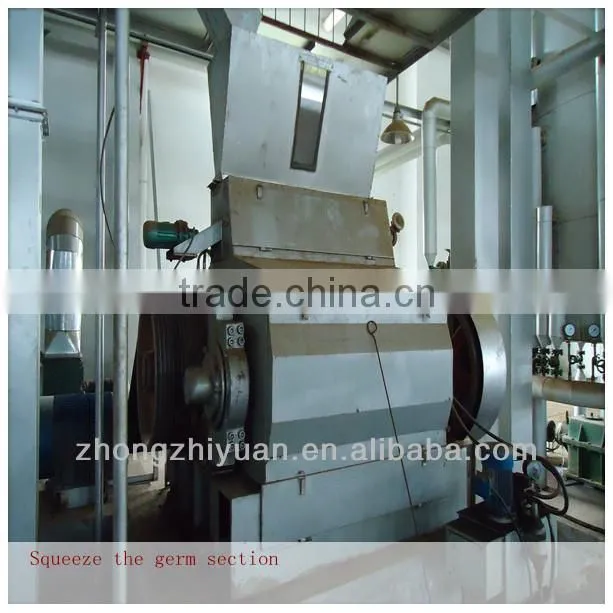

1.Oil Pre-treatment include several section as below:a.cleaning section b.breaking section c.flaking section d, softening section oking section f,oil press section
2.Solvent extraction process of Oil Pre-treatment include: extraction, desolventizer, Evaporative system, condenser.Oil extraction, can be regarded as solid - liquid extraction. It’s use solvent has different solubility for different raw material to separate oil from the cakes.
3.Oil Refinery process of Oil Pre-treatment
refining crude oil generally are Physical and chemical refining include Deodorization, degumming,deacidification, ,decoloring, dewaxing
jatropha oil press pre-treatment plant

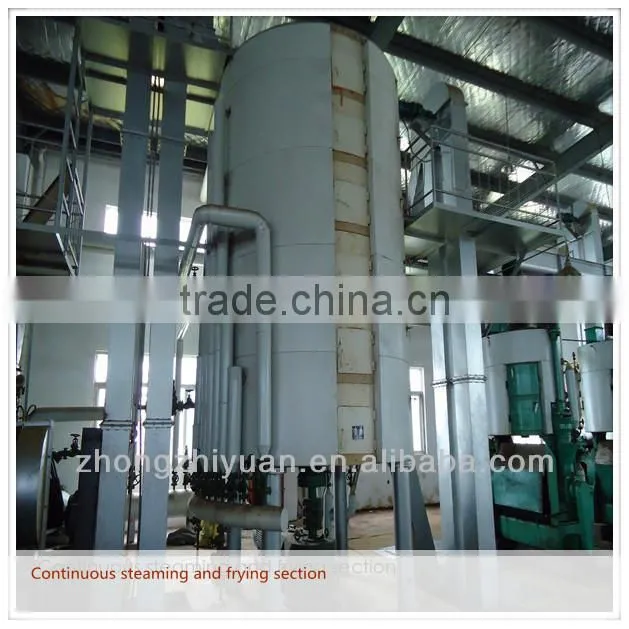

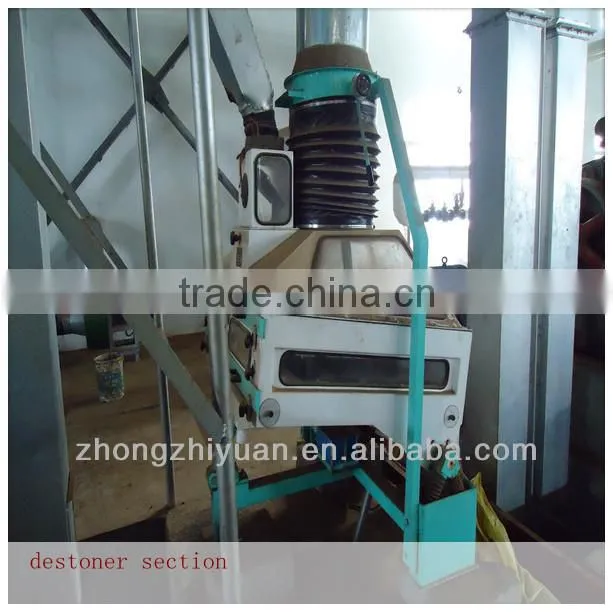

Cleaning- Shelling of oil seeds – Cracking-Cooking/Quenching and tempering- Flaking

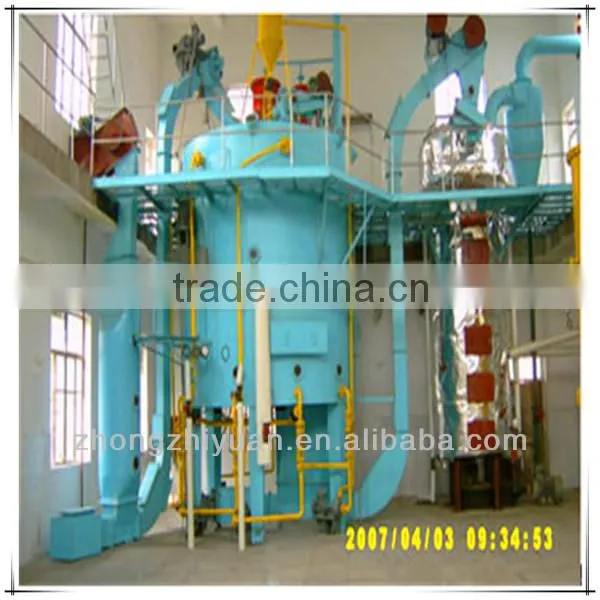

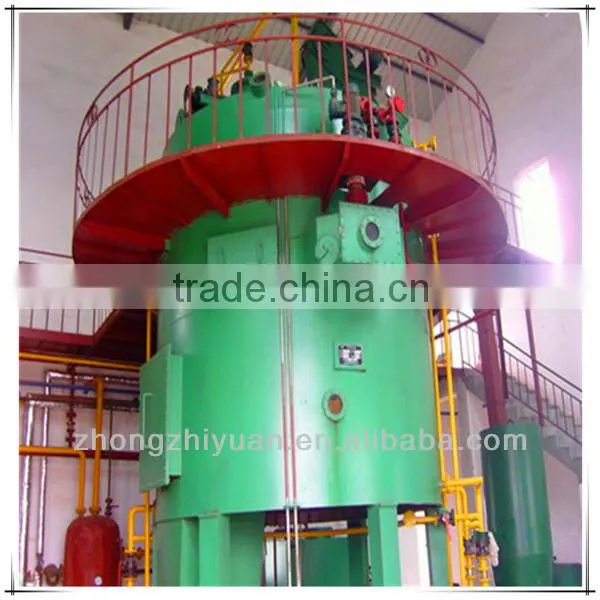

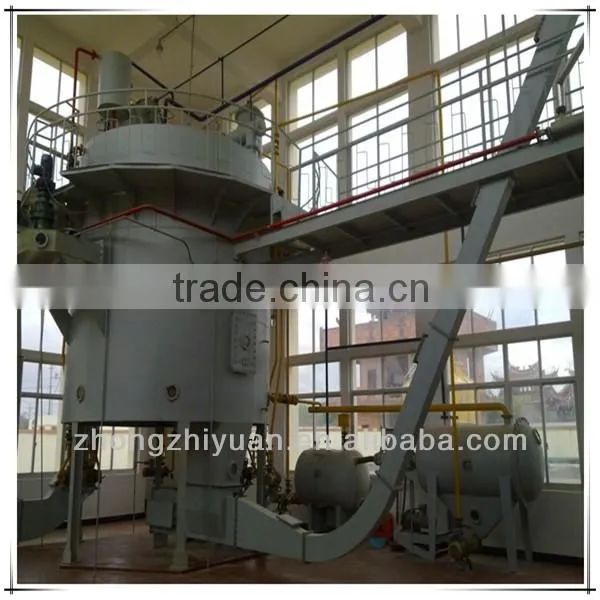

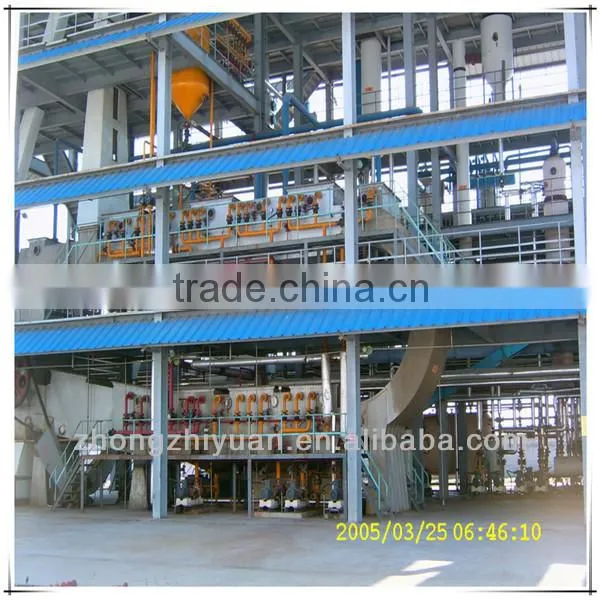

solvent extraction piant
1. Applying to all kinds of crude vegetable oil
2. Easy to operate
3. Less investment to make more profits
4. Advantages of the oil leaching machinery:
Under the strict supervision and the quality control, the equipments are of high quality and high oil output. Because of equipments used in the oil refining machinery, the oil output is increased as high as possible. There is less waste and more profits.
oil refining plant
1.Edible / Vegetable oil refining is a step by step process. Refining of oil removes phospholipids, pigments, off-flavor, free fatty acids, and other impurities. The entire oil refining plant process comprises Degumming / Neutralization, Bleaching, Deoderization, and Winterization(Optional).
2.This system is batch type refining, it’s the concentration of the big scale oil refining line, the capacity could be 1~10Ton per day.It could refine more than one kind of crude oil , such as salad oil, high cooking oil, first grade oil and second grade oil, also it could refine animal oil, such as the lard oil, fish oil. it's the idea choice of Medium and small scale oil mill plant.
oil refining plant working process
(1)pump crude oil into refining tank and heat with conduction oil, and the temperature will reach about 70°C-80°C after one hour. Add acid or alkali to separate according to the acid value. After one hour's processing and 4-6hours deposit, then convey soap stock to storage tank. (2)Pump refined oil into decoloring tank. When it is up to 90-110°C after one hour's heating, add clay into tank for 20min's processing. Then separate clay and oil with filter.
(3)Put discolored oil into deodorization tank with vacuum pump. Heat and process with steam for odor removal. After filtering, you will get final oil product.
Functions of oil refining plant main parts
(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.
(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.
(3) Deodorizing section: to remove off the odor components in oil.
(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.
(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach above 280°C.
(6) Steam generator: produce the needing steam for de-odoring and distillation.
(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, de-odor. Vacuum degree can reach above 755mm Hg.
(8) Press filter: filter clay, filter out clear oil.
(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter
Our Service and Payment Terms:
1. We usually accept T/T, L/C;
2. T/T: 30% in advance as down payment, the balance before delivery;
3. We take pictures of finished products before delivery.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Our service
Full and perfect service
♥.Pre-sale services: enthusiasmWe provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♥.Sale services: servantSend technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
♥.After-sale services: faithfulnessTo establish long term friendship, we will regularly pay return visit to customers
Remarks:
In order to find the suitable models and design the most suitable production line for you,pls kindly inform us the following information:
1 How much is your budget.
2. What's the production capacity you want?How many tons per hour?
