Powder Coating Machine into the depths of workpiece surface, the obtained coating quality is high.Powder Coating Machine

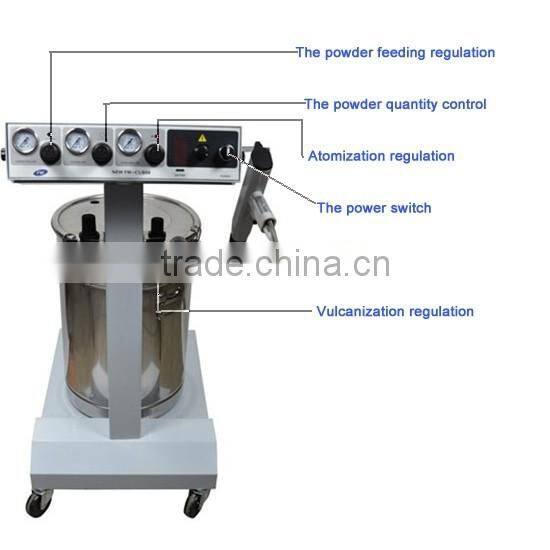

Feature of Electrostatic Powder Coating Machine 801 :

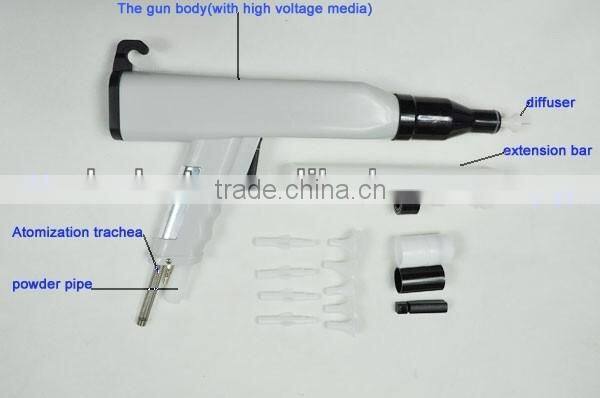

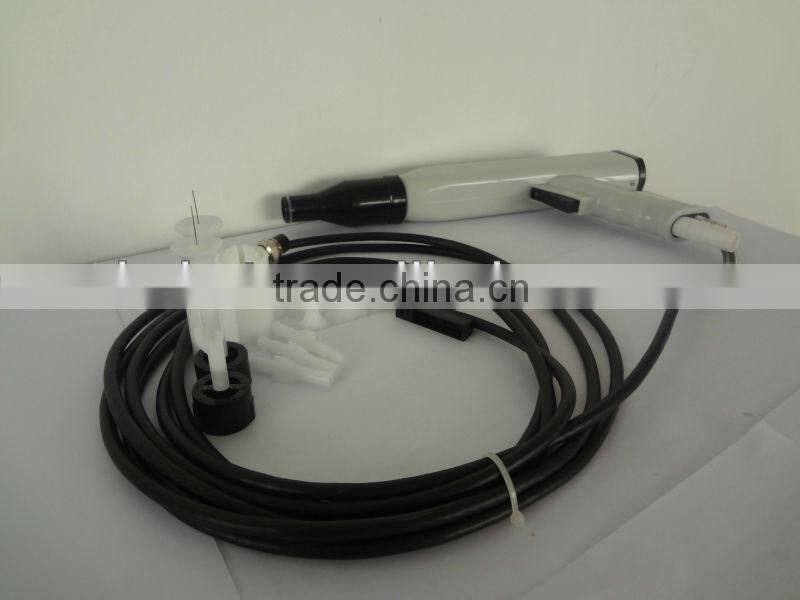

* Static Powder Coating Spray Gun
* Highly integrated electronic circuit Uniquely constructed high tension Module
* Imported air elements of outstanding quality Modern shape of full set design
* Light and handy spray gun beautifully shaped
* Novel visual indication for electricity and air
* Almost perfectly sealed construction
Technical Data oTB-801 Electrostatic Powder Coating Machine :
1.Input Voltage : AC 220V-24OV 50Hz(110V/60Hz)
2.Output Voltage : DC 0-100KV Adjustable
3.Output current : ≤ 0.15 m A
4.Air Source pressure : 0.5 MPa
5.Max Consumption (0.6 MPa) : 1 m & sup3; /h
6.Weight gun : 480 g
7.Powder Container Volume : 60L
8.Max Storage : 20 Kg
9.Net Weight : 30 Kg
10.Overall size : L*W*H 450*600*1060mm
