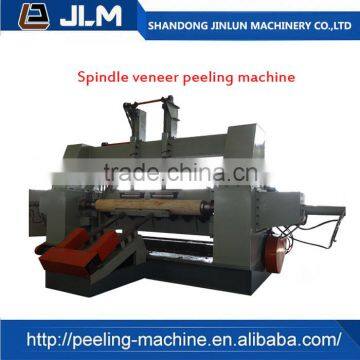

Spindle Wood Face Veneer Peeling Machine/ Veneer Slicing Machine

BBK1142

BB1132F

BB1130F

BB1127F1

Max. cutting size  (mm)

4250 x 750 x720

3200 x 600 x 800

3000 x 650 x 720

2700 x 650 x 400

Cutting veneer thickness(mm)

0.1-3.6

0.2-2.2

0.1-2.2

0.14-2.2

Frequency (t/min)

10-36

10-35

13-25

13-33

Main motor power (kw)

55

55

30

22

Lift motor power(kw)

4

4

2.2

Clamping motor power(kw)

7.5

0.75

2.2

2.2

Overall dimensions (mm)

9740 x 6300 x 2845

9200 x 4710 x 3000

8095 x 3975 x 2710

7785 x 3870 x2440

Weight (kg)

36000

34000

20000

16600

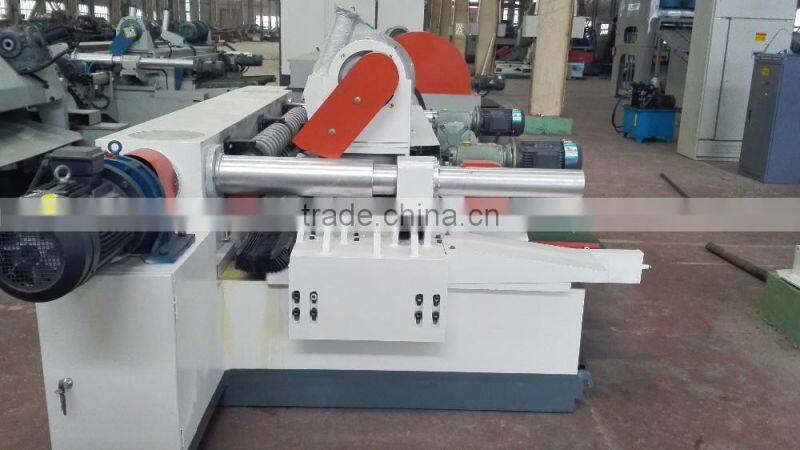

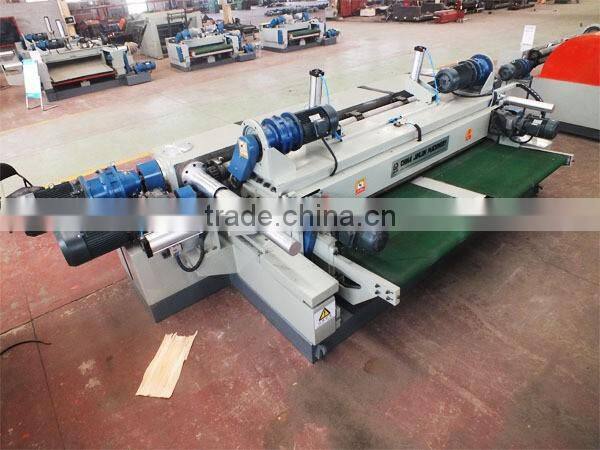

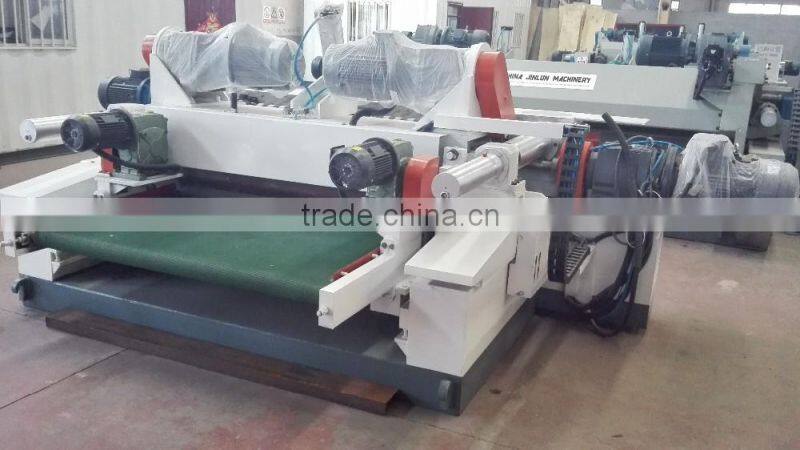

JINLUN  CNC Spindleless Veneer Peeling Machine

Type

4 feet (1300mm)

8 feet (2600mm)

10 feet (3200mm)

Model

WWXQ130SY-40F

WWXQ260SY-45F

WWXQ320SY-50F

Cutting Size

450*1300mm

450*2600mm

500*3200mm

(Diameter*Length)

Min Residual

28mm

35mm

35mm

Diameter

Max Stroke of

400mm

450mm

500mm

Tool Slide

Cutting Thickness

0.5~3.6mm

0.5~3.6mm/3.6-6.5mm

0.5~3.6mm

Cutting Speed

48m/min

48m/min

48m/min

Power

21.5KW

31.5 KW

45 KW

Peeler blade

1400mm*180mm*16mm

2700mm*180mm*16mm

3300mm*180mm*16mm

(L*W*H)

Clipper Size

1400mm*90mm*12.7mm

2700mm*90mm*12.7mm

3300mm*90mm*12.7mm

(L*W*H)

Dimensions

3200mm*2100mm*1350mm

5300mm*2200mm*1450mm

6800mm2200mm1450mm

(L*W*H)

Total Weight

About3400KG

About 7800KG

About 12000KG
