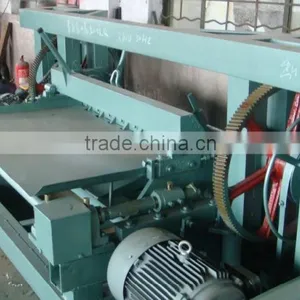

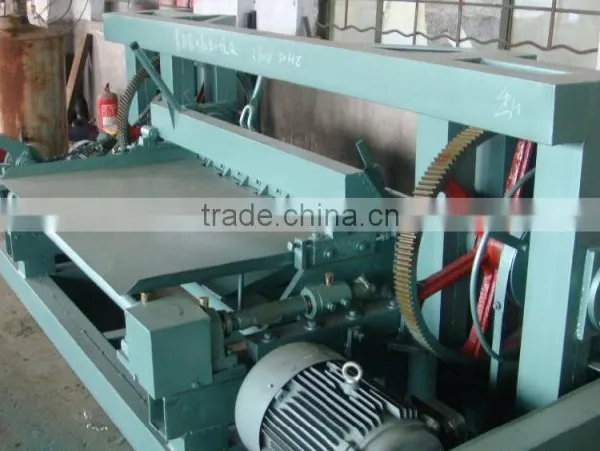

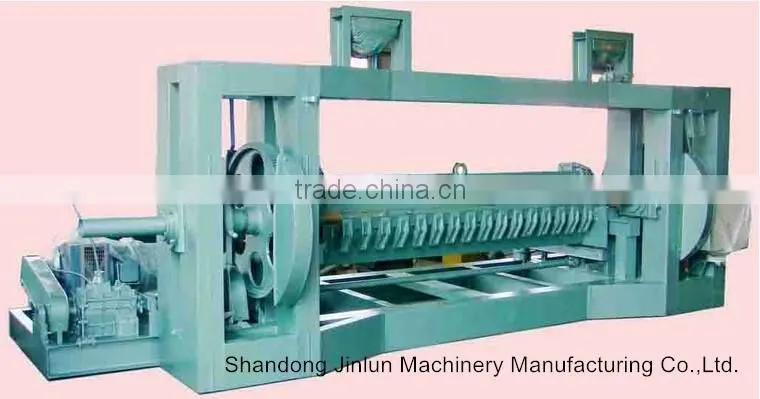

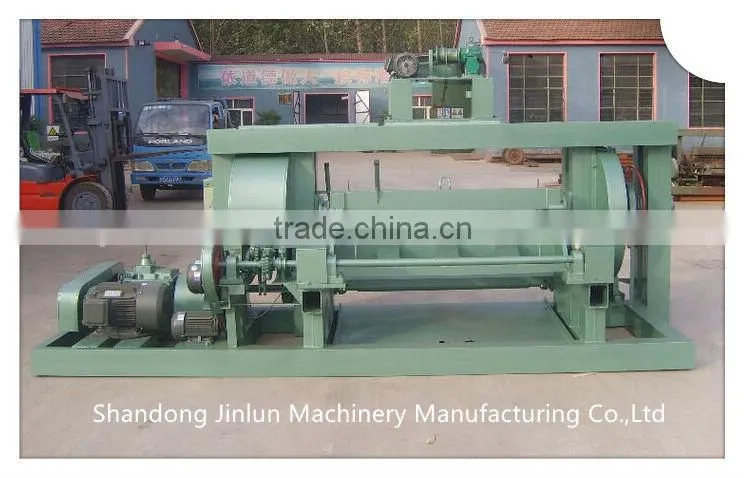

Help Center4 ft Rotary Cutting Machine for Log Veneer / Wood Lathe Rotary Peeling Machine
Related Products
-
8 ft Automatic Wood Veneer Peeling Machine / Wood-based Panel MachineryUS$ 8,000 - 10,000MOQ: 1 Set -
8 ft Log Peeling Lathe / Plywood Veneer Machine / Spindle Wood Veneer PeelingUS$ 8,000 - 10,000MOQ: 1 Set
-
8 ft Size Face Veneer Peeling Machine / Wood Veneer Spindle Peeling Machine LatheUS$ 8,000 - 10,000MOQ: 1 Set
-
China JLM 4 Feet Spindle Veneer Peeling Machine for Face VeneerUS$ 15,000 - 18,000MOQ: 1 Set
-
Wooden Pallet Making Machine for Grapes Wooden Box/wooden Board Making Machine for FruitUS$ 15,000 - 18,000MOQ: 1 Set
Specifications
plywood veneer making machinerygood quality vertical with-card veneer peeling machine
simple structure
We have dacades of years' prefessional veneer peeling line making and plywood making machine manufacturing experience. Our products sell well in many foreign counries like Brazil, India and so on. We freely provide your the total plan to help you to establish the whole veneer peeling line and we are pretty willing to solve your questions. According to your special requiements, we will offer you the reasonable plan and design helping you to select the equippments which are most suitable to you. To let every customer uses conveniently and feels satisfied is our forever goal.
Model |
4ft LXQ130 |
8ft LXQ260 |
|
Specification of wood(D*L) |
Ø900mmx1300mm |
Ø1300mmx2600mm |
|
Minimum residual |
Ø80mm |
Ø110mm |
|
Max stroke of knife |
350mm |
700mm |
|
Peeling thickness |
0.3~3.6mm |
0.3~3.6mm |
|
Knife specification(L*W*T) |
1400x130x12.7mm |
2700x140x12.7mm |
|
Cutting speed |
28-30m/min |
28-30m/min |
|
|
Motor and Power |
Main motor |
15kw-6kw |
22kw |
Clamping motor |
2.2kw-6kw |
4kw |
|
FF REW motor |
1.1kw-6kw |
2.2kw-6kw |
|
Lifting motor |
1.5kw-4kw |
1.5kw-6kw |
|
Weight(about) |
2300kg |
6000kg |
|
Overall dimension(L*W*H) |
4270x1500x1220mm |
6350x2800x2280mm |
|
Shandong Jinlun Machinery Manufacturing Co., Ltd is a manufacturer of peeling machine with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in timber production and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old friends from all over the world to contact us for future business relationships and mutual success!
