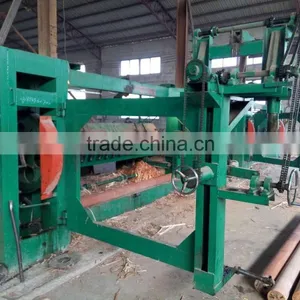

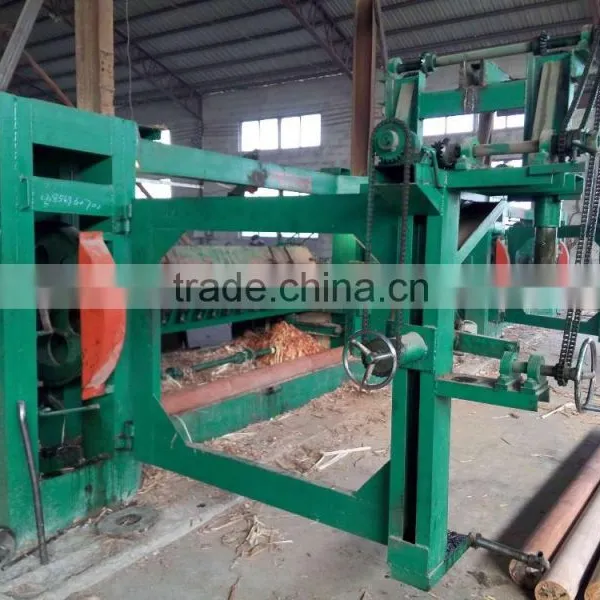

high speed card rotary veneer cutting machine / spindle face veneer peeling lathe
- 10 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
65m/min fastest 0.3mm face advanced wood log machine for plywood face veneer peeler
-
cnc woodworking machine / 8 feet vertical veneer rotary lathe
-
vertical with-card veneer peeling machine / spindle veneer peeling machine
-
8 feet high quality peeler / plywood rotary cutter machine
-
hard wood face veneer peeling machine / veneer slicing machine cutting
-
2ed hand plywood 2 in 1 log peeler cnc OSB lathes
Product Details
Condition | New | Type | Other | |
Place of Origin | Shandong, China | Brand Name | Jinlun | |
Model Number | XQ260 | Voltage | 380v~415v | |
Power(W) | 26kw | Dimension(L*W*H) | 5300x2200x2500mm | |
Weight | 5000kg | Certification | CE | |
Warranty | 1 year for the motor | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
We have dacades of years' professional veneer peeling machine and plywood machinery manufacturing experience. Our products sell well in many foreign counries like Brazil, India and other countries. We are willing to provide you the complete plan to establish the veneer peeling line and solve your questions.
If you have special needs, give us your requiements and we will design and make special type machinry for you.Letting every customer feel satisfied is our forever goal.
Face/back veneer is mostly produced by 8 ft spindle peeling machine. Spindle lathe more often be used to peel big diameter log into 0.1~3mm veneer. The log is fixed by two shaft clamps.
Ø1.7m | Ø1.3m | Ø1.0m | |
Cutting thickness | 0.1mm-4mm | 0.1mm-4mm | 0.1mm-4mm |
Power | 26kw | 22kw | 22kw |
Spindle Diameter(Axis) | 110mm | 110mm | 110mm |
Max Log Diameter | Ø1700mm | Ø1300mm | Ø1000mm |
Max Log Length | 2600mm | 2600mm | 2600mm |
Over Size | 5300x2300x2700mm | 4800x2300x2500 | 4500x2300x2500 |
Final Diameter | 110mm | 110mm | 110mm |
Pre-sale
1. Free consultation about the equipment.
2. Reasonable purchasing plan and the veneer production line designing plan are offered according to clients' special requirement---helping you to select the most suitable machinery.
3. Welcome to visit our factory and our machine.
During-sales
1. We Inspect and test the machine before delivery.
2. We are willing to freely train your technicist and first-line operator.
After-sales
1.Engineers are available to service overseas.
2.Videos about installing and debuging the equipment.
Dilivery time: one or two weeks after receipt the deposit
Shandong Jinlun Machinery Manufacturing Co., Ltd is a manufacturer of peeling machine with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in timber production and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
Welcome new and old friends all over the world to contact us for future business relationship.
