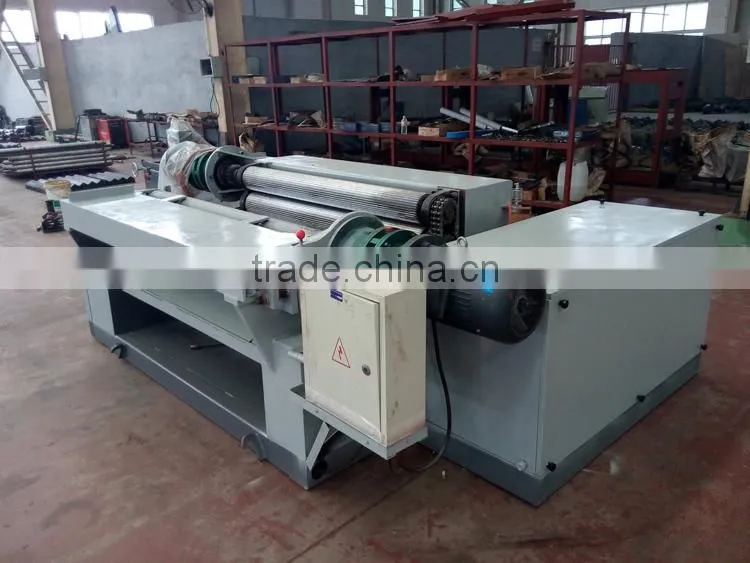

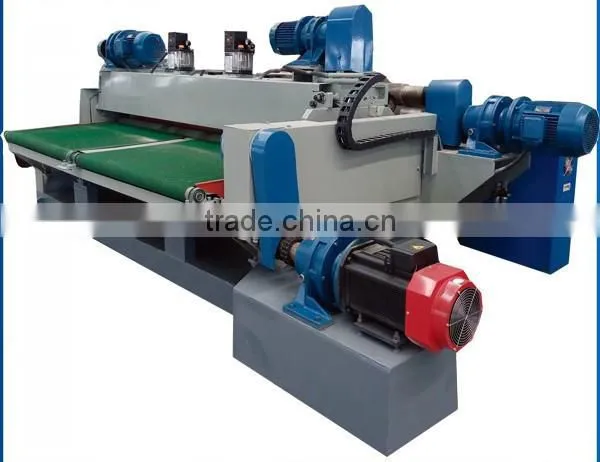

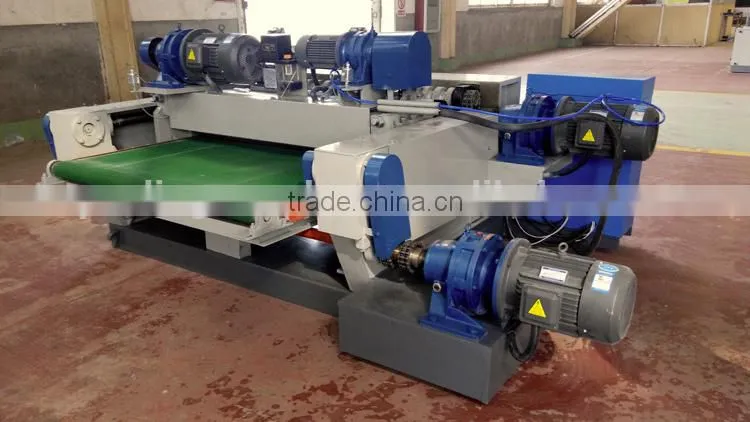

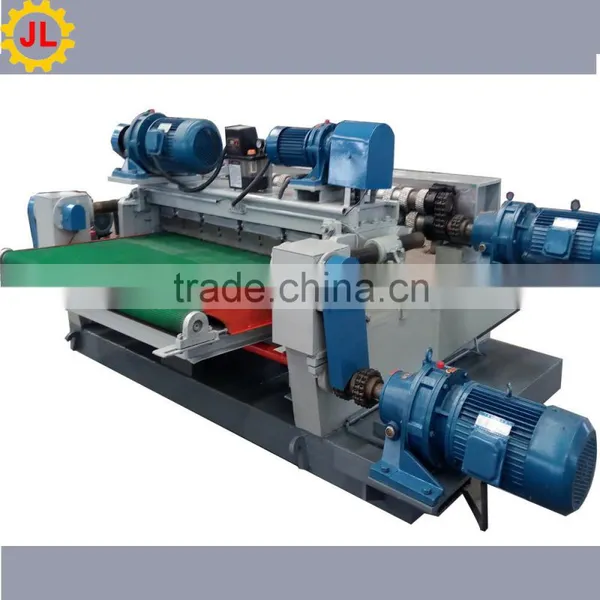

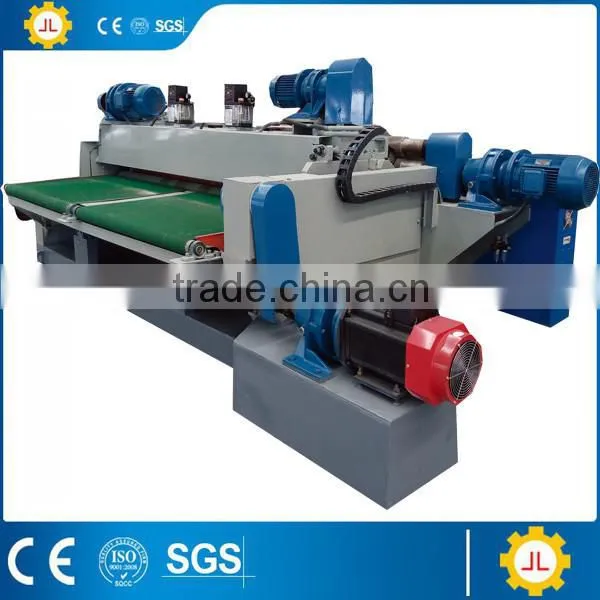

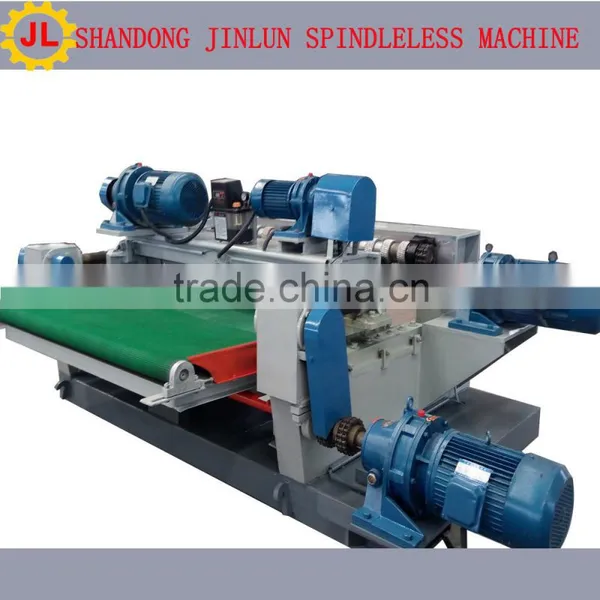

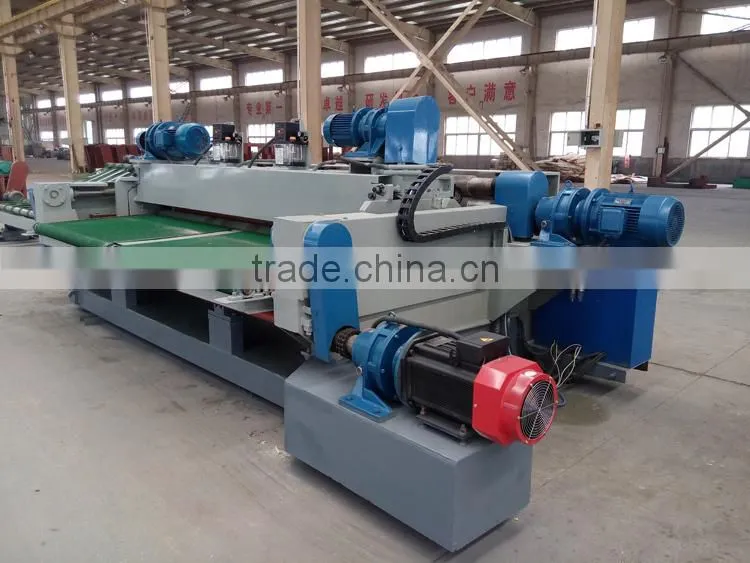

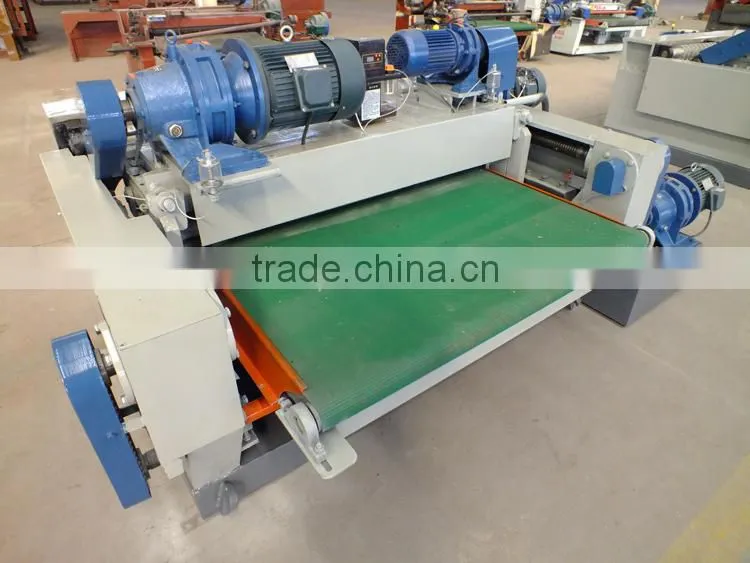

Model:1400mm spindless |
Parameters |
Max peeling length of peeler log |
1400mm |
Max diameter of peeler log |
400mm |
Left log diameter |
25mm |
Veneer Cutting thickness |
0.5-3.6mm |
Size of peeler blade |
1400x180x16mm |
Cutting speed |
48meters/min |
|
Total Power 21.5kw |
Single roller motor 5.5kw |
Double roller motor 7.5kw | |
Feeding motor 5.5kw | |
Slitting motor 1.5kw | |
Conveyor motor 1.5kw | |
Total weight |
3800kgs |
Overall size |
3150x2150x1400mm |

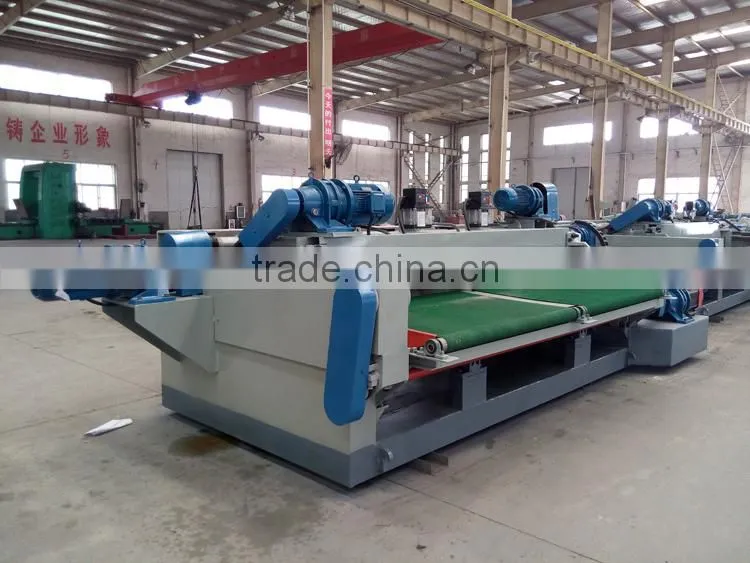

Model:2600mm spindles log peeling machine |
Parameters |
Max peeling length of peeler log |
2700mm |
Max diameter of peeler log |
400mm |
Left log diameter |
35mm |
Veneer Cutting thickness |
1.0-3.0mm |
Size of peeler blade |
2700x180x16mm |
Cutting speed |
36meters/min |
|
Total Power 35.2kw |
Single roller motor 7.5kw |
Double roller motor 7.5kw (2set ) | |
Feeding motor 7.5kw | |
Slitting motor 3 kw | |
Conveyor motor 2.2kw | |
Total weight |
8000kgs |
Overall size |
5200x2150x1600mm |
Debarker is used for log for round before peeling. And it is suitable for the eucalyptus, pine, cotton wood .with principle of peeling, removing the log’s skin and straighting logs. hydraulic driven feed mechanism,can quickly, efficiently put log removal of bark, round. One set debarker can supply 2 set peeling machine .it saves the original manual peeling, rounding procedure, save 5-6 human .
2600mm debarker |
parameters |
|
Diameter of log |
200mm-550mm |
|
the longest length of log |
2600mm |
|
Cutter size |
2700x180x16mm
|
|
The speed |
50 meters/min |
|
power |
Double roller motor |
11KW |
Single roller motor |
11KW |
|
Hydraulic motor |
4KW |
|
Dimensions |
4900x2200x1450mm |
|
Weight |
About 4.8tons |
|
s avaliable to services machinery overseas
2. we change the motor and reducer for free in one year
