plywood aluminium saw cutting machine/automatic panel saw
- 40 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
jinlun plywood aluminium saw cutting machine/automatico sb machine cutting
-
jinlun 250 cnc plywood saw/edging trimer/wood cnc band saw
-
jinlun edging trimer/horizontal wood cutting band saw with sliding table
-
Wood Band Saw Machine,chain saw wood cutting machine,petrol wood saw cutting machine
-
Wood Band Saw Machine,petrol wood saw cutting machine,wood cutting machine
-
veneer lathe machinery wood band saw plywood machinery
Product Details
| Condition | New | Type | Other, Frame Saw | |
| Place of Origin | Shandong, China | Brand Name | JINLUN | |
| Model Number | ZDJ-4X8 | Voltage | 380V/50HZ/3PH | |
| Power(W) | 22.5kw | Dimension(L*W*H) | 8000*5000*1200mm | |
| Weight | 7000kg | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CNC full automatic plywood veneer double saw/4 side saw
This plywood saw cutting machine is composed by infrared positioning, pre-loading device, longitudinal trolley fasten part, longitudinal trolley chains transmission,longitudinal saw heads,transverse trolley,transverse saw heads, transverse trolley chains transmission,automatic stacker.all working process is controlled by PLC.So in plywood /particle board/block board production,final size cutting will be completely automatic edge cutting and stacker.
Parameters:
Model Number: | ZDJ-4X8 | Use: | Plywood process |
Power(W): | 36KW | Voltage: | 380V/440V |
Capacity: | 8-12pcs/min(18mm) | Cutting speed: | 10-70mm/min |
Guiding method: | infrared guidance | Control method: | CNC |
Lateral saw cutting size: | 900-1300mm | Long saw cutting size: | 1830-2600mm |
Saw blade dimension: | Diameter 305mm | Total power: | 36KW |
Dimension(L*W*H): | 8000*5000*1200mm | Weight: | 4500KG |
Advantages of plywood saw machine:
1.Using the advanced production technology and professional design.
2.Using the numberical control frequency conversion, touch panel, PLC and some other advanced control system and the high quality cotrol element, make the machine work stably, safety, reliable and operate easily.
3. Infrared control systems improve the quality.
4.High precision guide operation, aligning the four edges,equaling the across corner.
5.Automatic tidy out, reducing the labor intensity.
6.Easy to operate for two workers, and save the working time.

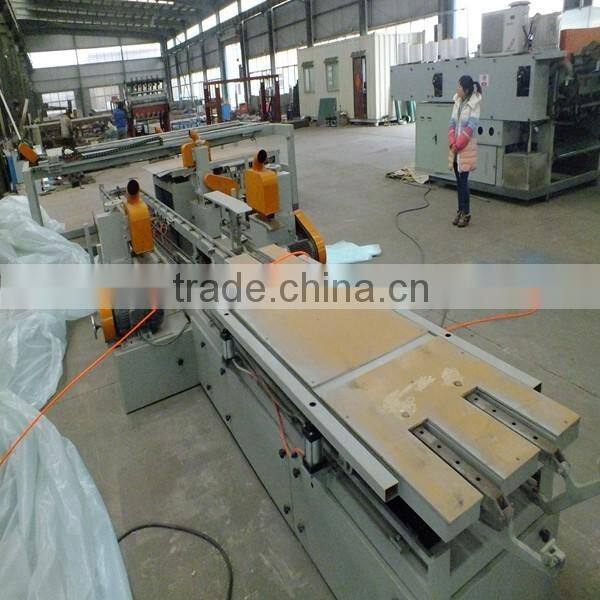

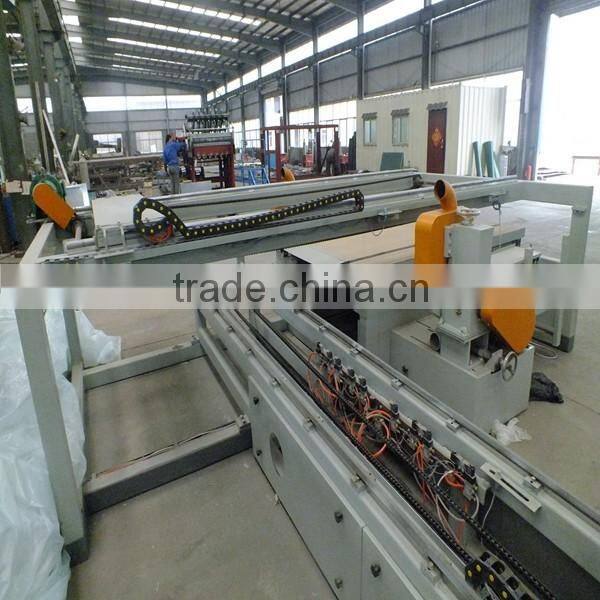

Details of plywood cutting saw machine
Customer visit
plywood production line
