2015 China 4x8 ft Manual Trimming Saw for Plywood Board
US$ 12,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Saw
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 China 4x8 ft Automatic Plywood Edge Trimming SawUS$ 12,000 - 20,000MOQ: 1 Set -
2015 China 4x8 ft Quality Plywood Panel Saw/plywood Saw Cutting MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
2015 China 4x8 ft Quality Plywood Panel Saw/panel Cutting MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
2015 China 4x8 ft Quality Plywood Automatic Four Sides Trimming Saw for Plywood FactoryUS$ 12,000 - 20,000MOQ: 1 Set
-
CNC Wood Log Saw Log Cutting Machine Sawmill Saw for Big Log/JINLUNUS$ 10,000 - 15,000MOQ: 1 Set
Condition
New
Type
Saw
Place of Origin
Shandong, China
Brand Name
jinlun
Model Number
YH-48
Voltage
380V
Power(W)
35KW
Dimension(L*W*H)
5000x2800x1020mm
Weight
5000kg
Certification
CE
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Vertical and horizontal edge saw cutting machine is one of the most importance equipments for plywood making. This production line is designed and produced according to oversea and domestic advanced equipments. Feeding by labor, then from sawing, stacking, all controled by PLC, which saving 50% labor, and increase 30% working efficiency. In normal condition, the daily output can reach 100-120 m3. It with high precision cutting, good quality sawing, burr-free, precision diagonal, is the best choice for plywood and lumber core factories.

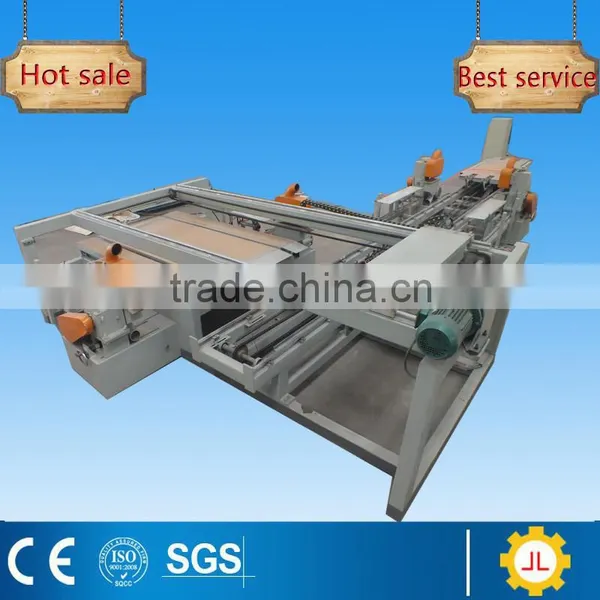

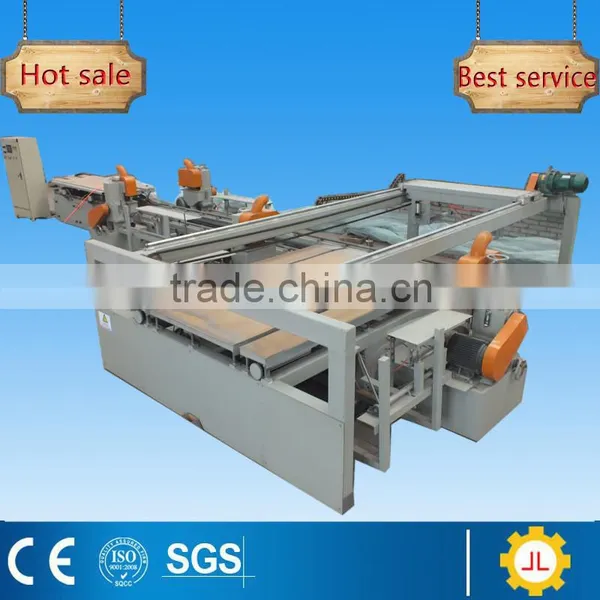

The pictures
The advantage of the full automatic saw
the items |
the full automatical saw | the manual saw |
| the labor | 2 workers | 4 workers |
| the speed | 25s/round | 90s/round |
| the guidance | Infrared guidance | by eyes |
| the fix device | mechinism hands | human hands |
| safety | far from saw blad | easy injury |
| the stacking | automatically(infrared) | munaul |
Technical Specification :
| Minimum and maximum cutting edge width | 900-1300mm |
| Minimum and maximum cutting edge length | 1830-2600mm |
| Saw blade size | φ180&φ305 |
| Cutting board thickness | 3~50 mm |
| Vertical sawing speed | 40m--70m/min |
| Horizontal sawing speed | 40m--70m/min |
| Broadside dimension | 8500*5500*1020 mm |
| Longside dimension | 3200*3500*1300 mm |
| Gross weight | 5000Kg |
| Motor power | 34.8KW |
