Home > Products > Hot press machine > 500T 15 Layers 4x8 Feet, Heat Press Machine/hydraulic Press

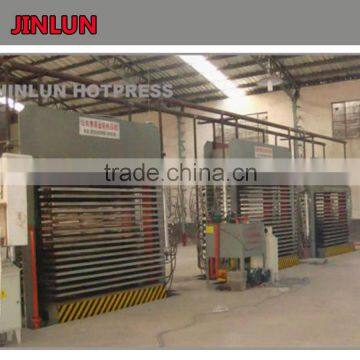

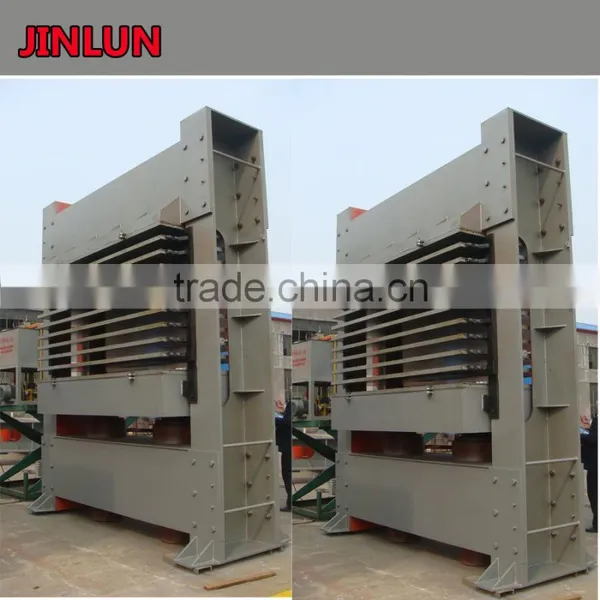

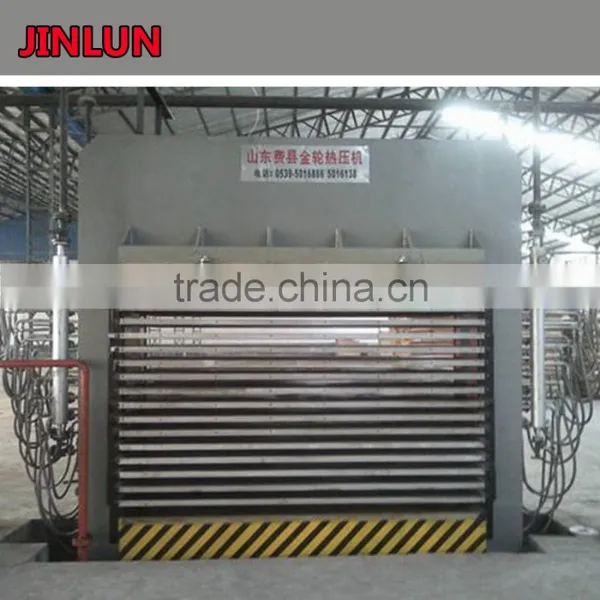

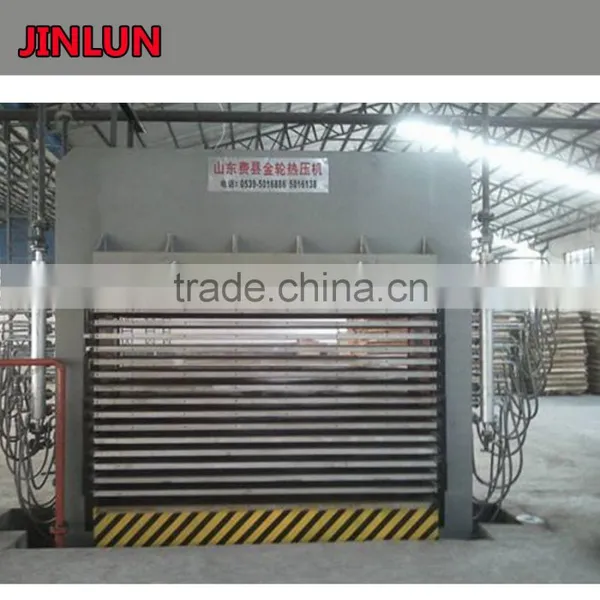

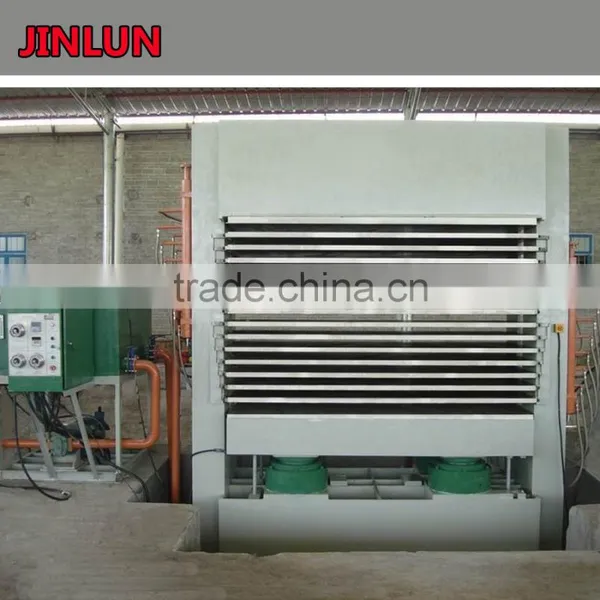

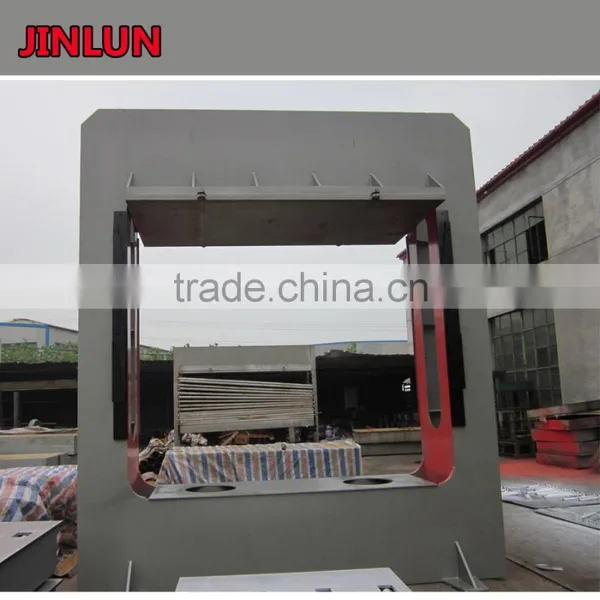

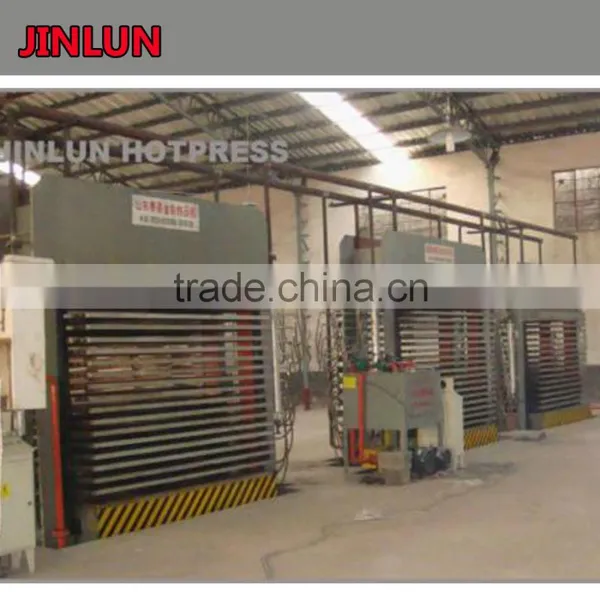

500T 15 Layers 4x8 Feet, Heat Press Machine/hydraulic Press
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
500T 15 Layers 4x8 Feet, Plywood Machine/oil Press Machine
-
500T 15 Layers 4x8 Feet, Plywood Machine /hydraulic Press Machine/heat Press Machine
-
500T 15 Layers 4x8 Feet, Plywood Machine /hydraulic Press Machine
-
China Wholesale Market Agents Wood Veneer Hot Press
-
Wholesale Goods From China Hot Press Machine
-
China Goods Wholesale Multilayer Hot Press Machine
Product Details
| Condition | New | Type | Hot Press Machine | |
| Place of Origin | Shandong, China | Brand Name | JINLUN BRAND | |
| Model Number | BY22-4**/400-15 | Voltage | 380V 60Hz | |
| Power(W) | main motor 11 kw | Dimension(L*W*H) | 2700x1370x400mm | |
| Weight | 31000kgs | Certification | CE ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Model: hotpress machine for plywood | BY21-4'*8'/40-15 |
| Frame style | Combination frame |
| Quantity and Diameter of Cylinder | 2 units Φ320mm |
| Nominal Pressure | 400Tons |
| Quantity of layers | 15 layers |
| Separation between layers | 70mm |
| Stroke of Cylinder | 1050mm |
| No-load closing time | About 15s |
| Hydraulic system control method | Manually/Automatic controlled |
| Hydraulic system pressure | 25MPa |
| Main motor | 11KW |
| Pressurized motor | 7.5KW |
| Main pump | Shanghai Aviation 250 pump |
| Pressurized pump | 10ml/rev plunger pump |
| Heating platen(working table size) | 2700*1370*42mm |
| Heating Meduim in the heating platen | steam or heat transfer oils |
| main frame steel plate thickness | 35mm,22mm,12mm |
| Upper, Bottom crossbeam | 1000mm,900mm,400mm |
| Movable crossbeam | 2700*1370*400mm |
| Weight | 31000KG |
| Production Capacity | about 30 sheets of plywood in one hour |
1. hotpress machine for plywood no packing
2. delivery time :30days after receiving deposit
1. engineers avaliable to serve machinery overseas
2. one year for spare parts
We are one of the largest professional manufactures factory in China . Our machines own
the highest domestic market share and exported to more than 20 countries, such as Vietnam, Thailand, Indonesia,Malaysia, Philippines, India, Pakistan, Turkey,
Russia, South Korea, Brazil, Paraguay, Nigeria and so on .
Welcome to visit our company for cooperation.
Debarker is used for log for round before peeling. And it is suitable for the eucalyptus, pine, cotton wood .with principle of peeling, removing the log’s skin and straighting logs. hydraulic driven feed mechanism,can quickly, efficiently put log removal of bark, round. One set debarker can supply 2 set peeling machine .it saves the original manual peeling, rounding procedure, save 5-6 human .
log debarker
log spindleless peeling machine
automatic saw
core veneer composer
