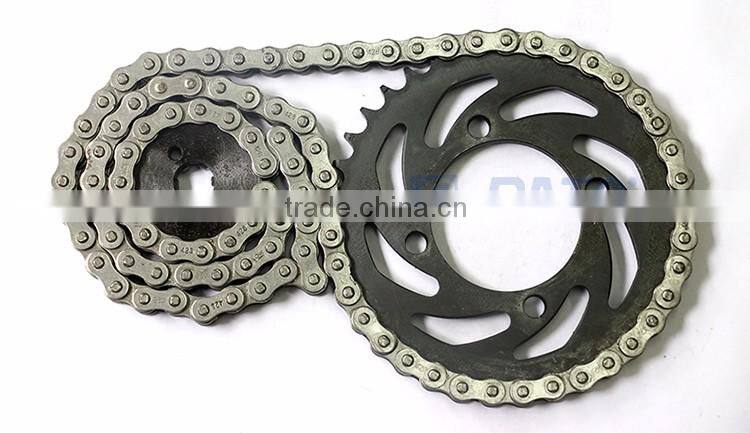

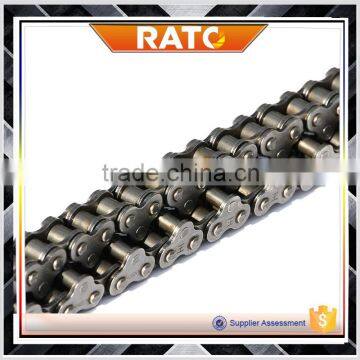

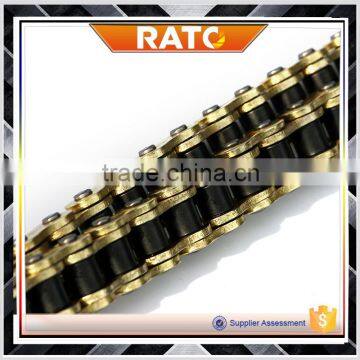

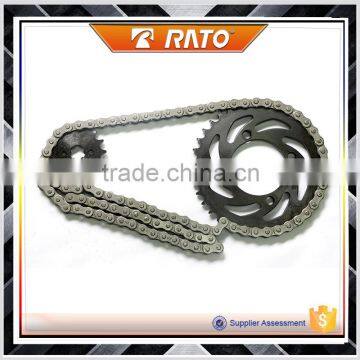

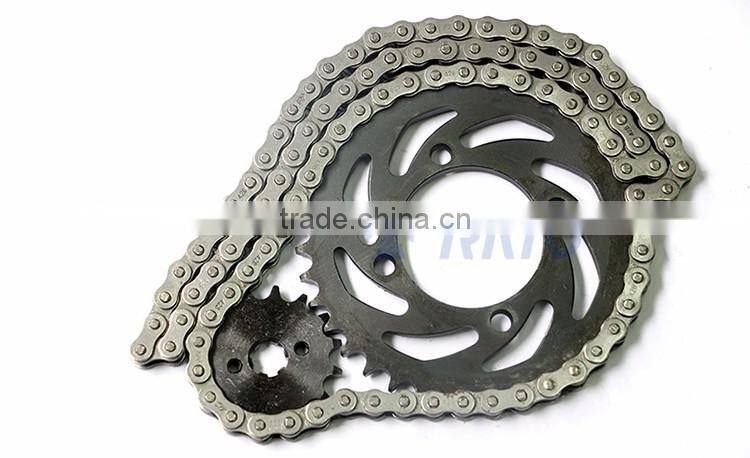

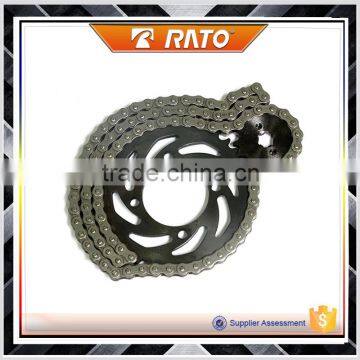

Motorcycle Chain 428H Chain Set
US$ 1.83 - 5.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Type:
Motorcycle Chain
Place of Origin:
Chongqing, China
Brand Name:
RATO
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.5x17 Motorcycle Rim Wheel for SaleUS$ 27.69 - 29.89MOQ: 100 Units -
14 Inch Spoke Wheel 72 Spokes WheelUS$ 20 - 23MOQ: 100 Units
-
1.4-17,1.6-17 Drum Brake Motorcycle Aluminum Alloy WheelUS$ 21.54 - 38.46MOQ: 100 Pairs
-
Motorcycle Rims and WheelsUS$ 33 - 36MOQ: 100 Units
-
High Quality OEM Motorcycles Anti Vibration Products Vibration DempenersUS$ 0.49 - 0.58MOQ: 1000 Pieces
Type
Motorcycle Chain
Place of Origin
Chongqing, China
Brand Name
RATO
Model Number
DF01701A1
Product Description

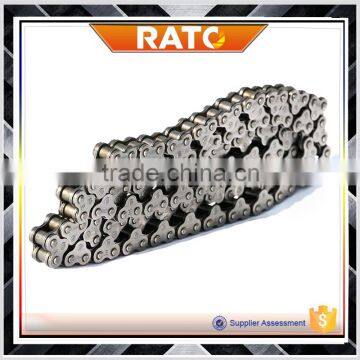

High quality 428H motorcycle chain 108 links

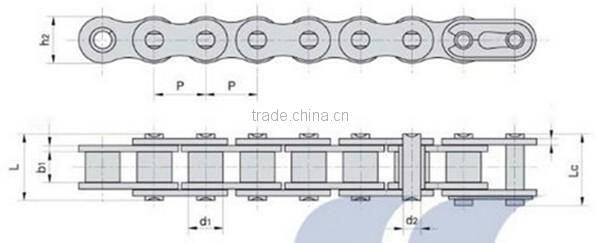

| Standard | |||||||||||
| Model | Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Inner plated depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Fatigue | |
| p | d1(max) | b1(min) | Ld2(max) | max | Lc(max) | h2(max) | T1 | Q(min) | Q0 | amx | |
| mm | mm | mm | mm | mm | mm | mm | mm | kn | kn | kgf | |
| 415 | 12.7 | 7.75 | 4.88 | 3.96 | 12.5 | 13.9 | 10.4 | 1.3 | 11.6 | 12.5 | 380 |
| 420 | 12.7 | 7.77 | 6.35 | 3.96 | 14.5 | 16.1 | 12 | 1.5 | 16 | 16.5 | 380 |
| 428 | 12.7 | 8.51 | 7.75 | 4.45 | 16.5 | 18.05 | 12 | 1.6 | 17.8 | 18.5 | 380 |
| 520 | 15.875 | 10.16 | 6.35 | 5.08 | 17.7 | 19 | 15 | 2 | 26.5 | 29.5 | 650 |
| 525 | 15.875 | 10.16 | 7.94 | 5.08 | 18.8 | 20.5 | 15 | 2.03 | 26.5 | 29 | 650 |
| 530 | 15.875 | 10.16 | 9.4 | 5.08 | 20.9 | 22.2 | 15 | 2 | 26.5 | 29.7 | 650 |
| 630 | 19.05 | 11.91 | 9.4 | 5.94 | 22.2 | 24 | 18 | 2.4 | 35 | 37 | 800 |
| Reinforced | |||||||||||
| Model | Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Inner plated depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Fatigue | |
| p | d1(max) | b1(min) | Ld2(max) | max | Lc(max) | h2(max) | T1 | Q(min) | Q0 | amx | |
| mm | mm | mm | mm | mm | mm | mm | mm | kn | kn | kgf | |
| 415H | 12.7 | 7.75 | 4.88 | 3.96 | 13.1 | 14.5 | 11.5 | 1.5 | 15.6 | 16.1 | 380 |
| 420H | 12.7 | 7.77 | 6.35 | 3.96 | 15.7 | 17.4 | 12 | 1.8 | 17 | 17.5 | 380 |
| 428H | 12.7 | 8.51 | 7.75 | 4.45 | 18.3 | 19.8 | 12 | 2.03 | 20.6 | 21.1 | 450 |
| 520H | 15.875 | 10.16 | 6.35 | 5.24 | 18.9 | 20.5 | 15 | 2.42 | 30 | 31 | 700 |
| 525H | 15.875 | 10.16 | 7.94 | 5.24 | 20.4 | 22.2 | 15 | 2.42 | 30 | 31 | 700 |
| 530H | 15.875 | 10.16 | 9.4 | 5.08 | 21.9 | 24.2 | 15 | 2.42 | 30 | 31.5 | 700 |

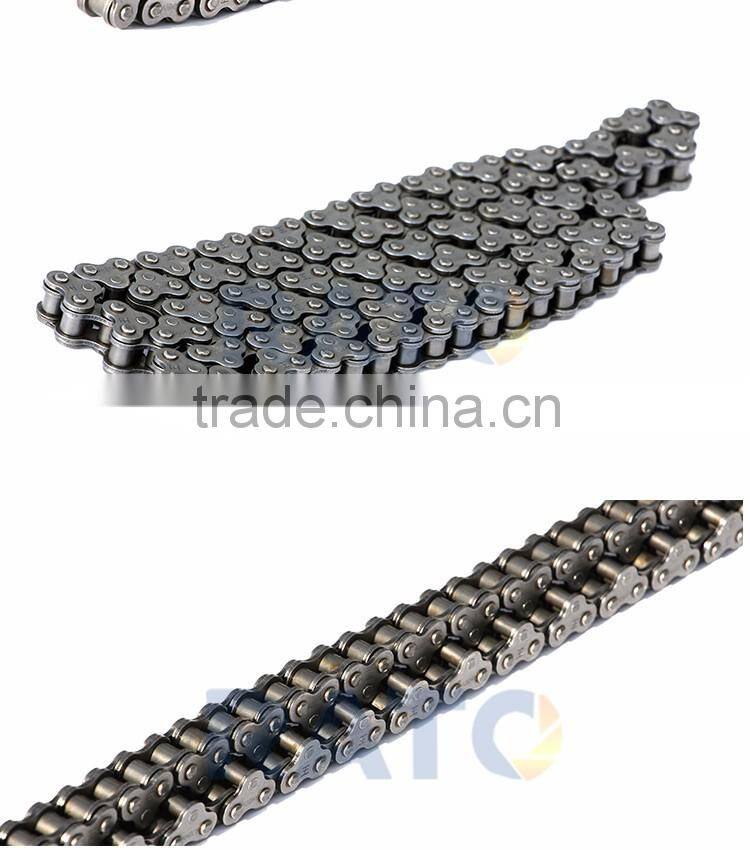

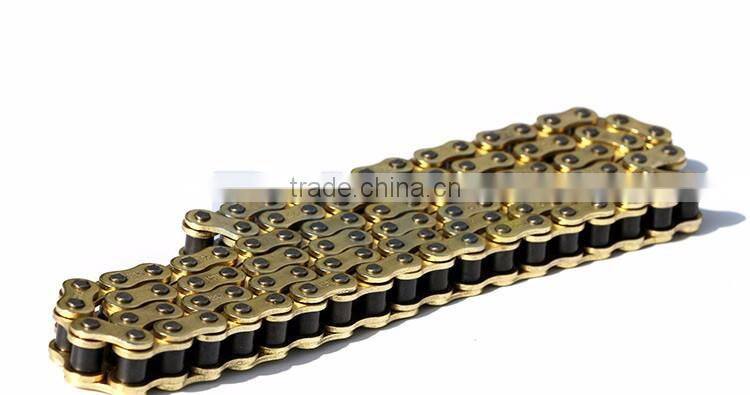

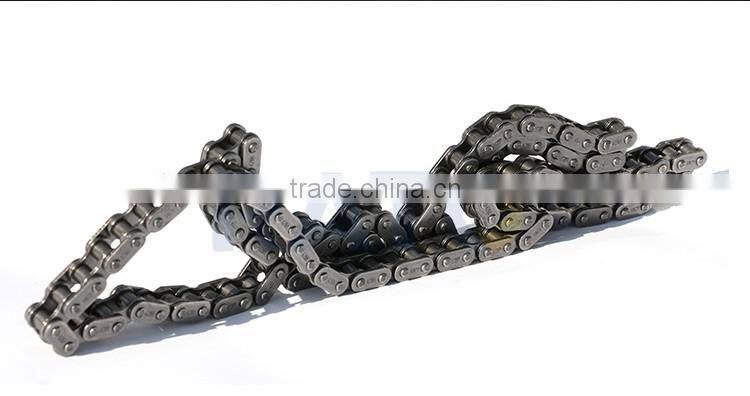

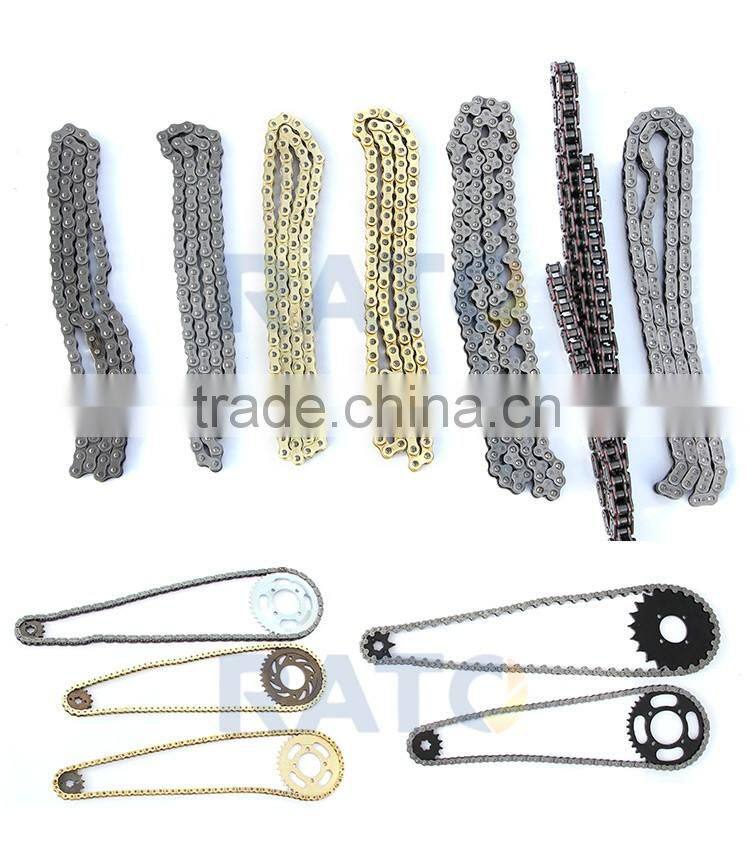

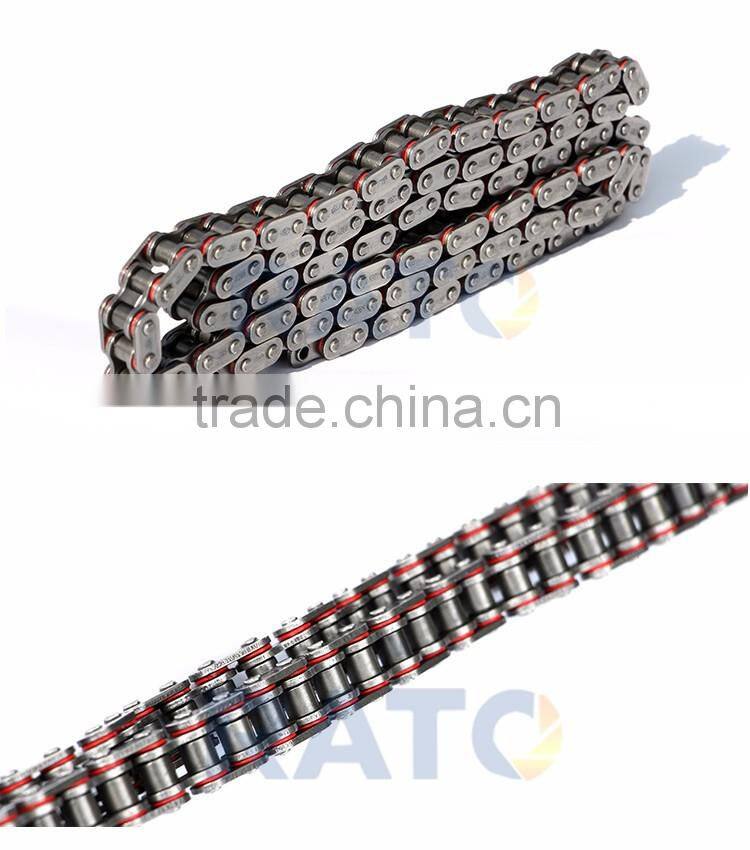

Product Display
Advantages:
1. Long service life
2. Stable performance
3. All parts are heat treatment(quenching and tempering) and controlled in a reasonable range
4. Good lubrication with excellent grease.
5. Tensile strength: 15-20% higher than standard
6. Pre-stretched and anti-rust
