Specifications
China Seam Gr2 Titanium PipePrice Competitive, High Quality
1) Material: TiGr2,Gr3, Gr5, N02200, N02201
2) Spec: ANSI,JIS

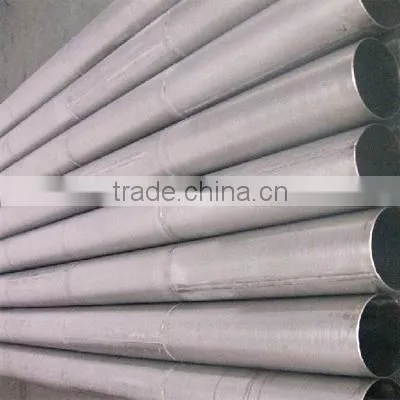

China Seam Gr2 Titanium Pipe
Specifications
ASTM B862 Gr1,Gr2 welded pips
Size: OD110-1500mm, THK 3-15mm, L<6000mm
based on your order to produce
x-ray,UT,current test
Standard: ASTM B862
Titanium pipe Description:
1) Size: Outer Diameter: 100-1000mm
Inside Diameter: 95-990mm
2)Shape: Round,Square
3)Length:<6000mm
4)Weight: According to the sizes.
5)Technique: welded
6)Surface: sand blasting
Chemical requirement
|
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
Gr 1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 3 |
0.05 |
0.08 |
0.015 |
0.30 |
0.35 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
Gr 7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
Gr 9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Tensile Requirements
| Grade | Tensile Strength | Yeild Strength | Elongation (%) | ||
| Ksi | Mpa | Ksi | Mpa | ||
| Grade 1 | 35 | 240 | 20 | 138 | 24 |
| Grade 2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 438 | 15 |
| Grade 12 | 70 | 438 | 50 | 345 | 18 |
We Offer:
1. Cost control-manufacturing and exporting by ourselves;
2. Competitive price-without middlemen;
3. Quality guarantee-SGS, Mill Test Certificate, other test as ordered;
4. On-time delivery-30 tons production capability per month and developed logistics;
5. Competitive payment method-different and flexible payment method (full L/C, 20%-70%-10%......)
Applications:
Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing.
(1)Heat exchangers and condensers
(2)All kinds of corrosive fluid transmission pipeline system
(3)Titanium bicycle pipe, automobile exhaust pip
(4)Offshore aquaculture
