1.5T 1.6m full electric reach stacker
(electric walking ,electric lifting )
Product description
1.Our full electric stackers are suitable to carry and stack in narrow channel and limted room.For example, high rack warehouse,supermarket,workshop.
2.Our full electric stackers are controlled by computer program.
3.Masts of our full electric stackers are made of steel imported from German.
4.Battey of our full electric stackers can be fitted from three directions
5.We can customize according to clients requirements.
Polyurethane wheel of full electric reach stackers
Oil cylinder of full electric reach stackers

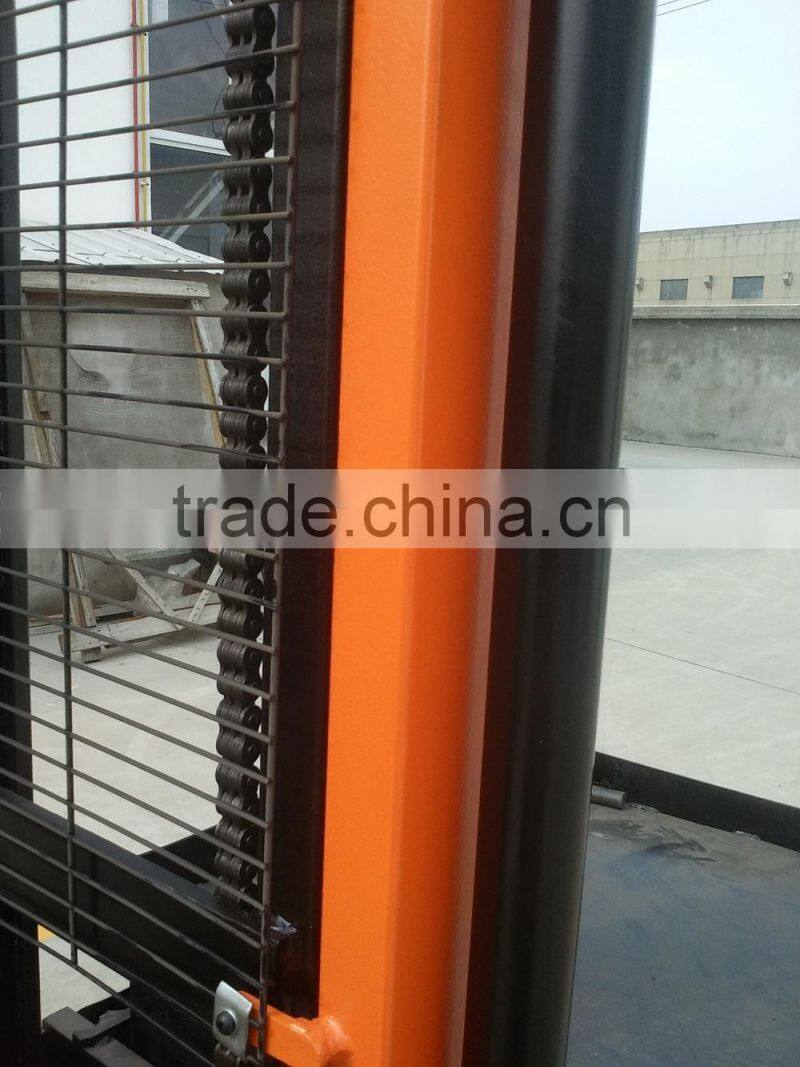

Masts of full electric reach stacker

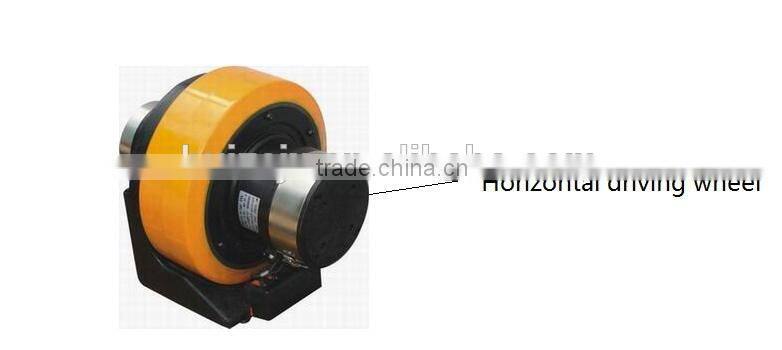

Horizontal driving wheel of full electric reach stacker
|
|
|
Characteristic | |||
1 |
Name |
|
Full electric reach stacker |
2 |
Model |
|
HZCQD1516-11 |
3 |
Mast steps |
|
single |
4 |
Dynamic unit |
|
battery |
5 |
Operation mode |
|
Standing |
6 |
Load capacity |
Q(Kg) |
1500 |
7 |
Load center |
C(mm) |
550 |
8 |
hydraulic cylinder |
|
Single cylinder |
9 |
Color |
|
Red, yellow, blue, gray |
10 |
Surface treatment |
|
Paint |
11 |
Wheel |
Polyurethane |
|
| 12 | G.W/N.W | kg | 1600/1597 |
Size | |||
|
Lifting height |
h(mm) |
1600 |
|
Fork minimum height |
h(mm) |
30 |
|
Overall height when fork up to maximum height |
h(mm) |
3470 |
17. |
Overall length |
L(mm) |
3470 |
18.4 |
Overall width |
b(mm) |
1000 |
19.4 |
Fork size |
l/e/s(mm) |
1070*100*38 |
20.4 |
Fork overall width |
b(mm) |
200~600 |
21.4 |
Overall height |
h(mm) |
2000 |
22.4 |
Reach distance |
l(mm) |
500 |
23.4 |
Rake angle |
β |
3° |
24.4 |
Inclined angle |
α |
5° |
25.4 |
Front wheel size |
mm |
φ178*80 |
26.4 |
Driving wheel size |
mm |
φ250*80 |
27.4 |
Balance wheel size |
mm |
φ150*50 |
28.4 |
Channel width |
Ast(mm) |
1100 |
29.4 |
Minimum channel width truck turning around |
Ast(mm) |
4000 |
30.4 |
Turning radius |
Wa(mm) |
3800 |
Driving | |||
1 |
Driving wheel |
Kw |
1.2 |
2 |
Lifting motor |
Kw |
2.5 |
3 |
Battery |
V/Ah |
24/210(1 group) |
4 |
Battery recharge cycles |
|
750 |
5 |
Battery weight |
Kg |
187 |
6 |
Charger |
|
24V30A |
7 |
Driving Control Type |
|
AC |
8 |
Driving wheel type |
|
Horizontal |
Packing and shipping | |||
1 |
packing method |
|
Packaging as a whole |
2 |
packing |
|
Angle iron + bubble wrap |
3 |
packing size |
L/B/H(m) |
3*1.2*2.4 |
5 |
How many boxes does each product have |
|
2 |
6 |
Number of 20-foot containers |
set |
8 |
7 |
Number of 40-foot containers |
set |
16 |
Others | |||
1 |
Specify product certification |
|
CE,SGS,BV,ISO90001 |
2 |
Name of customs declaration |
|
electric stacker |
3 |
FOB |
|
shanghai |
4 |
HS code |
|
8428909090 |
QA&Testing

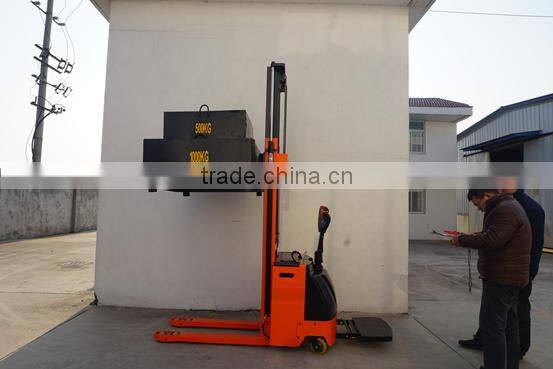

To ensure security and quality ,our manufacturer always tests each full electric reach stacker before the sales.
Certifications
Applications
and some other places(Workshop,Warehouse,Airport, Railway Station ,shipyard and so on) where need to carry and shift.
Workshop
Our service
F.A.Q
1.Q:Does your factory have favorable?
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
