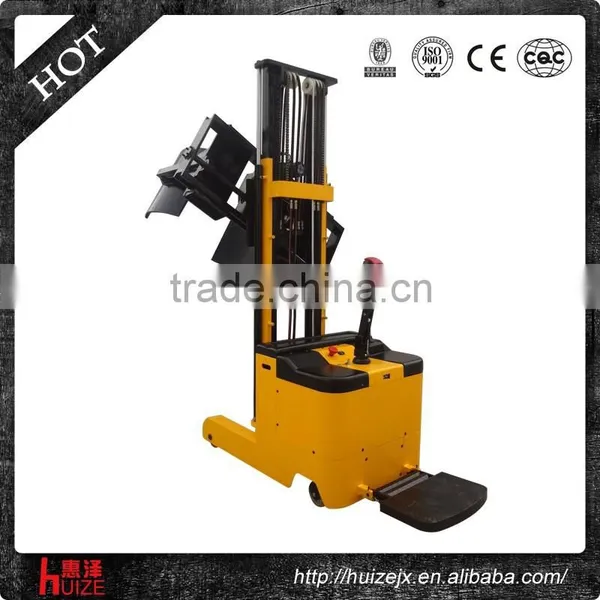

Help Center7-4-Full Electric Clamping and Flipping Paper Truck
Related Products
-
Semi Electric Paper Reel LifterUS$ 5,250 - 5,740MOQ: 1 Set -
Huize Small Electric Forklift Price for Sale in DubaiUS$ 10,820 - 10,821MOQ: 1 Set
-
Full Electric Roll Paper Lifter Pallet Truck With PedalUS$ 5,250 - 5,740MOQ: 1 Set
-
Mini Hydraulic Manual Oil Drum Lifter For ForkliftUS$ 4,920 - 5,180MOQ: 1 Set
-
Weighing Scale High Lift Hydraulic Pallet TruckUS$ 3,216 - 3,316MOQ: 1 Set
13-4-ORDERNo130004-MODEL :HZFDDDDZ-04 product cost |
FDDDDZ-200-3.5-90-210-0 |
|||
1 |
Characteristic |
|||
1.1 |
Name |
|
Full electric clamping and flipping paper truck |
|
2.1 |
Model |
|
HZFDDDDZ-04 |
|
3.1 |
Mast series |
|
Double |
|
4.1 |
Dynamic form |
|
Battery |
|
5.1 |
Operation type |
|
Standing |
|
6.1 |
Braking mode |
|
Electromagnetic braking |
|
7.1 |
Load capacity |
Q(Kg) |
200 |
|
8.1 |
Flipping way |
|
Electric rotation |
|
9.1 |
Hydraulic cylinder |
|
Single |
|
10.1 |
Color |
|
Red, yellow |
|
11.1 |
Surface treatment |
|
Paint |
|
2 |
Application |
|||
12.2 |
Main application |
|
Remove and shift in the warehouse and workshop in paper industry |
|
3 |
Wheel |
|||
13.3 |
Wheel type |
|
Polyurethane |
|
14.3 |
The number of driving wheel / balance wheel / loading wheel |
|
1/2/2 |
|
4 |
Size |
|||
15.4 |
Lifting height |
h3(mm) |
3500 |
|
16.4 |
Fixture minimum height |
h2(mm) |
540 |
|
17.4 |
Overall height when fixture up to maximum height |
h4(mm) |
4000 |
|
18.4 |
Overall length |
L1(mm) |
2245 |
|
19.4 |
Overall width |
b1(mm) |
1429 |
|
20.4 |
Fixture size |
Φf |
Φ1000 |
|
21.4 |
Flipping angle |
|
Unidirectional turn 90° |
|
22.4 |
Overall height |
h1(mm) |
2150 |
|
23.4 |
Front wheel size |
mm |
Φ150*50 |
|
24.4 |
Driving wheel size |
mm |
φ250*80 |
|
25.4 |
Balance wheel size |
mm |
Φ150*50 |
|
26.4 |
Channel width |
Ast(mm) |
1500 |
|
27.4 |
Minimum channel width truck turning around |
Ast(mm) |
3000 |
|
28.4 |
Turning radius |
Wa(mm) |
2500 |
|
5 |
Performance |
|||
29.5 |
Walking speed, loaded / unloaded |
Km/h |
4/6 |
|
30.5 |
Lifting speed, loaded / unloaded |
mm/s |
40/45 |
|
31.5 |
Falling speed, loaded / unloaded |
mm/s |
50/45 |
|
32.5 |
Climbing gradient, loaded/unloaded |
% |
6/8 |
|
33.5 |
Braking distance, loaded / unloaded |
mm |
500/400 |
|
6 |
Driving |
|||
34.6 |
Driving motor power |
KW |
1.2 |
|
35.6 |
Lifting motor power |
KW |
2.5 |
|
36.6 |
Battery voltage / capacitor |
V/Ah |
24/210(1 group) |
|
37.6 |
Battery repeated charging times |
|
750 |
|
38.6 |
Battery weight |
Kg |
187 |
|
39.6 |
Charger specification |
|
24V30A |
|
7 |
Weight |
|||
40.7 |
Gross weight (including package) / net weight |
Kg |
864/860 |
|
41.7 |
Charger gross weight (including package) / net weight |
Kg |
6.4/6 |
|
8 |
Production and delivery |
|||
42.8 |
Monthly production capacity |
Set |
80 |
|
43.8 |
Delivery time per one set |
Day |
20 |
|
44.8 |
Delivery time per ten sets |
Month |
1 |
|
9 |
Packaging and transport |
|||
45.9 |
Packing method |
|
Overall packaging |
|
46.9 |
Packaging |
|
Angle iron + bubble wrap |
|
47.9 |
Package size |
L/B/H(mm) |
2300*1500*2200 |
|
48.9 |
Charger package size |
L/B/H(mm) |
420*210*190 |
|
49.9 |
Matching boxes of each product |
|
2 |
|
50.9 |
Number of 20-foot containers |
Set |
7 |
|
51.9 |
Number of 40-foot containers |
Set |
14 |
|
10 |
Others |
|||
52.10 |
Product certification |
|
CE |
|
53.10 |
Product declaration name |
|
Other handling and loading equipment |
|
54.10 |
Deliver time |
days |
25days after our factory received T/T |
|
55.10 |
HS code |
|
8428909090 |
|
56.10 |
Order No |
|
130004 |
|
