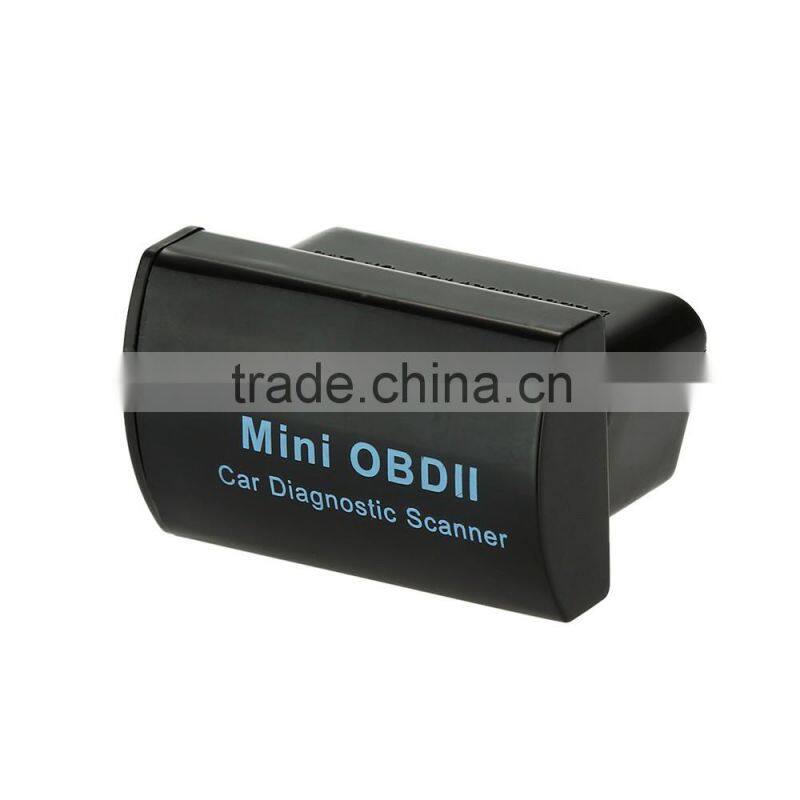

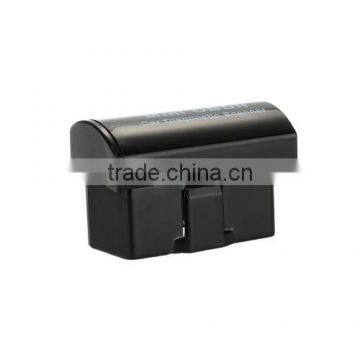

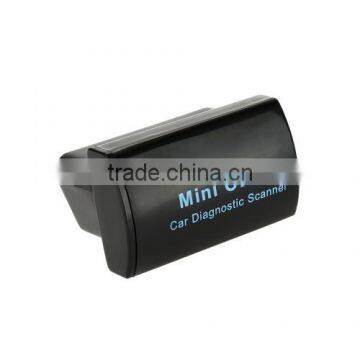

Mini V2.1 OBD OBD II Bluetooth Interface Auto Car Diagnostic Scanner Tool Code Reader Scanner for Android Symbian Windows

Features:
The newly developed high-quality wireless scan tool.
Enable to read diagnostic trouble codes.

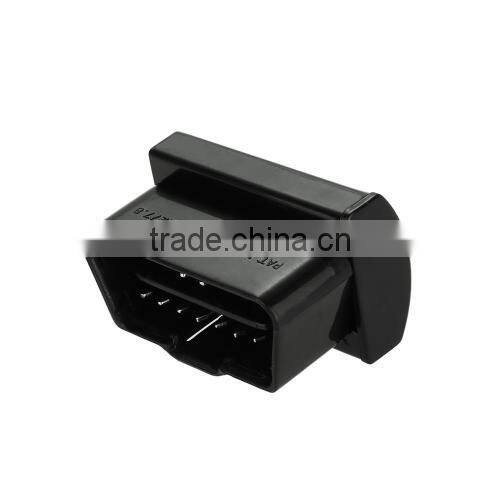

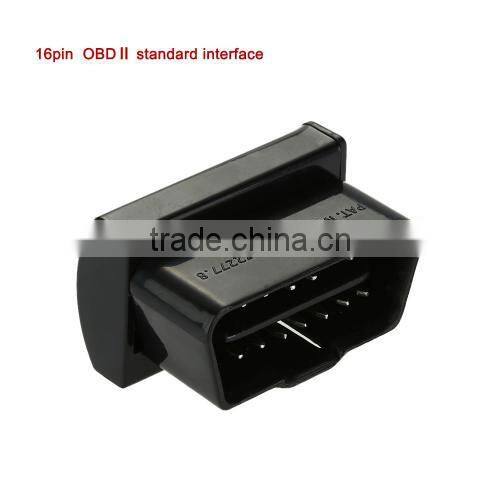

Small bluetooth interface with a 16 pin socket.
Support different kinds of devices to use this scan tool: for Android system phones, for Symbian system phones, for Windows XP and Windows7/8 computers.

Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle SpeedV2.1
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure

Specifications:
Support OBD-II protocols as follows:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatibility:
* Works on all OBDⅡ petrol cars
* Compatible with for Android, for Symbian for Windows XP,Windows7/8
Color: black, white, blue(optional)
Bluetooth version: 2.0
Operating voltage: 9V-16V
Operating current: 25mA
Operating temperature: -40℃~85℃
Operating humidity: <60%

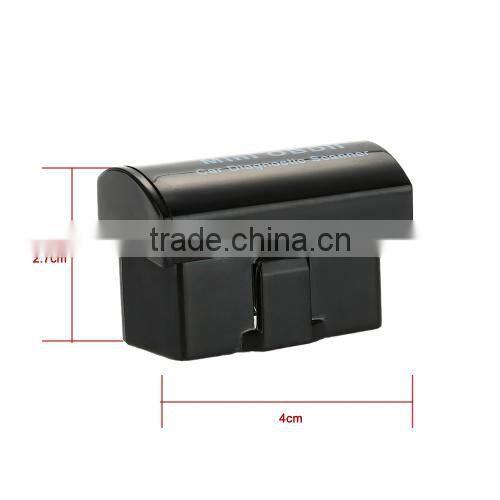

Package size: 7 * 5 * 3cm / 2.8 * 2 * 1.2in
Product Weight: Approx.21g / 0.7oz

Note:  It is not compatible with Nissan vehicles.

Package List:
1 * Bluetooth Diagnostic Scanner
