Home > Products > Lift Table > Capacity 500kg,6m Lifting Height Factory Price Scissor Lift

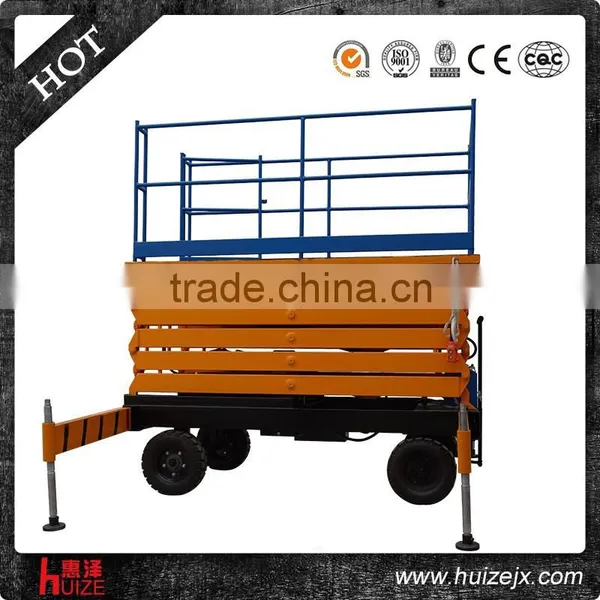

Capacity 500kg,6m Lifting Height Factory Price Scissor Lift
- shanghai
- T/T L/C D/P D/A Money Gram PayPal
You May Like
Product Details
| Model Number | SJY -500-6 | Lift Drive / Actuation | Electric Motor | |
| Power | 1.5KW | Rated Loading Capacity | 500kg | |
| Table Size | 1950mm*1000mm | Weight | 660kg | |
| Certification | CE,BV,SGS,ISO90001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Factory price scissor lift
Product description
factory price scissor lift
1 | Characteristic | ||
1.1 | Name |
| factory price scissor lift |
1.2 | Model |
| SJY -500-6 |
1.3 | Operator Type |
| Push by hand |
1.4 | Load capacity | Kg | 500 |
1.5 | Power voltage |
| 380V50HZ( three phase) |
1.6 | Lifting motor | KW | 1.5 |
1.7 | Scissors boom rectangular tube | mm | 100*40 |
1.8 | Scissors boom | Layer | 4 |
1.9 | Table-board |
| Diamond plate |
1.10 | Color |
| Green , red , blue and so on |
2 | Size | ||
2.1 | Lifting height | mm | 6000 |
2.2 | Operating height | mm | 7700 |
2.3 | Guardrail height | mm | 1000 |
2.4 | Chassis size | mm | 1950 (length)*1000 (width) |
2.5 | Support leg length | mm | 600 |
2.6 | Overall length | mm | 2000 |
2.7 | Overall width | mm | 1120 |
2.8 | Overall height | mm | 1150 |
2.9 | Channel width | Ast(mm) | 1000 |
2.10 | Minimum channel width truck turning around | Ast(mm) | 2050 |
5 | Performance | ||
5.1 | Lifting speed (loaded/unloaded) | mm/s | 60/80 |
5.2 | Falling speed (loaded/unloaded) | mm/s | 85/81 |
3.5m CE Electric power walkie rider forklif
Certifications factory price scissor lift
1ton 3.5m CE Electric power walkie rider forklift
Applications1 factory price scissor lift
Station,Port,Warehouse,Bridge,Equipment maintentance , the renovation of houses and so on
E mobile scis
After-sales service factory price scissor lift
1.End users:We can provide video to tell you how to maintain and repair;
Provide accessories for free in one year;
One year later ,provide these accessories at cost and charge
express fee.
2.Retailer:To provide perfect after-
sales service ,our company send someone to retailer’s country.
F.A.Q CE mobile scissor lift
1.Q:Does your factory have favorable?
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
CE mobile scissor lift
