Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HUIZE | Model Number: | HZSJY0304-01 |
Lift Mechanism: | Scissor Lift | Lift Drive / Actuation: | Electric Motor | Power: | 22kw |
Rated Loading Capacity: | 300kg | Min. Lifting Height: | 4m | Max. Lifting Height: | 14m |
Table Size: | 2100mm*1100mm | Overall Dimensions: | 3.1m*1.6m*2m | Weight: | 300KG |
Certification: | CE,ISO9001 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

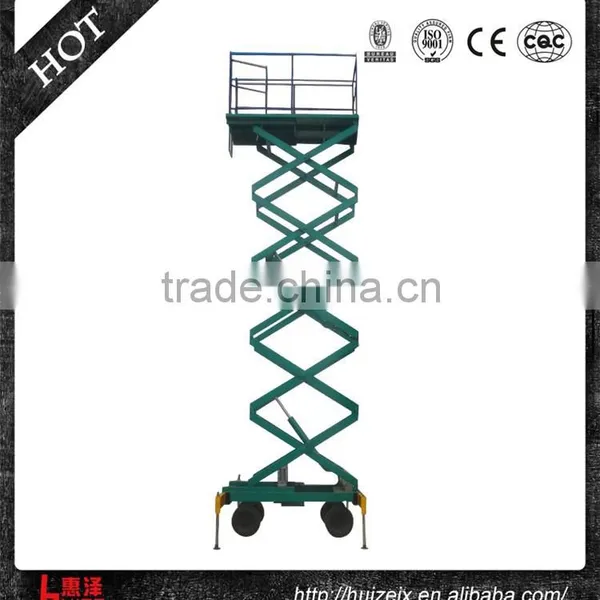

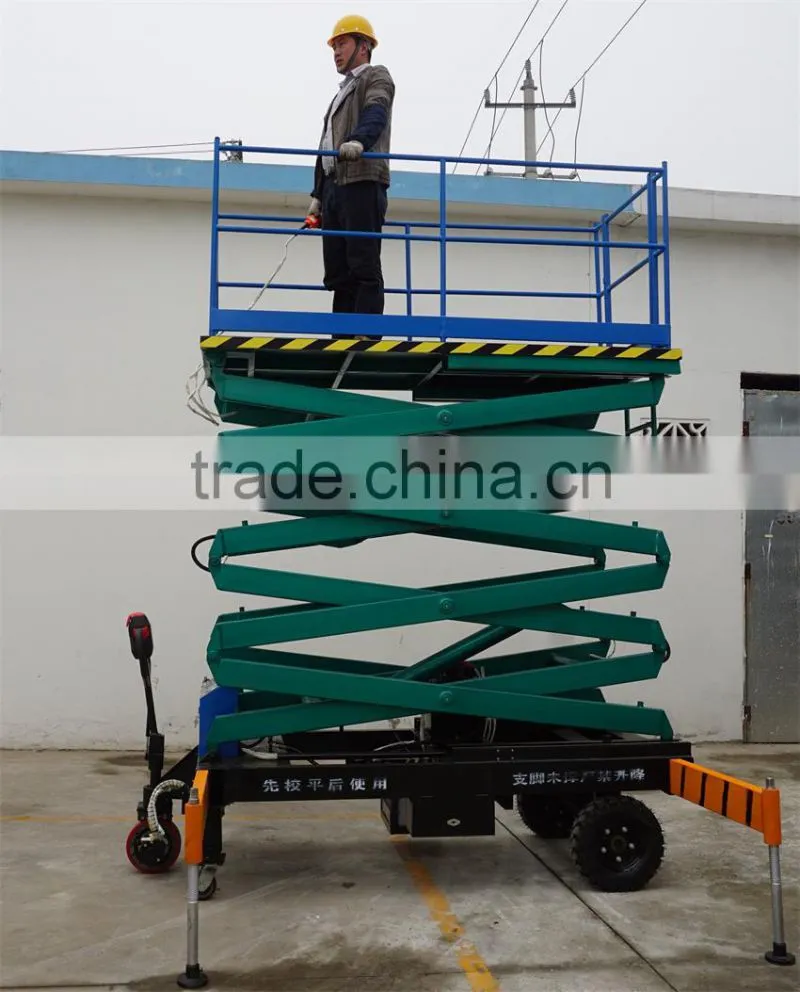

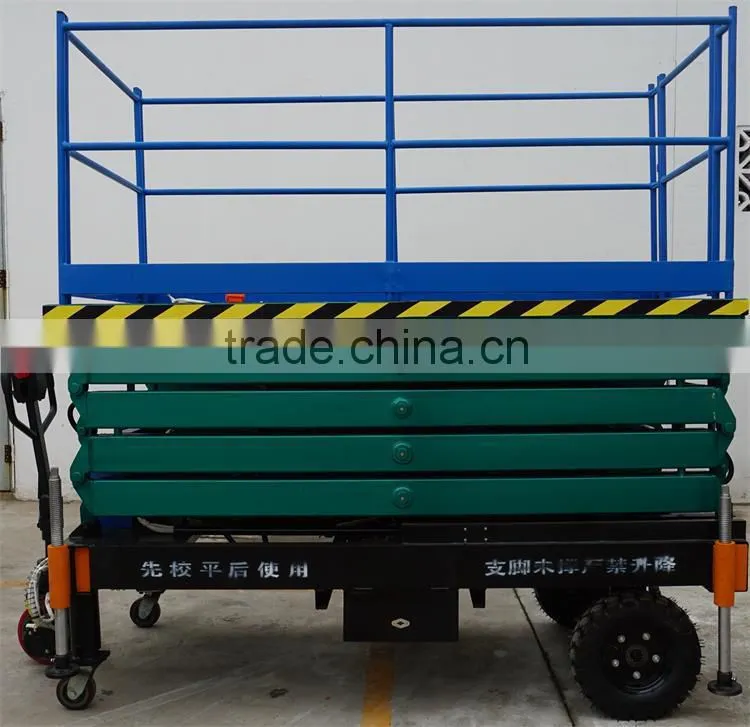

Upright Scissor Lift Platform for aerial work
Characteristics
1.Scissor Lift can go up and down vertically.It is special equipment for work high above the ground
2. For rated capacity 300kg, the lifting height can be 4-14m,for rated capacity 500kg, the lifting height can be 4-12m,and for rated capacity 1000kg, the lifting height can be 6-11m
3. 380V 3-phase power
4. Widely used for machinery installation ,equipment repair,buidling maintenance in the station,horb,bridge,and factory.
Feature
1. | Feature | ||
1.1 | Name |
| Scissor Lift |
1.2 | Model No |
| HZSJY0304-01 |
1.3 | Manipulation |
| Manual Push |
1.4 | Rated Capacity |
| 300kg |
1.5 | Supply Voltage |
| 380V50HZ Three-Phase |
1.6 | Lifting Motor |
| 1.1KW |
1.7 | Size of tube for scissor arms |
| 100mm*40mm |
1.8 | Scissor arm |
| 3 layers |
1.9 | Platform |
| Diamond Plate |
1.10 | Color |
| Red, Yellow ,Blue ,Gray |
1.11 | Surface Treatment |
| Baking Painted |
1.12 | Qty of Hydrocylinder |
| 2 pcs |
1.13 | Size of Hydrocylinder |
| φ80mm |
2. | Wheel | ||
2.1 | Wheel Type |
| Gas Wheel |
2.2 | wheel Size |
| Φ200mm |
3. | Size | ||
3.1 | Lifting Height |
| 4000mm |
3.2 | Work Height |
| 5700mm |
3.3 | Handrail Height |
| 1000mm |
3.4 | Chassis Size |
| 1700mm*850mm |
3.5 | Supporting Leg Length |
| 500mm |
3.6 | Aisle Width |
| 1000mm |
3.7 | Min Aisle Width for Turning Around |
| 1800mm |
4. | Performance | ||
4.1 | Lifting Speed(with/without load) |
| 60/80 mm/s |
4.2 | Lowering Speed(with/without load) |
| 85/81 mm/s |
5. | Production and delivery | ||
5.1 | Monthly Production Capacity |
| 20 sets |
5.2 | Delivery Time for One Set |
| 7 work days |
5.3 | Net Weight |
| 300kg |
For watch operation video, pls kindly contact us
1. Supply required products with competitive price
2.Good after sales service
3.Weclome customers visit our factory to inspect and experience products
4.Supply our professional suggestion to help customers sell and use our products better.
Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Electric Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.
We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.
Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts.
Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.
1. Q: Where is your factory located? Hong far is your factory away from Shanghai Airport?
A: Our factory is located in Taizhou City,Jiangsu ,China, and It is 3 hours driving from Shanghai International Airport, and we can arrange a car to pick you up if you are interested to visit our factory.
2. Q: How to guarantee products quality?
A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.
3. Q: What products are your hot sales products ?
A: Our hot sales products are Electric Pallet Truck, Semi-Electric Pallet Truck,Electric Stacker,Electric Reach Stacker,Counter Balance Stacker, Aerial Order Picker.
4. Q: What Products are Our Special Products?
A: 1) 5T/8T Electric Pallet Truck, 2) Electric Lift Platform,3)Electric Stainless Steel Proof-Explosion Pallet Truck,4) 3T Electric Stacker,5) Electric Yarn Roll Pallet Truck,6) Electric Oil Drum with automotive clamp and tilt,7) Electric Paper Roll Truck with automotive clamp and tilt,8) Electric Pallet Truck and Stacker with Scale
5. Q:What is your advantage?
A: --Quick Delivery
--Low Maintenance
--Excellent Service
--High Quality
--Lower Cost
