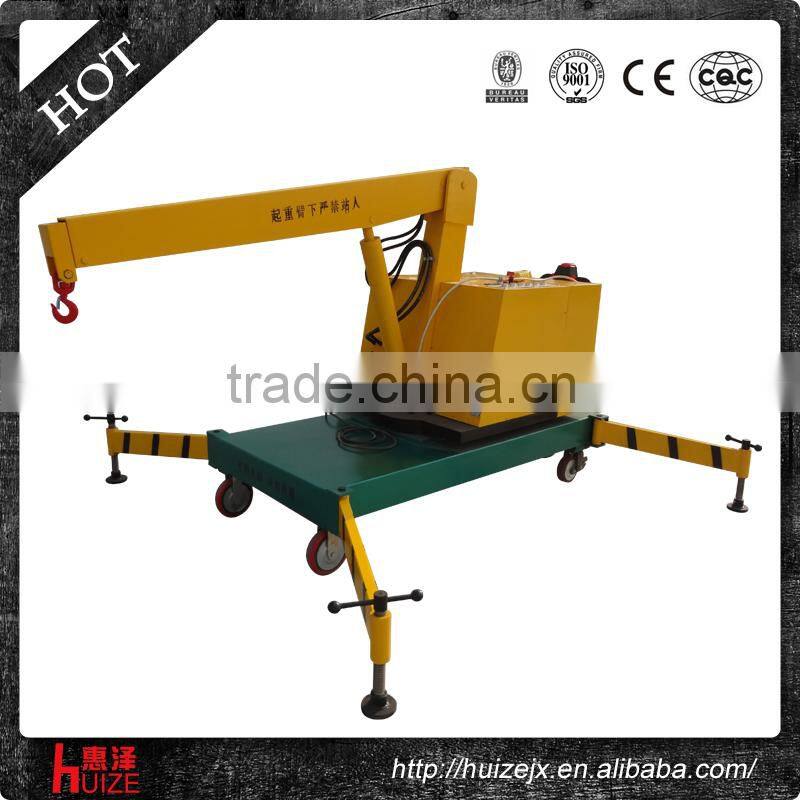

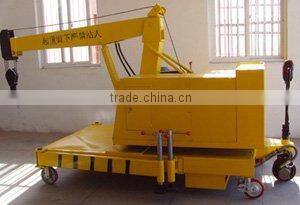

19-Passed egypr electric market need CIQ certificate of Self walking Electric Rotation Crane made in china HuiZe forklift

Ms Jona China [sales manager]

 (0086-18018292279 Email: sales11(@))
Taizhou Huize Machine Co.,Ltd
ADD:Group 10, Sanchen Village, Zhangdian Town, Jiangyan District,
Taizhou City, Jiangsu, China 225300
Office Tel:  86 523 88548678       Office Fax: 86 523 88548166
Website:     Alibaba: http://huizejx.en.china.cn
(Our factory since2006)

19-Crane machine PRICE LIST (3)

19-ORDERNo19.0001-HUIZEMODEL HZSDC-1T PRODUCT CODE

SDC -1T

1

Characteristic

1.1

Name

Crane

2.1

Model

HZSDC-1T

3.1

Power form

Battery

4.1

Operation Type

Standing

5.1

Rated lifting

Q(Kg)

1000

6.1

Color

red  yellow  blue  gray

7.1

Main application

Goods lifting, loading and unloading

8.1

Surface treatment

spray paint

2

Hydraulic cylinder

9.2

Taking the hydraulic cylinder

mm

Inside diameterφ50

10.2

Rise in the hydraulic cylinder

mm

Φ80

3

Wheel

11.3

air-filled wheel

mm

Φ40-8

12.3

Driving wheel

mm

Φ250-80

13.3

Driving whee, wheel quantity

1,4

4

Size

14.4

Rising  height

mm

3000

15.4

Hook off the ground

mm

0

16.4

Pad Size

mm

1900 length*1040 width

17.4

Arm length

mm

2000-2500

18.4

length of rope

m

20

19.4

diameter of wire rope

mm

Φ8

20.4

Rotation Angle

°

360°

21.4

Supporting feet length

mm

800

22.4

Overall length

mm

3750

23.4

Overall width

mm

1040

24.4

Overall height

mm

1900

25.4

passage width,with1000×1200 pallet

Ast(mm)

1250

26.4

Minimum channel width truck turning  around

Ast(mm)

3800

5

Performance

27.5

Travel speed(loaded/unloaded)

km/h

4/6

28.5

Rising speed(loaded/unloaded)

mm/s

40/45

29.5

Falling speed(loaded/unloaded)

mm/s

50/45

30.5

Climbing gradient(loaded/unloaded)

%

5/8

6

Driving

31.6

Driving motor

Kw

1

32.6

 lifting motor

Kw

1.5

33.6

Battery voltage/capacitance

V/Ah

24/120(2)

34.6

Battery charged repeatedly

Times

300

35.6

Battery Weight

Kg

30

37.6

Charger

24V15A

38.6

Driving control type

AC

7

weight

39.7

Gross/net weight

Kg

1296/1290

8

Production and delivery

40.8

Monthly production capacity

set

20

41.8

Delivery time for per one set

day

15

9

Packing and shipping

42.9

packing method

Packaging as a whole

43.9

packing

Angle iron + bubble wrap

44.9

packing size

L/B/H(m)

3.75*1.05*1.95

45.9

Charger packing size

L/B/H(m m)

170*320*190

46.9

How many boxes does each product have

2

47.9

Number of 20-foot containers

set

5

48.9

Number of 40-foot containers

set

10

10

Others

49.10

Specify product certification

Other self-propelled cranes with lugs

50.10

FOB Deliver time

days

20days after our factory recieved T/T

51.10

HS Code

8426411000

52.10

Order No

19.0001
