fire extinguisher foam filling machine WITH UARS

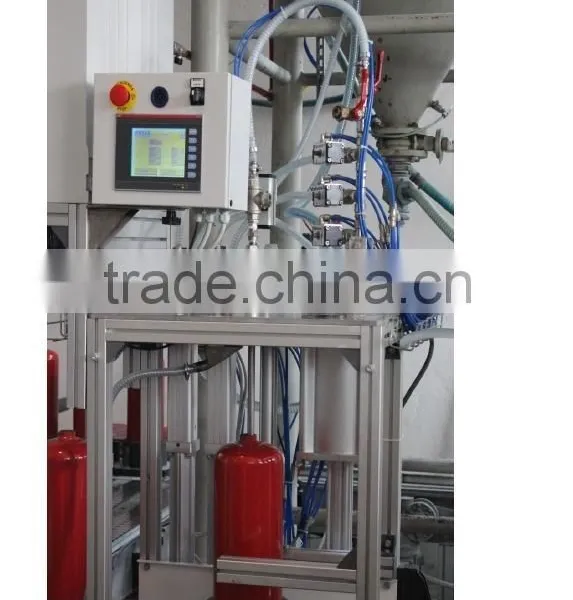

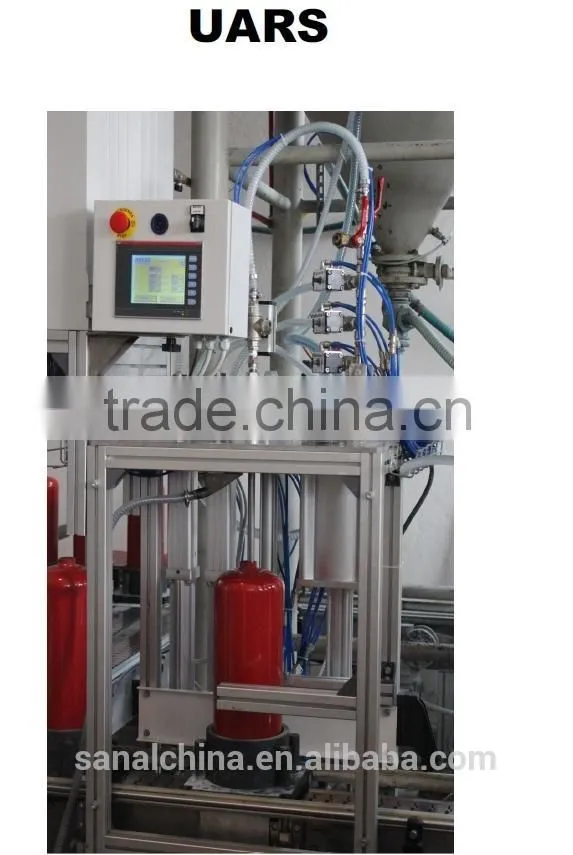

UARS
UNITY 'AUTOMATIC FOR THE FILLING OF FOAM EXTINGUISHERS
TECHNICAL INFORMATION
- Overall dimensions totals approximately L x W x H 1300 x 900 x 2300 mm;
- Power: 220 V. + air 8 bar.
The unit is made entirely of steel and aluminum and can be integrated into production lines
Existing extinguishers, or can work as independent unit.
The system provides for the filling of fire extinguishers Trailer mounted and portable of all kinds, mixing components, of almost absolute precision, can manage up to three products + water.
The products to be mixed are aspirated directly from their original tank, both by ground from an elevated position, the water directly from the aqueduct or origins customer supply.
The process, very fast, is completely Automatic and is also present a system drip to avoid soiling the line production or his workbench.
The dosing and mixing are operated by a modern PLC programmed directly from Technical Sanal, work orders are manageable a comfortable and intuitive touch screen, from which we can set many functions,
some of which are:
Recipes mixtures set and set fire extinguisher to extinct
Management process in liters;
Management process in kilograms;
Mixed management process;
Change in percentage of each product inserted;

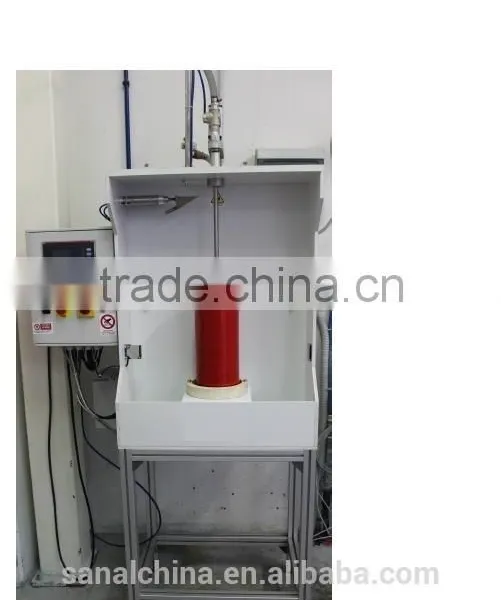

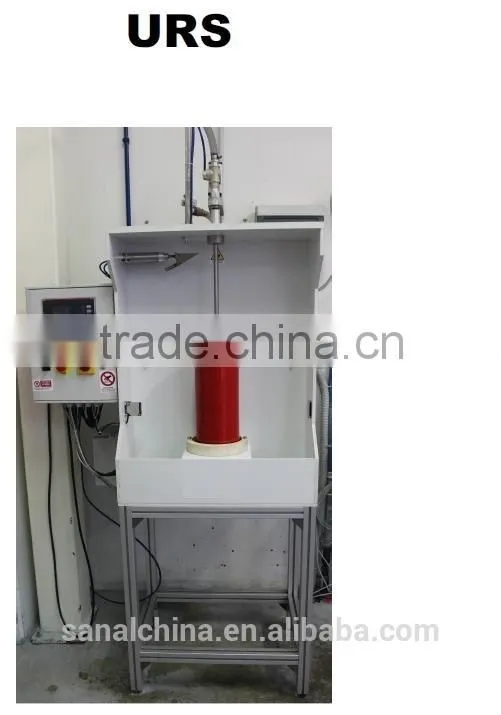

URS
UNITY 'INDEPENDENT FOR THE FILLING OF FOAM EXTINGUISHERS TECHNICAL INFORMATION
- Overall dimensions totals approximately L x W x H 1300 x 900 x 2300 mm;
- Power: 220 V. + air 8 bar.
The unit is made entirely of steel and aluminum. The system provides for the filling of fire extinguishers Trailer mounted and portable of all kinds, mixing components, of almost absolute precision, can manage up to three products + water. The products to be mixed are aspirated directly from their original tank, both by ground from an elevated position, the water directly from the aqueduct or origins customer supply. The dosing and mixing are operated by a modern PLC programmed directly from Technical Sanal, work orders are manageable a comfortable and intuitive touch screen, from which we can set many functions, some of which are: Recipes mixtures set and setextinguisher fire extinguisher;
Management process in liters;
Management process in kilograms;
Mixed management process;
Change in percentage of each product inserted; Setting manual or automatic;

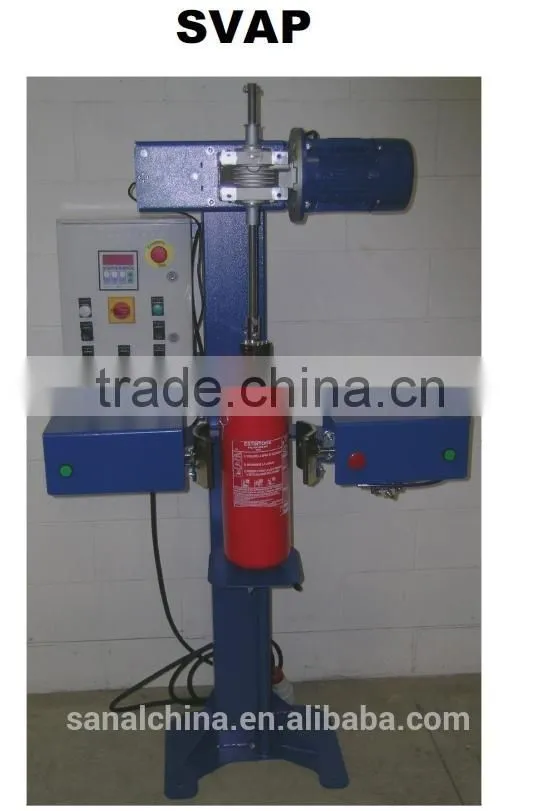

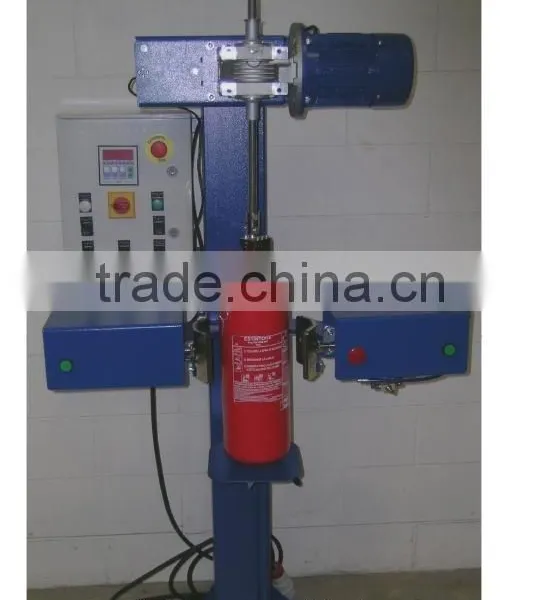

SVAP
TECHNICAL INFORMATION
- Overall dimensions totals approximately L x W x H 930 x 550 x (1670 + 300) mm;
- Weight 120 kg;
- Nr.2 pneumatic pistons 50 sqmm side thrust force 141 Kn to 8 bar.
- Power: 220 V. + air 8 bar;
- Absorption 1 Kw.
Unit for the unscrewing and screwing of valves for dry chemical and foam.
The unit SVAP allows screwing and unscrewing valve types of fire extinguishers to powder foam, from 1 to 12 Kg.
It is equipped with a system for measuring and setting torque. the key universal clamp is interchangeable for
be able to meet all needs. For a fast placing the extinguisher vice double piston is self-centering.
Equipped with every precaution for the safety operator, is made of carbon steel baked enamel finish.

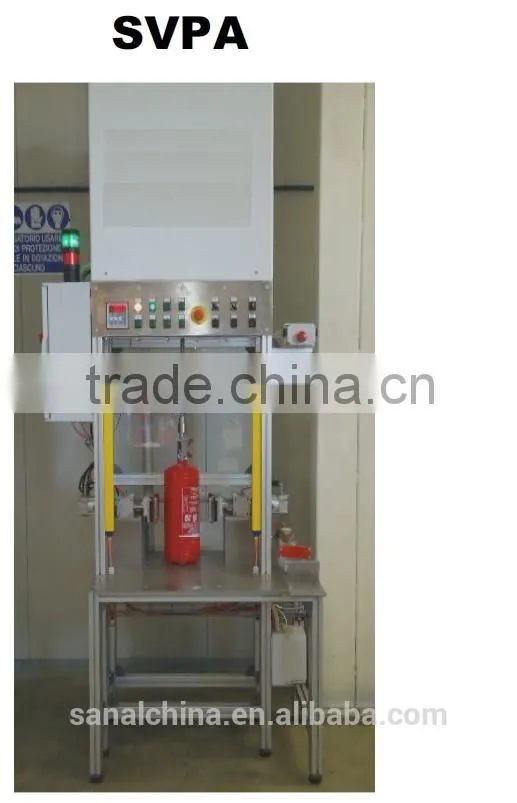

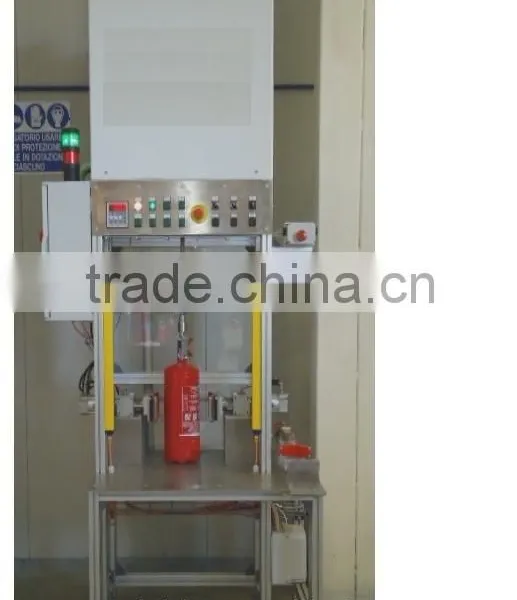

SVPA
TECHNICAL INFORMATION
- Overall dimensions totals approximately L x W x H 1200 x 900 x 2600 mm;
- Nr.2 pneumatic pistons 50 sqmm side thrust force 141 Kn to 8 bar.
- Speed tightening approximately 3.5 seconds in rotation
- Tightening cycle complete approximately 18 seconds
- Power supply 220 V + compressed air 8 BAR
- Absorption 1.0 Kw
- Weight 320 kg.
Automatic unit screwing - unscrewing valves portable fire extinguishers powder / foam .The unit SVPA allows screwing and unscrewing valves of all types of portable fire extinguisher powder - From 1 to 12 kg foam. E'equipped with a sensor torque from control panel that allows to tighten the valves to measure default and absolutely precise. The operator can activate the automatic cycle and perform other tasks while the machine screws or unscrews, or it can operate in the manual version.Possibility to work on all types of valves thanks to the interchangeability of the key universal, even for special valves with drawing on request.
The machine is equipped with the grip central double piston for the centering of the tank and grip of service for activities related to maintenance, as the pressurization or mounting components.
The unit is equipped with all the devices for the operator safety with physical protections and electronic. E 'entirely made of aluminum, Steel and PVC, totally impervious to rust.
SVA CO2
The equipment allows SVACO avoid or tighten valves on cylinders C02 of any capacity. It is provided with a pneumatic clamp piston 125 sq mm that locks tanks from 2 to 50 kg. capacity. the tightening has the torque and speed can be set from keyboard with automatic locking.
It is equipped with two-hand control in compliance with safety regulations. optional:
- Protective cage.
- SVACO2 160 version with piston
160 sq mm.
ECHNICAL INFORMATION
- Overall dimensions totals approximately L x W x H (1100/1400) x 650 x (2900/3900) mm;
- Weight 250 kg;
- Necessary connections: 380V sp 16 A 4-pole more air 8 bar;
- Maximum speed of screwing 25 g / m;
- Diameter cylinders grip range from 80 to 320 mm;
- Step universal key from 20 to 50 mm;
- Steel frame in focus;
- Arm tightening extensible cylinders height up to 2 meters;
- Phase electric motor with gear reduction unit 1.1 Kw;
- Control panel with inverter electronically controlled torque;
- Optional: protective cage with safety relay and universal key from 30 to 70 mm.
Optional - Protective cage with safety relay

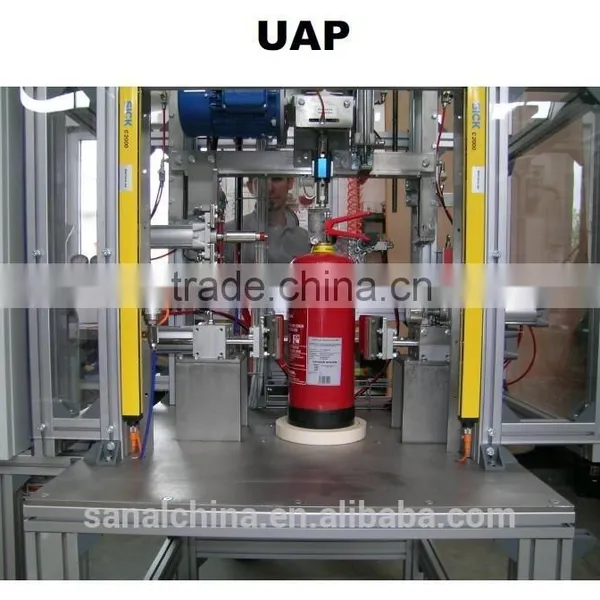

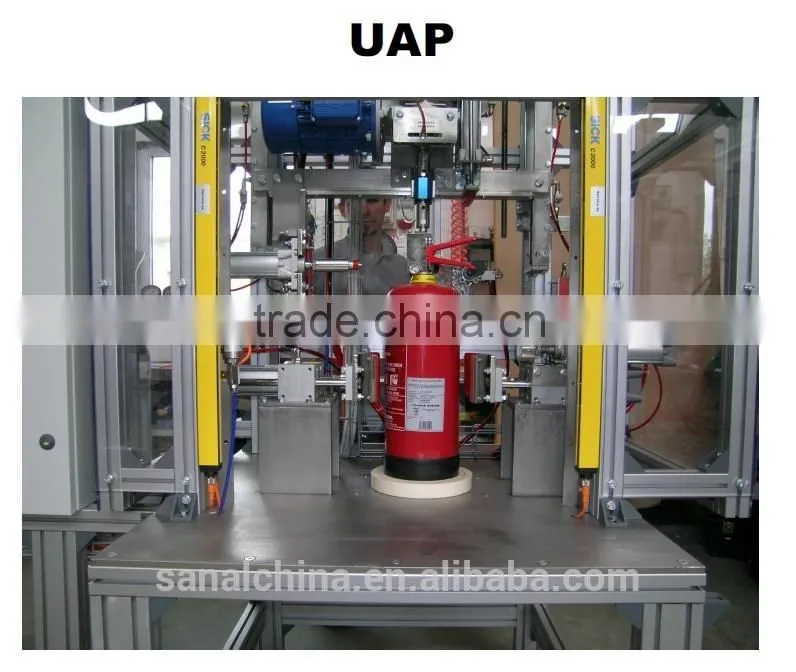

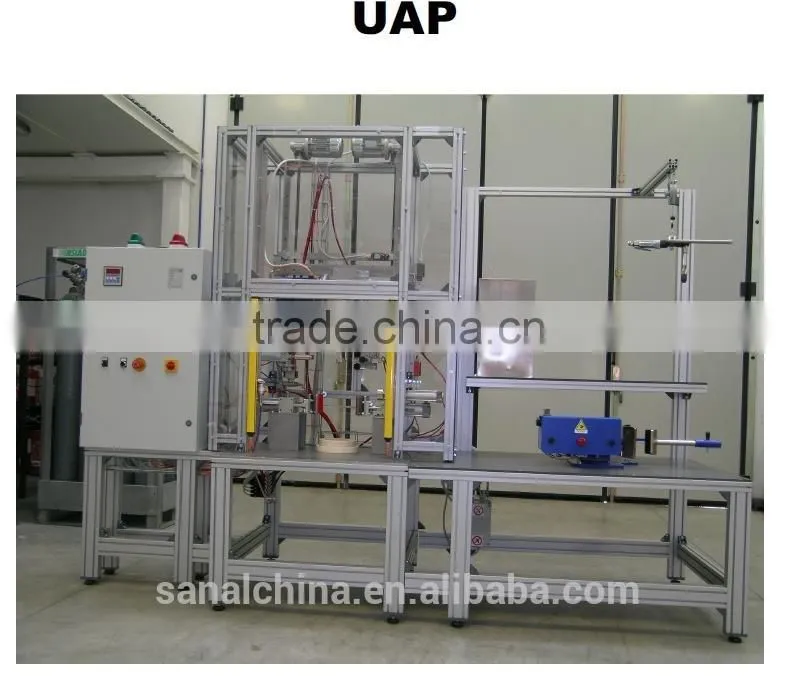

UAP
Automatic unit for screwing and pressurization of portable fire extinguishers to dust and foam, from 4 to
12 Kg / l.
The unit automatically controls the tightness and the pressurization of portable fire extinguishers and powder
foam. The logic is controlled by PLC, while the controls are activated by a practical touch scrreen.
The clamping force can be set by the framework, is managed by a torque sensor shaft-tightening,
the unit performs a complete work cycle in about 25 sec.
Completely made of stainless steel and aluminum is equipped with all safety required by current regulationsfield safety.
It can be supplied with work table with screw suction pipes, pneumatic vice and tap
30x1.5 tire.
TECHNICAL INFORMATION
- Overall dimensions totals approximately L x W x H 2887 x 1000 x 2450 mm complete with table support;
- Overall dimensions totals approximately L x W x H 2000 x 1000 x 2450 mm without support table;
- Speed for a full course about 25 sec;
- Power supply 380 V 16A + 5 P compressed air 8 BAR
- Absorption 3.0 Kw
- Weight 320 kg.
