DRN/S 2700K R50 5-11W Warm White Colour CFL Reflector Spot

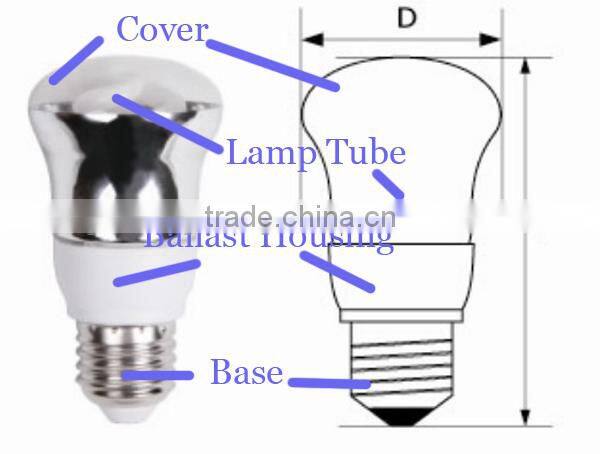

The Structure of CFL Low Energy Globe Light Bulb
| Lamp Base | Material:Nickle plated Iron/Copper/Aluminum |
| Base Type: ES(E27),SES(E14),BC(B22) | |
| Ballast | Specialized Ballast,excellent design and assembling,10000hours |
| Lamp Cover | Shape:reflector spot |
| Tube Material: 100% tri-phosphor; Cover Material:Glass and others. | |
| Ballast Plastics | PBT(fireproof) |
The Specifications of CFL Reflector Spot
| Certifications | CE,ROHS,ISO9001,UK regulations |
| Shape | reflector spot |
| Wattage | 5w,7w,9w |
| Lumen | >150-280m |
| Tube Size | t2(7-8mm) |
| Cover Diameter | 50mm or others |
| Tube Powder Material | 100% tri-phosphor |
| Voltage | 110-130V;220-240V AC |
| Color Temperature | 2700-6500K(warm white,cool white,daylight) |
| Frequency | 50-60Hz |
| Color Rendering Index | ≥80Ra |
| Power Factor | ≥0.5 |
| Lifetime | ≥10000Hours |
The Dimensions of 5-9W CFL Reflector Spot
| Model | Power | Cover Size(mm) | Lamp Size(mm) | Qty/carton | Carton Size |
| DRN/S-5 | 5w | 50mm | L95xD50 | 50pcs | 58x29x14cm |
| DRN/S-7 | 7w | 50mm | L95xD50 | 50pcs | 58x29x14cm |
| DRN/S-9 | 9w | 50mm | L95xD50 | 50pcs | 58x29x14cm |
Principles of CFL
CFL is a type of light bulb which uses fluorescence as its primary means of creating visible light. A CFL consists of a glass tube which is coated with a fluorescent material on the inside. Fluorescent materials are able to absorb certain frequencies of light and then glow, emitting new light at a greater wavelength than they absorbed. CFL tubes are filled with a mixture of gases containing trace amounts of mercury which becomes excited and emits ultraviolet light when an electrical current is sent through it. The ultraviolet light is absorbed by the fluorescent coating on the inside of the glass tube, and is converted into visible light which has a longer wavelength than ultraviolet light. The amount of energy needed to excite the gas is far less than the amount of energy needed to heat up the filament in a normal light bulb, and as a result, less energy is lost in the form of heat.
Advantages of CFL
- No flicker,no glare,soon start.
- wonderful design,beautiful appearance.
- 80% energy saving than ordinary incandescent lamp,save cost.
- more than 8000hours lifetime,much longer than incandescent lamp.
- Excellent color rendering index.
- Energy Saving Bulb With PBT fireproof plastics material.
- Eco-friendly,eyes-protection.
- All color temperatures to choose,2700-6500K optional
- Application: Marketplaces, hotels, houses, offices museums etc.

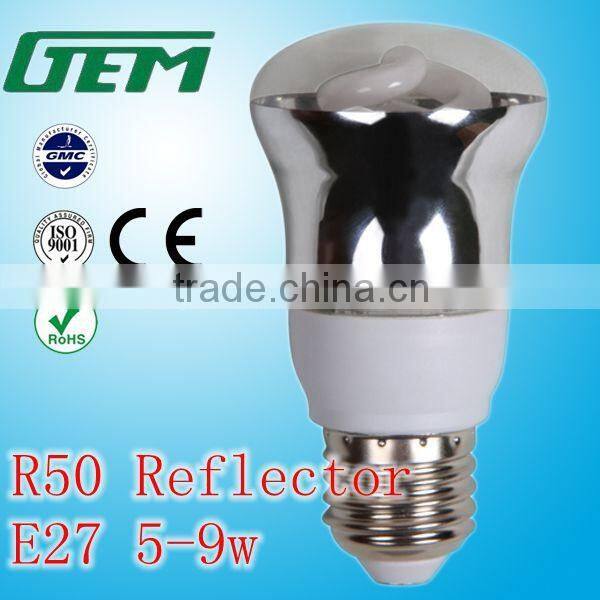

Pictures of CFL Reflector Spot

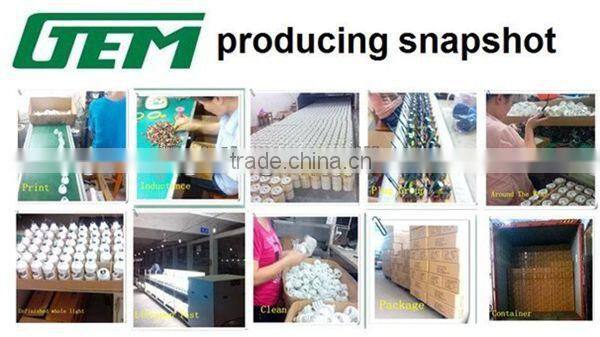

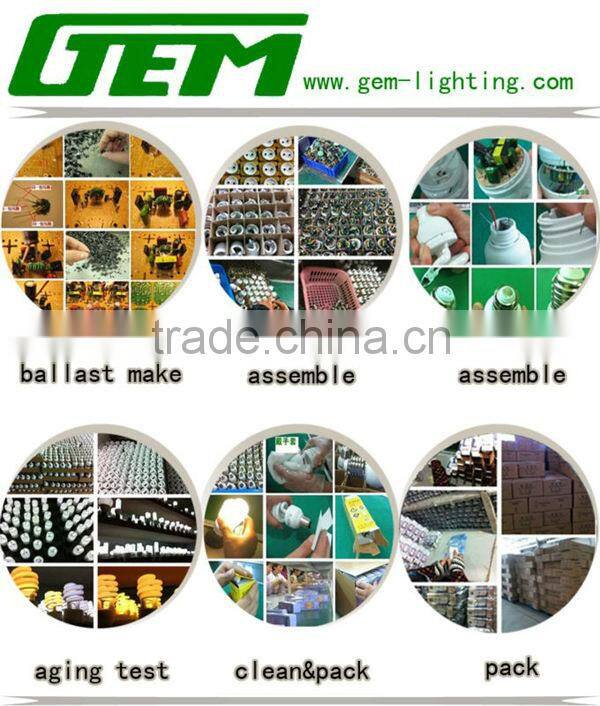

The Production Process of CFL
The Packaging of 5-9W CFL Reflector Spot
| Model | Power | Cover Size(mm) | Lamp Size(mm) | Qty/carton | Carton Size |
| DRN/S-5 | 5w | 50mm | L95xD50 | 50pcs | 58x29x14cm |
| DRN/S-7 | 7w | 50mm | L95xD50 | 50pcs | 58x29x14cm |
| DRN/S-9 | 9w | 50mm | L95xD50 | 50pcs | 58x29x14cm |

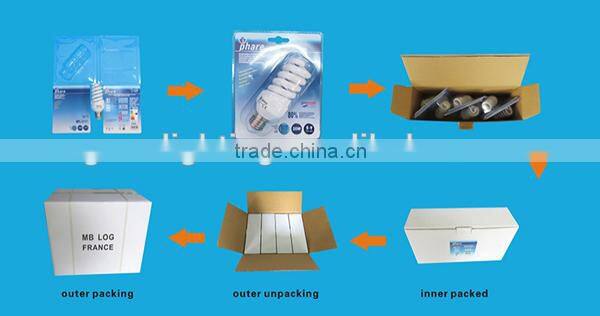

Color Box Package:
Blister Box Package or Foam Box Package:
Shipping Way:
Our Services:
| Reputation | Our company has set up a reliable reputation around the world |
| Service | Good service are waitng for your visiting |
| OEM | Acceptable |
| Inquiry | Any inquiries will be replied within 24 hours. |
| Efficiency | Finish your requirements as soon as possible. |
| Concept | GEM.That means green,economic and modern. |
| Quality is first,service is second and the business is the third. | |
| Customer is first, staff is second and business the third. |
Our Lighting Exhibitions
2008-Dubai
2010-Guangzhou
2010-Hongkong
2011-Japan
2011-Russia
2012-Guangzhou
2013-Turkey
2014-Poland
Our Company Information:
- Company Name: Hangzhou JingJie Electronic Lighting Co.,Ltd
- Specialized Products: Energy Saving Lamp,Ballast,Indoor LED lamp
- Established Time: Established In 2003
- Brand: GEM
- Company Location:16# HeTing Road,QingShan Industrial Park,Lin'an,Hangzhou City of China
- 4 years gold supplier in alibaba,China.
Certifications:
FAQ:
Q:What's the deliver time?
25-40 days after making the order.
Q:What's the MOQ?
2000 pieces; However,more quantities,more cheaper the prices are.
Q:Are samples free?
Free.
Q:What's the payment?
T/T,30% deposit before production,70% balance to be paid before shippmet; L/C at sight.
Q:Where are our main markets in the world?
North America, South America, Europe, South-east Asia.Besides,we want to explore other international market in the world.
Q:How is the package of cfl reflector spot?
Box(color box/foam box/blister box) + Middle Carton+Outer Carton;
1piece/box; 50pieces/carton;carton size:58x29x14cm.
Business begins from friends.So just feel free to contact us.we will be very proud.
