E27 B22 Spiral 4000K Cool White T2 23W Energy Saving Lamp With Tri-color
Dimensions of T2 23W Energy Saving Lamp
| Model | Power | Tube Size(mm) | Lamp Size(mm) | Qty/carton | Carton Size |
| T2 half spiral-23 | 23W | 7mm | L123xD54 | 50pcs | 62x31x17cm |
| T2 full spiral-23 | 23W | 7mm | L123xD54 |
50pcs | 62x31x17cm |
Structure of T2 23W Energy Saving Lamp
| Lamp Base | Material:Nickle plated Iron/Copper/Aluminum |
| Base Type: E27/B22 | |
| Ballast | Specialized Ballast,excellent design and assembling,8000hours |
| Lamp Tube | Shape: full spiral/half spiral |
| Powder Material: 100% tri-phosphor | |
| Ballast Housing | PBT(fireproof) |
Main Technical Datas of Cool White T2 23W Energy Saving Lamp
| Certifications | CE(TUV),ROHS,ISO9001 and others |
| Lamp Shape | half spiral/full spiral |
| Power | 23w |
| Lumens |
>1400lm |
| Tube Powder Material | 100% tri-phosphor |
| Input Voltage | AC 110-130V;220-240V |
| Color Temperature | 2700/4000/6400K |
| Frequency | 50-60Hz |
| Color Rendering Index | ≥80Ra |
| Power Factor | >0.5-1 |
| Lifetime | ≥8000Hours |
Principles of Energy Saving Lamp
Energy Saving Lamp is a type of light bulb which uses fluorescence as its primary means of creating visible light. An energy saving lamp consists of a glass tube which is coated with a fluorescent material on the inside. Fluorescent materials are able to absorb certain frequencies of light and then glow, emitting new light at a greater wavelength than they absorbed. Energy saving lamp tubes are filled with a mixture of gases containing trace amounts of mercury which becomes excited and emits ultraviolet light when an electrical current is sent through it. The ultraviolet light is absorbed by the fluorescent coating on the inside of the glass tube, and is converted into visible light which has a longer wavelength than ultraviolet light. The amount of energy needed to excite the gas is far less than the amount of energy needed to heat up the filament in a normal light bulb, and as a result, less energy is lost in the form of heat.
Advantages of Energy Saving Lamp
- No flicker,no glare,soon start.
- wonderful design,beautiful appearance.
- 80% energy saving than ordinary incandescent lamp,save cost.
- more than 8000hours lifetime,much longer than incandescent lamp.
- Excellent color rendering index.
- Energy Saving Bulb With PBT fireproof plastics material.
- Eco-friendly,eyes-protection.
- All color temperatures to choose,2700-6500K optional.
- Application: Marketplaces, hotels, houses, offices museums etc.

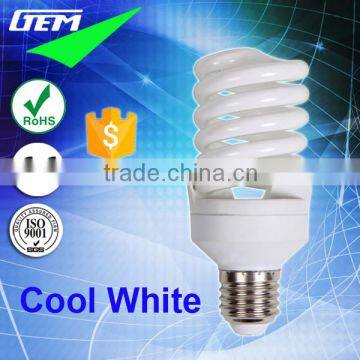

Pictures of Spiral T2 23W Energy Saving Lamps
Other Main Energy Saving Lamps
Main Production Flow
1.Material Test
2.Ballasts Make and Test
3.Tube and Plastics Assemble
4.The Whole Lamp Assemble
5.Aging Test
6.Clean and Test
7.Packaging
1.Packaging
box(color box/foam box/blister box)+inner box+carton;
1pcs/color box;10pcs/inner box;50pcs/carton;
carton size:62x31x17cm.
2.Shipping
By sea,by air or by road transportations.
