Specifications

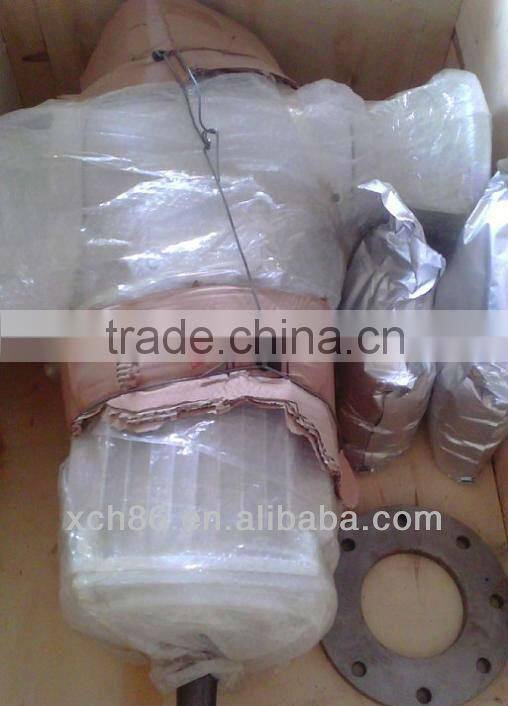

5kw wind electrical generator1. Green energy
2. Easy to intall
3. The stator is pure copper wire
4, CE
5kw wind electrical generator
domestic wind generator 5kw wind electrical generator
Rated power | 5KW |
blade material |
FRP strengthened |
Wind rotor diameter(m) | 5 | Woking voltage(v) | DC240V/AC220V |
Blade quantity | 3 |
Generator style | PM,three phase,AC |
Start-up wind speed(m/s) | 3 | Speed regulation method | Electromagnetic brade+yawing |
Working wind speed(m/s) | 3.0-25 | Stop method | Electromagnetic brade+manual |
Survived wind speed(m/s) | 40 | Wind turbine main bodyweigt(kg) | 150 |
Start torque(n/m) | 4.5 | Zipper under the weight(kg) | 265kg/9m |
Rated wind speed(m/s) | 10 | Independent under the weight(kg) | 1000kg/10m |
Max power(w) | 7.5KW | Conteoller model | 240V100A |
Rated rotate speed(rpm) | 260 | Battery specifications | 12V150AH*20 |
Characteristics for 5kw windmills for electricity Hot Sale
1. Optimum aerodynamic shape design: high efficiency, low noise.
2. Centrifugal pitch controlled mechanism: 3m/s low wind speed startup; 3-12m/s wind speed, following wind rotor rotate speed to adjust blade angle at optimum TSR, run in high efficiency; over rated wind speed, wind rotor never goes to over speed and has stable control; 3-35m/s wind speed, wind turbine can run smoothly.
3. Direct drive permanent magnet generator, low startup resistance moment, constant running ability of over loading 1.5 times, maintenance free for more than 30000 hour.
4. Safety control: has aerodynamic brake, electric magnet brake, mechanical brake and manual stop mechanism.
5. Sealed slip ring, no cable twist;
6. Streamline design.
7. Long acting anticorrosive treats, no corrosion in 15years.
