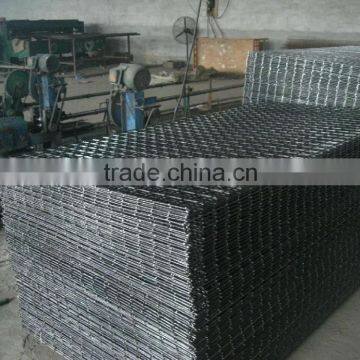

Welded Wire Mesh Panel Manufacturers
US$ 10 - 35
/ Roll
1 Roll(Min. Order)
- Xingang
- T/T
You May Like
Product Details
| Material | Galvanized Steel Wire | Type | Welded Mesh | |
| Application | Farm Fence | Weave Style | Plain Weave | |
| Wire Diameter | BWG14~BWG23 | Technique | Welded Mesh | |
| Model Number | ZK003 | Brand Name | ZK |
Product Description
High Quality Low price of Welde Wire Mesh

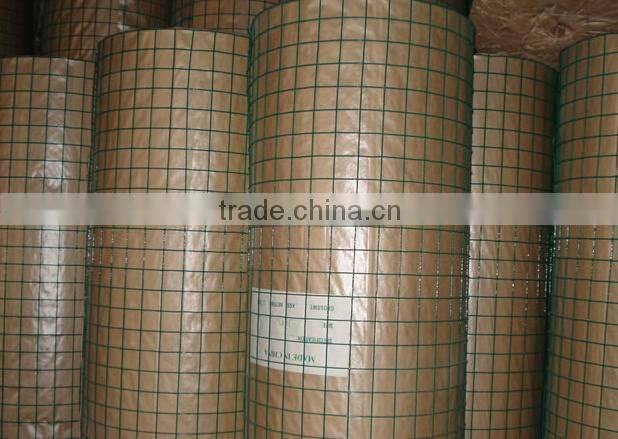

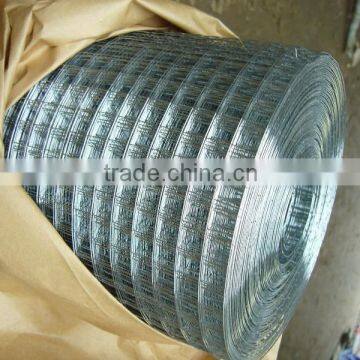

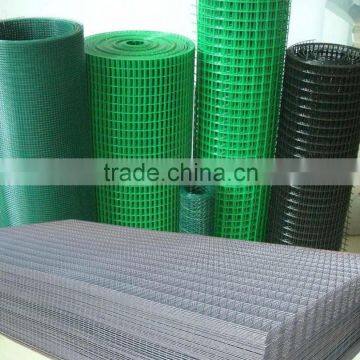

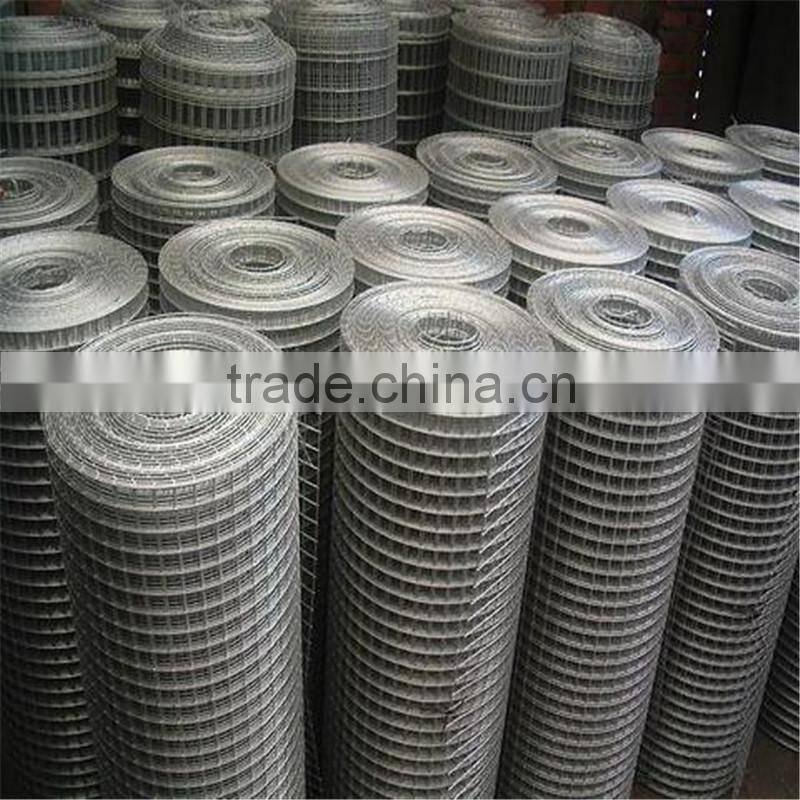

Galvanized and PVC Coated Welded wire mesh of ZK
Material : low carbon galvanized wire mesh
Procedure: hot-dip galvanized before welding, hot-dip galvanized after welding, electro-galvanized before welding, electro-galvanized after welding

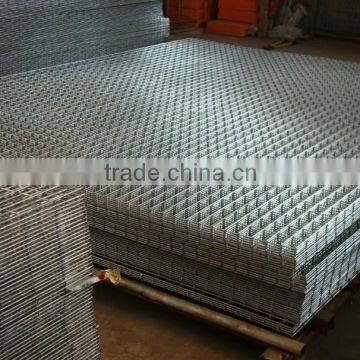

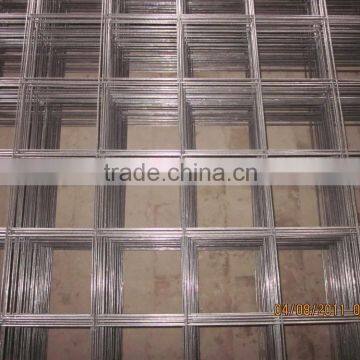

Product features:Product specifications: 1/4, 3/8, 1/3, 1/2, 5/8, 3/4, 1, 1.5, 2, until 12-inch mesh size are available Welded wire mesh is level and flat in surface with sturdy structure.
Usage : Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
Specifications :
Gauge: BWG12 TO BWG24
Mesh: 3/8",5/8",1/4",1/2",3/4",1" to 6" to 7"
Length: 10' to 300'

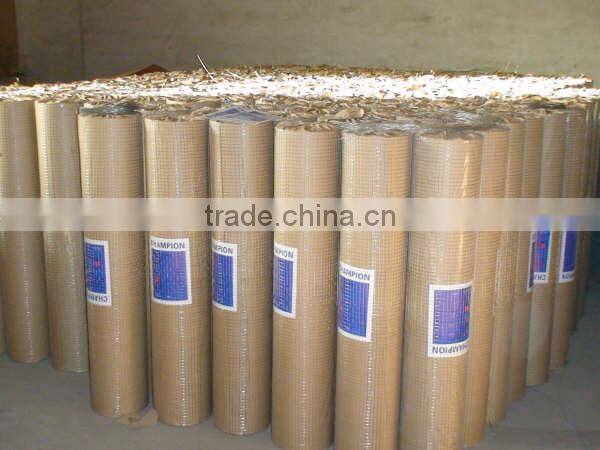

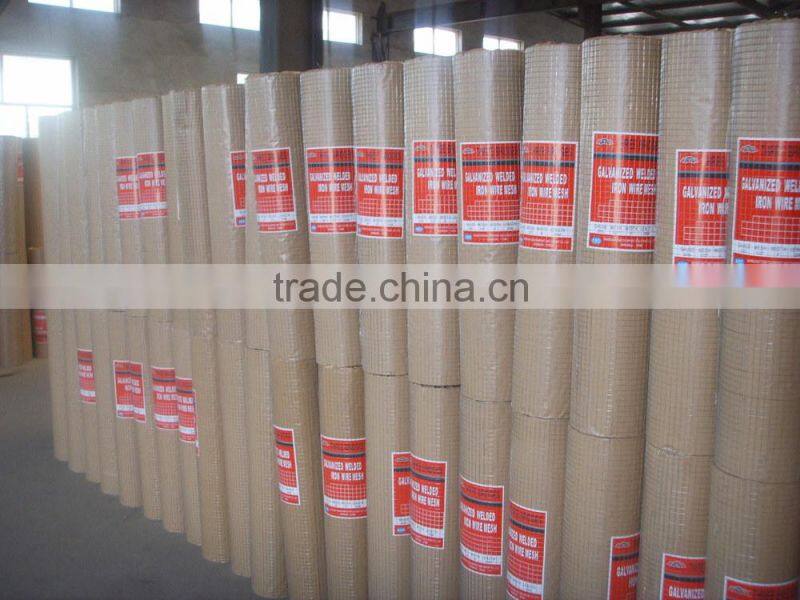

Packing: moister-proof paper, PVC film, nude packed
GAUGE | MESH | W X L | N.W/ROLL (KGS) | LOAD CAPABILITY (ROLLS/20 ' ) |
BWG14 | 1" X 1" | 3' X 100' | 56 | 240 |
2" X 1" | 3' X 100' | 41 | 245 | |
BWG15 | 1" X 1" | 3' X 100' | 42 | 275 |
2" X 1" | 3' X 100' | 32 | 285 | |
BWG16 | 1" X 1" | 3' X 100' | 35 | 300 |
2" X 1" | 3' X 100' | 27 | 360 | |
3/4" X 3/4" | 3' X 100' | 47 | 300 | |
BWG17 | 1" X 1" | 3' X 100' | 28 | 360 |
1" X 1/2" | 3' X 100' | 41 | 330 | |
3/4" X 3/4" | 3' X 100' | 36 | 335 | |
BWG18 | 1" X 1" | 3' X 100' | 19 | 475 |
1/2" X 1/2" | 3' X 100' | 40 | 415 | |
1" X 1/2" | 3' X 100' | 29 | 415 | |
3/4" X 3/4" | 3' X 100' | 26 | 440 | |
BWG19 | 1" X 1" | 3' X 100' | 14 | 565 |
1/2" X 1/2" | 3' X 100' | 28 | 490 | |
1" X 1/2" | 3' X 100' | 20 | 525 | |
3/4" X 3/4" | 3' X 100' | 19 | 545 | |
BWG20 | 1" X 1" | 3' X 100' | 10 | 740 |
1/2" X 1/2" | 3' X 100' | 20 | 580 | |
3/4" X 3/4" | 3' X 100' | 13 | 630 | |
BWG21 | 1/2" X 1/2" | 3' X 100' | 16 | 700 |
BWG22 | 1/2" X 1/2" | 3' X 100' | 13 | 800 |
BWG23 | 1/4" X 1/4" | 3' X 100' | 20 | 800 |
