PLASTIC VACUUM FORMING MACHINE FOR RUIT TRAY FORMING

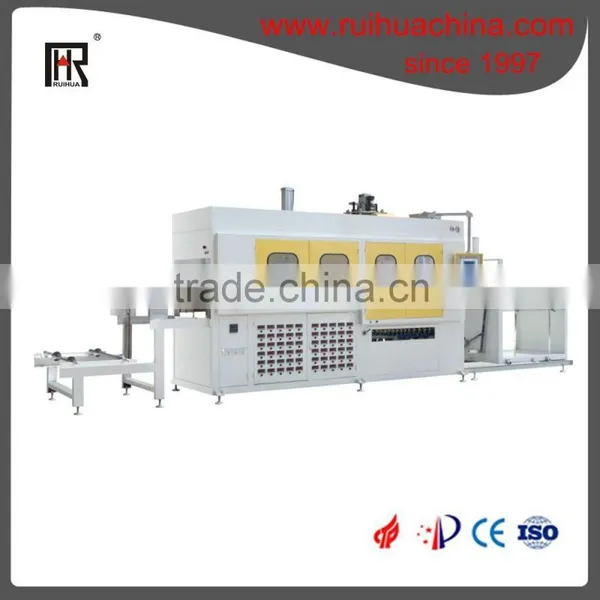

(Vacuum forming machinery, thermoforming machinery, plastic machine,thermoforming machine) DXS-700/1200C-1 automatic computerized high-speed vacuum forming machines (thermoforming machines) are our third generation products. Comparing with DXS-700/1200A machine, it is more professional design, more perfect construction and better configuration. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating; forming, cooling, mold ejecting, cutting at one blow. This machine has luxury configuration and gets reliable performance and handy operation.
Application Area:
It is suitable for thermoforming PS, HIPS, PVC, PET, PP, flocking sheet that can
produce varieties of blister package and blister tray, for example: curatorial injection
tray, oral liquid tray, mobile telephone tray, cookies tray, egg tray and one-off tableware.
Main technical parameters:
Model: DXS-700/1200C-1
Length of forming 760-1,200mm
Width of forming 500-700mm
Height of forming less than 165mm
Production speed 60-720 cycles/h
Power of oven 24kW
Power of vacuum pump motor 3kW
Vacuum pump capacity 100m³/h
Power of air compressor 15kW
Air displacement of air compressor 2m³/min
Voltage 380/220V 50Hz
Overall dimensions 7,950 x 1,450 x 2,550mm
Weight 3000kg
Packing:
Wooden package.
