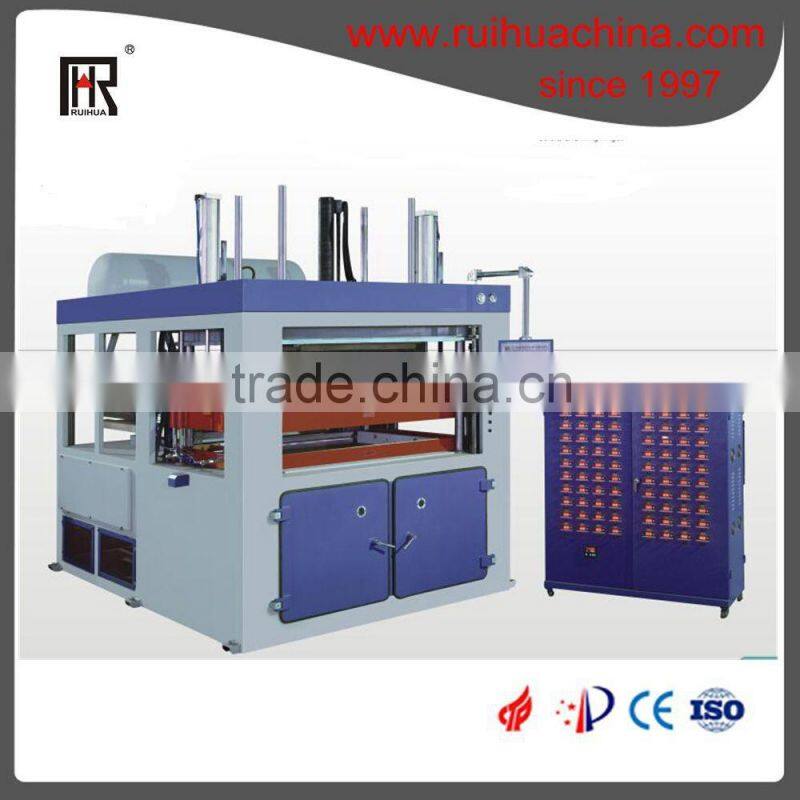

Susi Cpp With pp Susi Container Vacuum Forming Machine
US$ 27,500 - 28,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, tray blister
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Ningbo Port or Shanghai Airport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Infill Vacuum Forming Machine Made in China With ce CertificateUS$ 30,000 - 35,000MOQ: 1 Set -
pp Fruit Tray Vacuum Forming Machine DXS7001200US$ 1 - 2MOQ: 1 Set
-
Cpp and pp Sushi Tray Vacuum Forming Machine Ruian Wenzhou ZhejiangUS$ 1 - 2MOQ: 1 Set
-
Sushi Container Vacuum Forming MachineUS$ 1 - 2MOQ: 1 Set
-
Pet 12 Pcs Egg Tray Vacuum Forming MachineUS$ 1 - 2MOQ: 1 Set
Condition
New
Product Type
Other, tray blister
Place of Origin
Zhejiang, China
Brand Name
Ruihua
Model Number
DXS-700/1200
Voltage
380V/50Hz
Power(W)
15KW~38KW
Dimension(L*W*H)
6080x1420x3240mm
Weight
2700kg
Certification
CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Product Application of DXS series automacti computerized high-speed vacuum forming machine/thermoforming machine/blister forming machine.
DXS series automaticcomputerized high-speed vacuum forming machine,it is designed by the principle of mechanical-electrical-pneumatic intergration.adopts plc vontrol system.panel and ac volatge mater adjustment,it is full-automatic forming equipment for thermoforming plastic sheet includes feeding,heating,forming,cooling,mold ejecting,cutting at one blow,these machines have luxury configuration and gets reliable performance and handy operation.
Main Features
1. Width of forming can be adjusted freely on customer’s request from 300 to 740mm.
2. Feeding the material by induction motor & feeding error within 4mm. Length set can be realized by programming on panel, expediently and precisely.
3. Shaking mold ejecting: 1--20 per second free adjustment, adjustable amplitude, upper mold second down, degassing before mold ejecting, insure products not to deform and easily mold ejecting.
4. Customers can choice combining mold (up to 18 combining specs) or fixed spec mold.
5. Machine is controlled by PLC system, with a 5.7 inches panel, handy manipulation. Second vacuum, vacuum advancing and upper mold second down are also available.
6. Advance feeding sheet can avoid over temperature of first feed, utilizing sheet efficiently and reducing wastes.
7. Cooling the product by 7-UP automatic spray gun that made in Taiwan can insure forming fast, eject easy.
8. Close oven, adjusted the voltage percentage of heater by digital power control which can insures the heater temperature steady and save power.
9. Guide post receives hardness treatment. With composite bearing, it doesn’t need oil supply, which can reduce package contamination, keep the machine clean.
10. Mid-brake fluctuation controlled by a cylinder to avoid the asynchronism that controlled by two cylinders. It can protract the cylinder life and running smoother.
11. Adopts the removable up & lower mold device to avoid centrifugalism and insure running smooth when the mold length is shorter than standard mold.
2. Feeding the material by induction motor & feeding error within 4mm. Length set can be realized by programming on panel, expediently and precisely.
3. Shaking mold ejecting: 1--20 per second free adjustment, adjustable amplitude, upper mold second down, degassing before mold ejecting, insure products not to deform and easily mold ejecting.
4. Customers can choice combining mold (up to 18 combining specs) or fixed spec mold.
5. Machine is controlled by PLC system, with a 5.7 inches panel, handy manipulation. Second vacuum, vacuum advancing and upper mold second down are also available.
6. Advance feeding sheet can avoid over temperature of first feed, utilizing sheet efficiently and reducing wastes.
7. Cooling the product by 7-UP automatic spray gun that made in Taiwan can insure forming fast, eject easy.
8. Close oven, adjusted the voltage percentage of heater by digital power control which can insures the heater temperature steady and save power.
9. Guide post receives hardness treatment. With composite bearing, it doesn’t need oil supply, which can reduce package contamination, keep the machine clean.
10. Mid-brake fluctuation controlled by a cylinder to avoid the asynchronism that controlled by two cylinders. It can protract the cylinder life and running smoother.
11. Adopts the removable up & lower mold device to avoid centrifugalism and insure running smooth when the mold length is shorter than standard mold.
12. Special chain orbit to reduce the noise and friction between chain and orbit. Save the material
13,we use humanization design，design the guard plate with four parts,and that kind of design can reduce the repair cost after machine with many years working,we do special art for the guard plate, and make is stronger also,other company use aluminum as guard plate,but aluminum material is easy be out of shape after 3-4 years machine working,
14.OEM or ODM product will be welcomed .

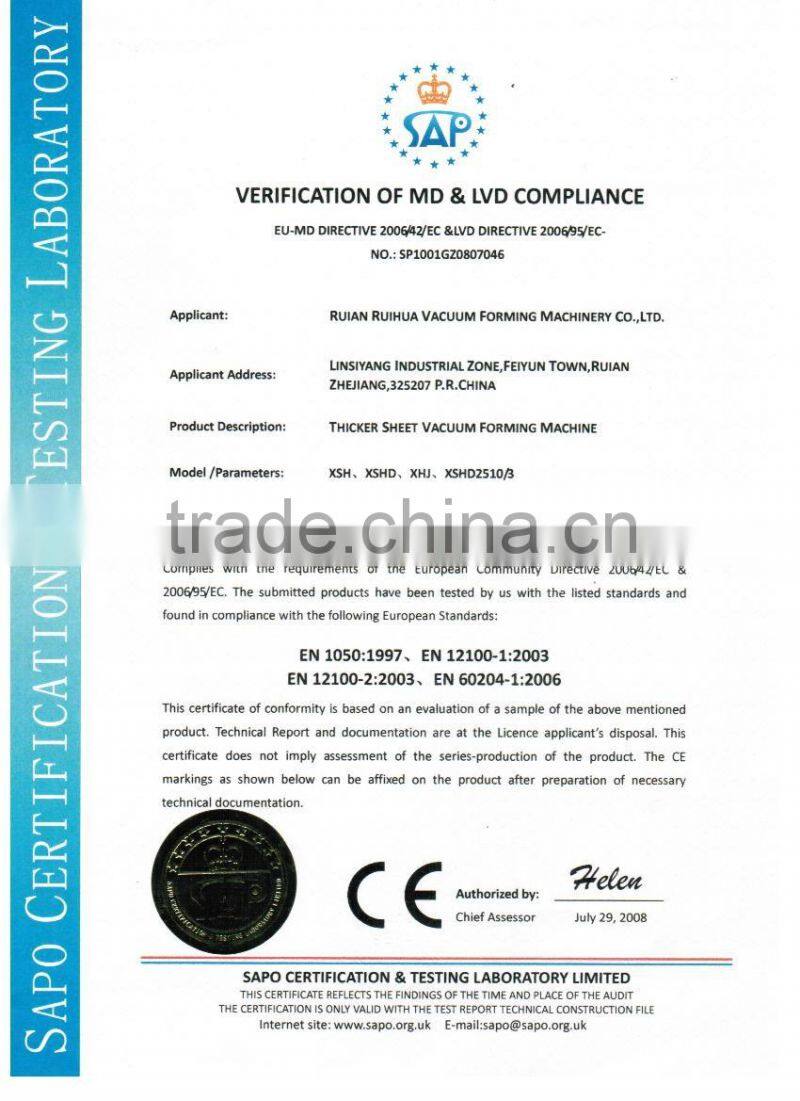

Certifications
Detailed Images
Machine Size:

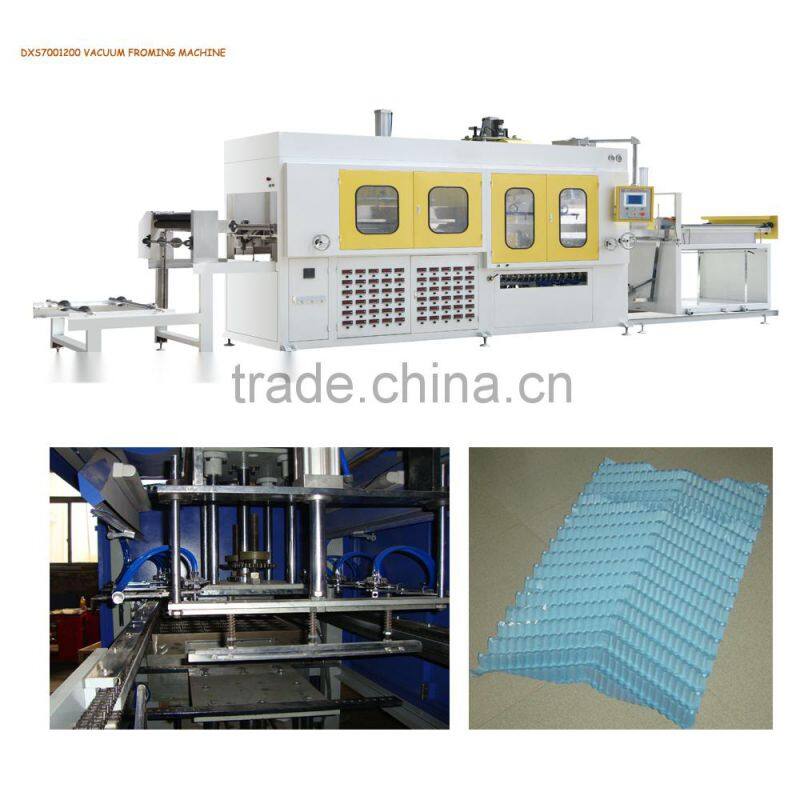

Name: DXS7001200 Vacuum forming machine
Brand: Ruihua or Ruijia
Original: China
This machine need a40 ft high container to hold on.
Max forming size: 760*1220mm
Vacuum pump
Name:Vacuum pump
Brand: BUSCH
Original: Germany
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Packing & Delivery
