Home > Industrial Equipment & Components > Power Transmission Parts > Transmission Chain > Have a Look !! Simplex Roller Chain 415 and so on
US$ 8.65 - 89.62
MOQ: 500 Meters
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Roller Chain
Material:
Other, 40MN
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industry Chain Roller Chains SBR 80/100/120/140US$ 1.12 - 50.35MOQ: 500 Meters -
Long Life and High Load-bearing Solid Bushing and Solid Roller Chains 80-SBRUS$ 20.5 - 88.5MOQ: 300 Meters
-
High Quality Conveyor Chain With Special Nickel-plated Attachments(A Series)US$ 4.5 - 10.5MOQ: 300 Meters
-
High Quality Nickel Plating Conveyor Chain With Special Attachments(A Series)US$ 4.5 - 10.5MOQ: 300 Meters
-
DSC/dsh Conveyor Chain With Special Attachments(A Series)US$ 4.5 - 10.5MOQ: 300 Meters
Standard or Nonstandard
Standard
Type
Roller Chain
Material
Other, 40MN
Tensile Strength
Strong
Place of Origin
Zhejiang, China
Brand Name
DSC
Model Number
415
company advantage
DongSheng is specialized in producing all kinds of standard and non-standard chains, e.g. A or B series chains, automobile chains, stainless steel chains, combine harvester chains, heavy-duty cranked link transmission chains, stereo garage chains and maintenance-free chains etc.
Product Description

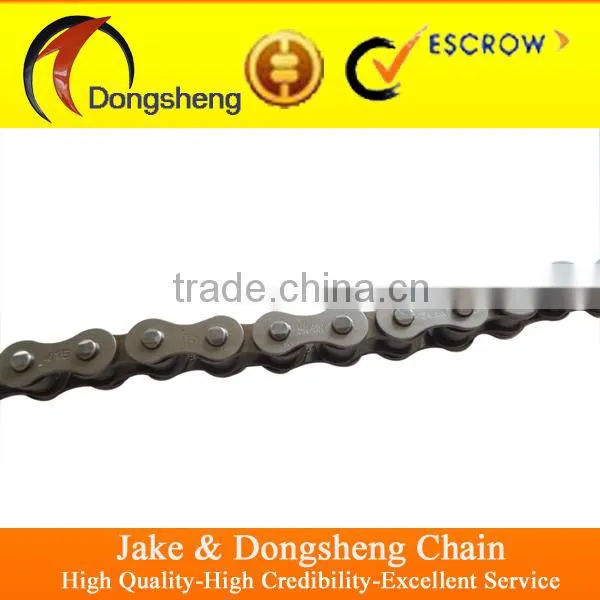

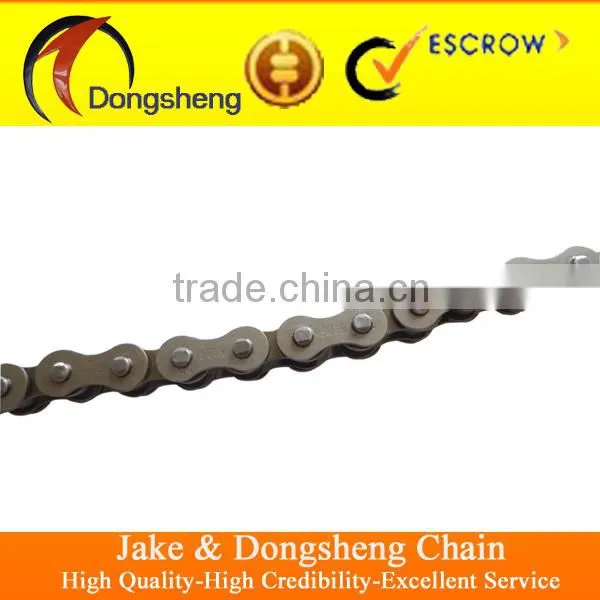

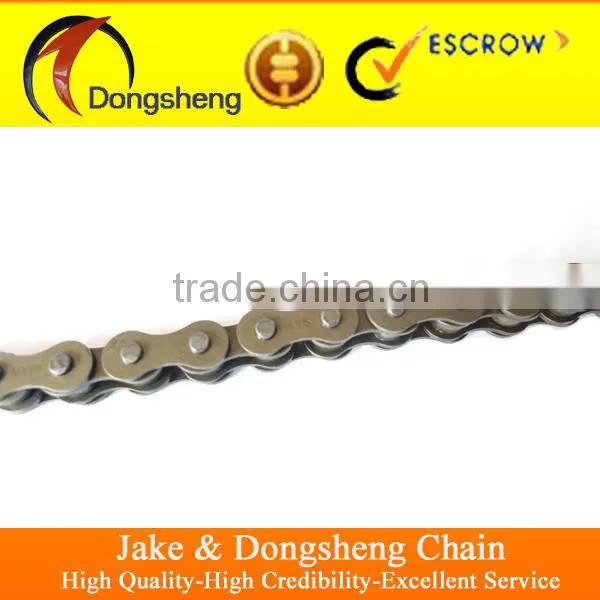

have a look !! Simplex roller chain 415 and so on
| chain no. | pitch | roller diameter | width between inner plate | pin diameter | pin lenth | inner plate depth | plate thickness | Weight per meter |
| mm | mm | mm | mm | mm | mm | mm | kg/m | |
| A06B-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.74 | 8.20 | 1.30 | 0.75 |
| 415 | 12.700 | 7.77 | 4.76 | 3.60 | 11.0 | 9.70 | 1.00 | 0.32 |
| 415H | 12.700 | 7.77 | 4.76 | 3.96 | 13.1 | 12.00 | 1.50 | 0.55 |
| 415B | 12.700 | 7.75 | 4.88 | 4.09 | 12.9 | 10.30 | 1.30 | 0.45 |
| 415BF1 | 12.700 | 7.75 | 4.88 | 4.09 | 11.5 | 10.30 | 1.00 | 0.38 |
| 415BF3 | 12.700 | 7.75 | 4.80 | 4.09 | 11.6 | 10.30 | 1.20 | 0.43 |
| 415BF5 | 12.700 | 7.75 | 5.10 | 4.09 | 14.4 | 9.90 | 1.8/1.6 | 0.46 |
| 415BF7 | 12.700 | 7.75 | 4.88 | 3.58 | 13.8 | 10.30 | 1.30 | 0.40 |
| 423 | 12.700 | 8.51 | 6.40 | 4.45 | 15.6 | 12.40 | 1.70 | 0.71 |
| 478 | 12.700 | 7.80 | 4.80 | 4.00 | 11.6 | 10.46 | 1.25 | 0.39 |
| 170GSX | 12.700 | 7.75 | 6.45 | 3.96 | 14.8 | 11.50 | 1.6/1.4 | 0.62 |
| 205 | 12.700 | 8.51 | 6.40 | 4.45 | 15.2 | 11.80 | 1.6/1.3 | 0.85 |
| 08BF | 12.700 | 8.51 | 5.55 | 4.45 | 14.6 | 11.80 | 1.60 | 0.66 |
| 12BF14 | 19.05 | 12.07 | 30.56 | 5.72 | 42.0 | 16.00 | 1.85 | 2.13 |
| 515 | 19.05 | 12.07 | 13.50 | 5.72 | 28.6 | 16.20 | 3.0 | 1.83 |
| 14BF1 | 22.225 | 14.30 | 14.60 | 9.00 | 36.3 | 23.50 | 4.8/4.0 | 3.59 |
| 16BF1 | 25.40 | 15.88 | 12.20 | 8.28 | 31.4 | 21.00 | 4.15/3.1 | 2.51 |
| 16BF2 | 25.40 | 15.88 | 17.02 | 8.28 | 38.6 | 21.00 | 4.15 | 3.08 |
| 16BF5 | 25.40 | 15.88 | 12.70 | 8.28 | 30.8 | 20.00 | 3.5/3.0 | 2.37 |
| 850HSA | 25.40 | 17.80 | 15.88 | 9.53 | 42.0 | 26.60 | 5.6/4.8 | 4.85 |
| 32AF2 | 50.80 | 32.00 | 31.75 | 17.00 | 64.8 | 48.00 | 6.40 | 11.61 |
| 32AT | 50.80 | 28.58 | 15.88 | 14.27 | 36.2 | 47.80 | 3.25 | 5.21 |
our factory
Our factory has whole sets precision equipments such as punch(10sets), bender(7sets), high-speed reel machine(12sets), high-speed pin shaft cut machine(7sets), the most advanced mesh-belt furnace line(2sets), rotate furnace (9sets) and so on.
The Chain technic treatment is as below:
1.Shot peening =>2.Bluing =>3.Phosphating =>4.Nickel-plated =>5.Zincing =>6.Heat treatment =>7.Carburizing =>8.Quenching =>9.Tempering =>10.Oiling =>11.Greasing
