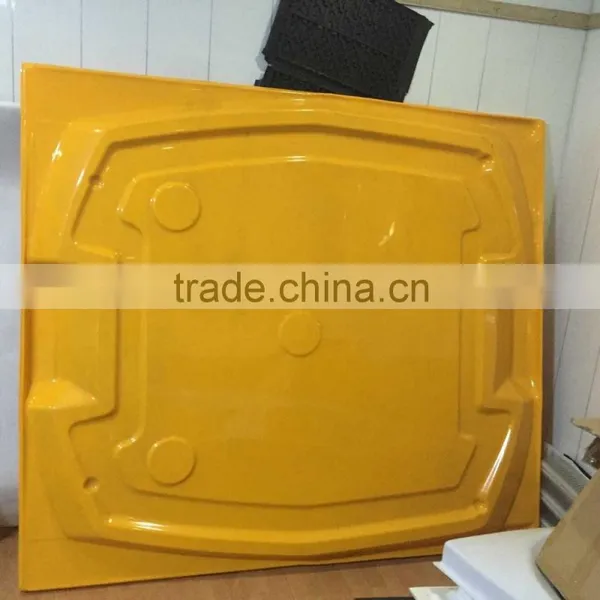

GLOF TOP SHELL VACUUM FORMING MAHCINE
Working Cycle:
Carry material by hand → Clamp the materials → Oven move along to forming area → Heating → Oven move back to heating area → Lower mold up → blown → Vacuum → Cooling → Automatic degassing → Mold ejecting → Lower mold down → Take out the finished product by hand.
Basic units:
1. Heater adopts ceramic heating bricks.
2. Heater drives by cylinder to insure heater work fleetly and placidly.
3. The equipment with the safety and protection equipment.
4. Clamp unit, controlled by pneumatic solenoid valve. Clamping unit assembled synchronous unit for material pressing. This machine adopts iron clamp bracket, which can bear high temperature, avoid the clamp bracket metamorphosed and adjust width and length arbitrarily.
5. Complete vacuum system includes vacuum room, vacuum pump, vacuum storage gas pot, vacuum pipeline, adjustable air cleaner device and vacuum controlling unit.
6. Cooling system assemble air blower and spray gun. The spray gun could be adjusted according to different products making.
7. Automatic degassing before mold ejecting.
8. This machine controlled by PLC, touch screen control system and display and controls the operation of equipment. Operation panel installed at the left of front side and free to turn.
9. The front door is movable door; it’s convenient for changing mould.
Excellence of equipment:
1. Heater (controlled separately)
A. Heater separately: Set different temperature according material forming demand to insure product quality. Adjusted the voltage of heater by AC voltage meter which can insures the heater temperature steady and save power.
B. Change the heater units fleetly. And it is economical for maintain because it only need change part units.
2. Controlling the heater unit separately can short the heating time and economize energy and improve product quality and reduce cost.
3. Adjustable frame: The side size clamping is 20--50mm which can economize the material. And the total of economized material is a considerable amount.
4. Sheet sag control device: Prevented sheet sag after heating by pressure support system, and assembled photoelectric switch.
5. Machine with double heaters and drove by pneumatic pressure, it is suitable thermoforming ABS, PMMA/ABS, PE, PVC, PET, PS, PP sheet which thickness within 8mm.
6. Max. Mold height can up to 650mm.
Machine units
No. | units | spec | manufactures |
1 | AC Contactor | Lc1-D150, L c1-1810 | SCHNEINER COMPANY |
2 | Control Relay |
| OMRON (Japan) |
3 | Miniature Circuit Breaker | CAMH-100, C45 series | SCHNEINER COMPANY |
4 | Inductive Proximity Switch | XS8S17 | SCHNEINER COMPANY |
5 | Solid State Relay | SSR-25VA | OUHAI HUANAN |
6 | Temperature control |
| Weina(NingBo) |
8 | Button | XB2 | SCHNEINER COMPANY |
9 | Ceramic Heating Bricks | 120*120mm 0.65kw | GUANGDONG |
10 | Solenoid Valve |
| SMC(JAPAN) |
11 | Vacuum Valve | KA50 | SMC(JAPAN) |
12 | Vacuum Pump | 100m3/h | BECKER(GERMANY) |
13 | Cylinder |
| YIDA |
14 | PLC, Touch Screen | 10.4 INCHES, TP2710 | SIEMENS |
15 | Automatic Spray Gun | ST-7 | 7-UP(TAIWAN) |
Main Technical Parameters:
Model: XSHD2010/65
Max. Forming area: 2000*1000mm
Max. Mold Height: 650mm
Production Speed: 5 --30 Cycles/h
Power of oven: Approx.83.2kw (upper Oven) 55.2kw (Lower Oven)
Power of vacuum pump motor: 3kw
Vacuum pump capacity: 100m3/h
Voltage: 1 Phase 220V 3 Phases 380V 50HZ
Overall dimensions: 2900*3300*3800mm
Weight: 7500kg
Term:
XSHD2010/65 Computerized Thicker Sheet Vacuum Forming Machine:
USD66, 500(FOB Ningbo Port)
Mark:
1) The forming size is different with product size.
2) The validity period of this price is 30 days from 17th, March, 2009.
Payment: 30% advance payment by T/T upon signing the contract.
70% balance by the T/T before shipment.
Delivery time: 90 days after deposit reached.
Installation and Start-up: 1 or 2 technicians will be assigned to coordinate installation, commissioning and training, cost for flight and suitable accommodation will be charged additionally. And the allowance is USD 60 per day.
Warranty: 12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
