Specifications
In line cutting.Forming HIPS, PS, PVC, PET, PP.
CE certification.

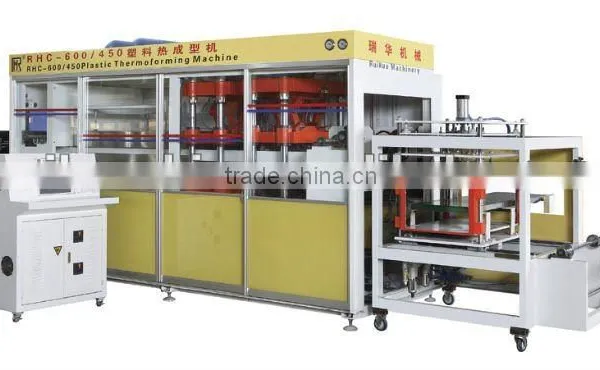

RHC-600/500 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting & stacking into one process.
Application Area:
It is suitable for forming HIPS, PS, PVC, PET, PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.
Main Technical Parameters:
Max. Forming Area: 600*500mm
Max. Forming Depth:100mm
Sheet Thickness Range: 0.15-1.5mm
Max. Sheet Width: 640mm
Air Pressure: 0.8Mpa
Speed: 360-1200 cycles/h
Heater Power: 32kw (Upper Heater) 24kw (Lower Heater)
Punch Pressure: 20tons
Upper Mold Table Stroke: 120mm
Lower Mold Table Stroke: 120mm
Max. Mold Depth: 120mm
Power: 3 Phases 380V
Max. Hydraulic Pump Pressure: 21Mpa
Max. Cutting Length: 8650mm
Machine Total Power: 72kw
Overall Dimensions: 7800*1400*2100mm
Weight: 4500kg

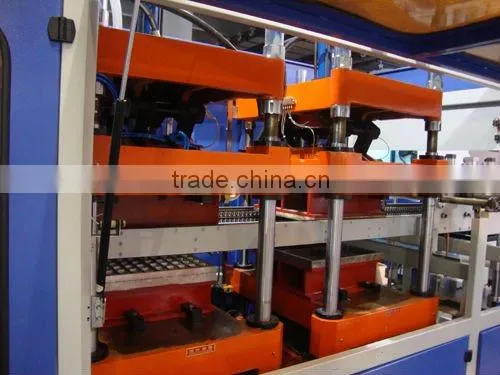

Forming & Cutting Station:
