Help Center12 Inch Speaker Woofer Neodymium Woofer Pro Speaker SD-XL Series for J B L Speaekr Replacement
Related Products
-
Good Quality Aluminum Chassis 15 Inch Woofer Used in Hifi Area SD-XL15US$ 1 - 50MOQ: 50 Pieces -
10 Inch Full Range Speaker Professional Neodymium Woofer Speaker SD-XL10US$ 2 - 49MOQ: 50 Pieces
-
Good Price 12 Inch Speaker Pro Audio Speaker B&C Professional Full Range Woofer SD-123504US$ 10 - 20MOQ: 100 Pieces
-
New Coming 12 Inch Subwoofer Neodymium Speaker Low Frequency 12 Inch Speaker Subwoofer SD-KP12US$ 50.99 - 60.99MOQ: 1 Piece
-
Hot Sale Low Weight Neodymium 12 Inch Woofer Speaker SD-KP12US$ 50.99 - 60.99MOQ: 1 Piece
The process is as follows: (we Accept T/T,Western Union,Paypal,cash etc)
1. Tell us the Items model and quantity you order. we make a PI for you. Then You pay the down payment 30% of the total amount to our company account .(Please notice bank charge is paid by your side)
2.After we receive the down payment, we will produce the goods for you.
3.Once we finish the products , we will send you the photos to check and confirm.
4.If everything is ok, you pay the 70% balance amount.
5.After we receive the balance amount, we will arrange shipping for you.
6.During shipping,we will inform the delivery data, such as where is the goods now, when will arrive to your seaport....
7. After received your goods, if have any questions,our customer services and engineers will try to solve.
SD-XL Series

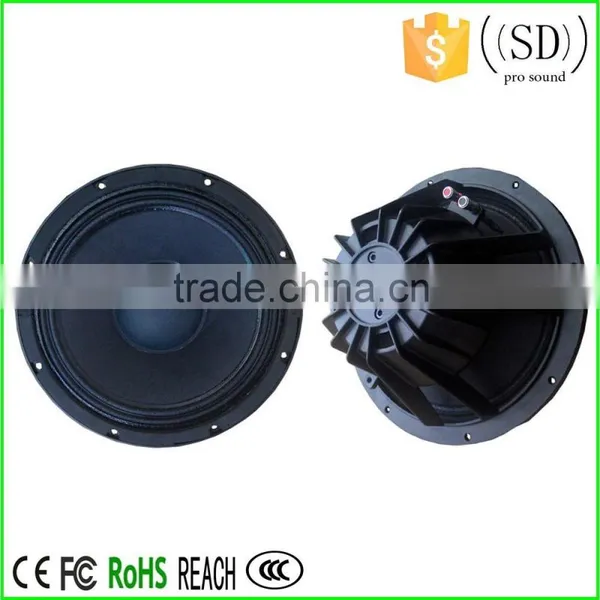

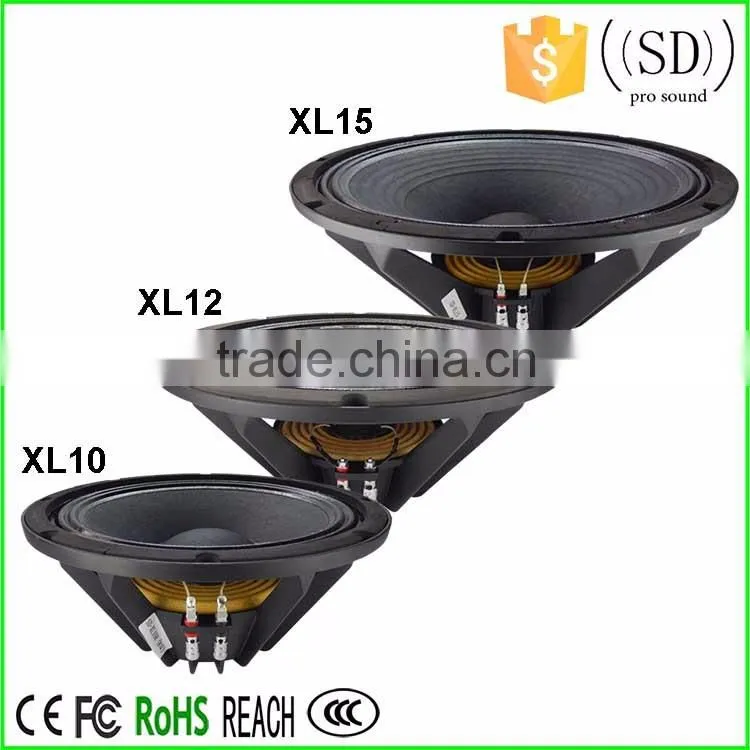

12 inch speaker woofer neodymium woofer pro speaker SD-XL Series for J B L speaekr replacement
XL10
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||
| Nominal Diameter | 10"/254mm | FS | 76Hz | Overall Diameter | 267mm |
| Nominal Impedance ohm | 8ohm | Re | 5.6ohm | Bolt Circle Diameter | 252mm |
| AES Power | 300W | Qms | 3.91 | Baffle Cutout Diameter | 234mm |
| Program Power | 600W | Qes | 0.64 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 60-3000Hz | Qts | 0.55 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 96.1dB | Mms | 34.5G | Depth | 123mm |
| Flux Density | 1.15T | Cms | 0.12mm/N | Net Weight | 3KG |
| Magnet Diameter | 64mm | BL | 16.6T-M | Gross Weight | 13.5KG |
| Voice Coil Diameter | 2.5"/65mm | Sd | 346cm2 | Box Size | 59x28x31cm/4pcs |
| Winding Material | Aluminum | Vas | 20.9L | ||
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||
| Nominal Diameter | 12"305mm | FS | 60Hz | Overall Diameter | 321mm |
| Nominal Impedance ohm | 8ohm | Re | 5.2ohm | Bolt Circle Diameter | 297mm |
| AES Power | 400W | Qms | 4.92 | Baffle Cutout Diameter | 285mm |
| Program Power | 800W | Qes | 0.47 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 60-300Hz | Qts | 0.43 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 96dB | Mms | 55.1G | Depth | 142mm |
| Flux Density | 1.15T | Cms | 0.12mm/N | Net Weight | 3.4KG |
| Magnet Diameter | 74mm | BL | 15.2T-M | Gross Weight | 14.5KG |
| Voice Coil Diameter | 3"/75mm | Sd | 539cm2 | Box Size | 61x33x33cm/4pcs |
| Winding Material | Copper Clad Al | Vas | 51.3L | ||
XL15
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||
| Nominal Diameter | 15"/381mm | FS | 45Hz | Overall Diameter | 338mm |
| Nominal Impedance ohm | 8ohm | Re | 5.2ohm | Bolt Circle Diameter | 373mm |
| AES Power | 450W | Qms | 7.8 | Baffle Cutout Diameter | 356mm |
| Program Power | 900W | Qes | 0.28 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 45-3000Hz | Qts | 0.27 | Mounting Holes Diameter | 7.6mm |
| Sensitivity(1W/1M) | 98.9dB | Mms | 75.2G | Depth | 171mm |
| Flux Density | 1.15T | Cms | 0.15mm/N | Net Weight | 4.2KG |
| Magnet Diameter | 74mm | BL | 15.7T-M | Gross Weight | 9.6KG |
| Voice Coil Diameter | 3"/75mm | Sd | 855cm2 | Box Size | 42x41x39cm/2pcs |
| Winding Material | Copper Clad Al | Vas | 155.5L | ||
Company Information:
Our product range as follows: woofer speaker, tweeter speaker, coacial speaker, professional speaker box, sound system proposal, microphone and ect.
As one of the OEM & ODM suppliers,We specialize in design and manufacture all kinds of products and accessories for customers.
Our Sales Teams at April 5th,2015,Guangzhou Exhibition:
