Specifications

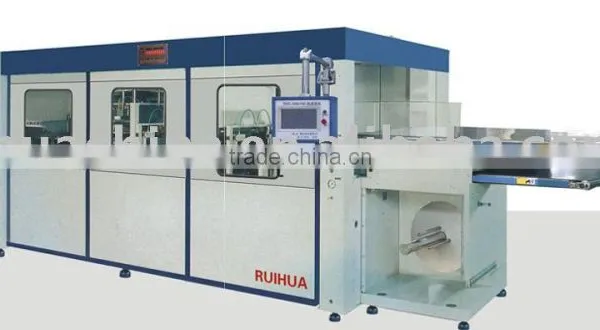

Suitable for forming HIPS, PS, PVC, PET,PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies trayPlastic Thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting & stacking into one process.
Application Area:
It is suitable for forming HIPS, PS, PVC, PET,PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.
Main Technical Parameters:
Max. Forming Area: 500*700mm
Max. Forming Depth: 100mm
Sheet Thickness Range: 0.15-1mm
Max. Sheet Roll Diameter: 800mm
Max. Sheet Width: 800mm
Air Pressure: 0.8Mpa
Air Consumption: 250 Liters/min
Water Consumption: 10 Liters/min
Speed: 400-900 cycles/h
Heater Power: 18kw
Power: 3 Phases 380V
Mould Heating Plate Power: 9kw
Max. Cutting Length: 8650mm
Overall Dimensions: 8600*1800*2400mm
Sample:
Weight: 4500kg
