Help Centerpp Cake Case Thermoforming Machine
Related Products
pp cake case thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting, punching, stacking into one process.
Application Area:

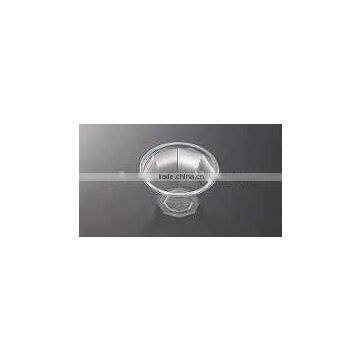

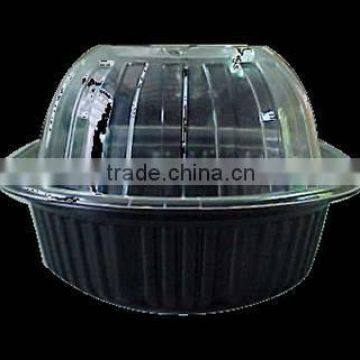

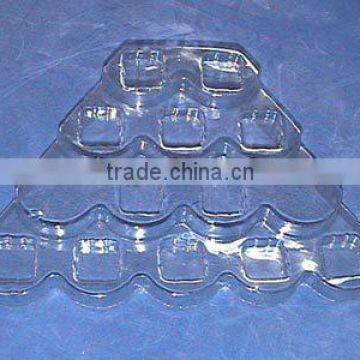

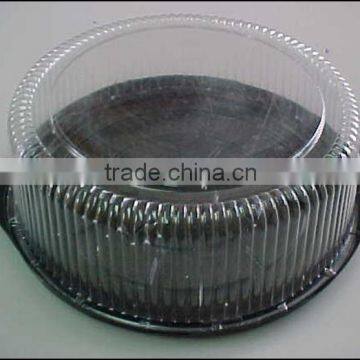

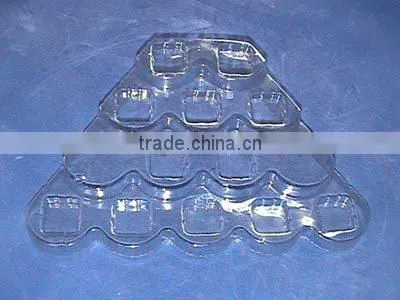

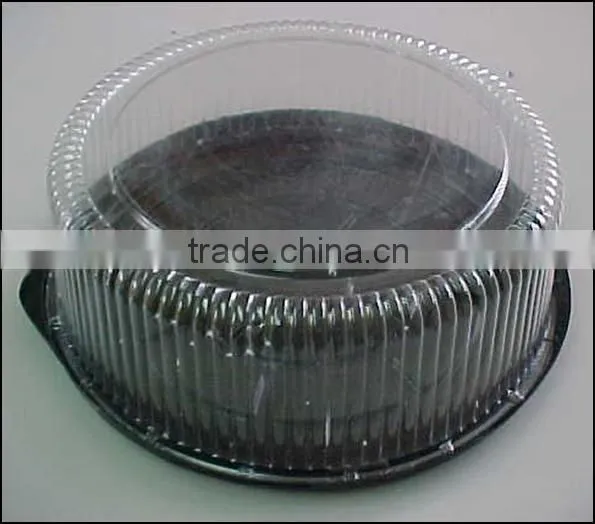

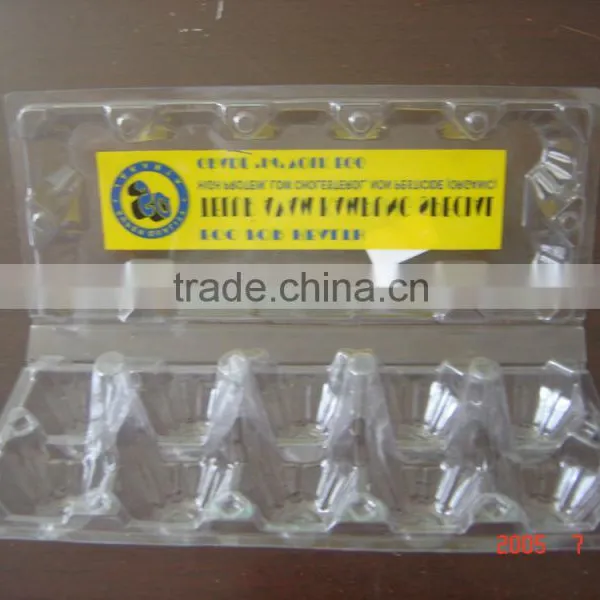

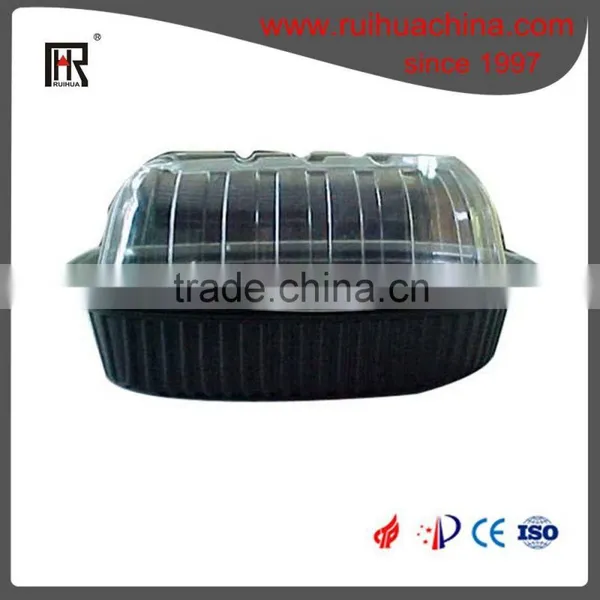

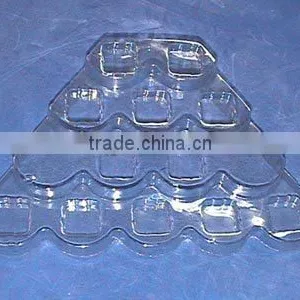

It is suitable for forming HIPS, PS, PVC, PET, PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.
Main Technical Parameters:
Max. Forming Area: 600*500mm
Max. Forming Depth:100mm
Sheet Thickness Range: 0.15-1.2mm
Max. Sheet Width: 640mm
Air Pressure: 0.8Mpa
Speed: 360-1200 cycles/h
Heater Power: 32kw (Upper Heater) 24kw (Lower Heater)
Punch Pressure: 20tons
Upper Mold Table Stroke: 120mm
Lower Mold Table Stroke: 120mm
Max. Mold Depth: 120mm
Power: 3 Phases 380V
Max. Hydraulic Pump Pressure: 21Mpa
Max. Cutting Length: 10650mm
Machine Total Power: 92kw
Overall Dimensions: 10000*1200*2100mm
Weight:8500kg
Configuration:
1. Solenoid Valve: SMC (Japan)
2. PLC: SIEMENS
3. Control relay: OMRON (Japan)
4. Cylinder: YIDA COMPANY
5. Heating system: 160 PCS Infrared Ceramic Heating Bricks
6. Servo-Motor: Panasonic (Japan)
7. Miniature Circuit Breaker: Schneider
8. AC Contactor: Schneider
9. Hydraulic Pump: YIDA COMPANY
10. Panel: SIEMENS
11. Temperature adjust system: 80 solid state relay, AC voltage meter.
12. Chiller: Anges Input Power: 5.8kw Cooling Type: Air Cooled.
13. Vacuum Pump: BECKER 100m3/h (Germany)
Key Features:
1. Feeding the roll sheet by servo-motor & feeding error within 1mm. Feeding speed and feeding length can be set one panel, easy and exact.
2. Special chain only needs clamp size 4-5mm per side, compare with common chain, it can save the material 5-8mm per side.
3. Forming and punching station drove by hydraulic pressure, it can add oil automatic, then save the manpower and keep product clean.
4. It with rewind device, rewind is easier and save the labor.
5. It gather pressure forming, vacuum forming, mold forming, the forming product range is added.
