Home > Consumer Electronics > Audio & Sets > Professional Audio > 10 Inch Woofer Speaker Price 8 Ohm Speaker With Speaker Voice Coil China Woofer Price BC Speakers

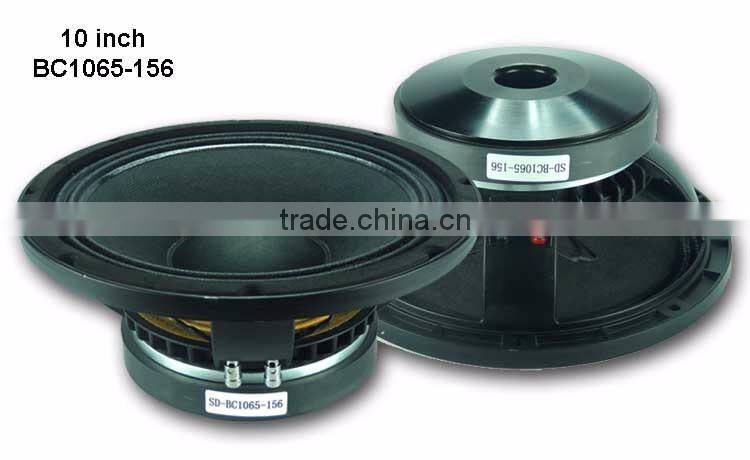

10 Inch Woofer Speaker Price 8 Ohm Speaker With Speaker Voice Coil China Woofer Price BC Speakers
US$ 20 - 52
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sheng Da Audio
Model Number:
SD-BC speakers
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Neodymium 12 Inch Sub Woofers Sound Speakers Guangzhou the Speakers,SD-ND12US$ 80.99 - 110.99MOQ: 1 Piece -
12inch Subwoofer Hot Sale Neodymium Speaker Loud Speaker SD-12NW75US$ 30 - 40MOQ: 1 Piece
-
12 Inch Woofer Neodymium Speaker Neodymium Woofer 10inch/15 Inch AvailableUS$ 45 - 60MOQ: 10 Pieces
-
15 Inch Speaker China Speaker Manufacturer Stage Woofer SD-MT1575-190US$ 10 - 20MOQ: 1 Piece
-
15'' Hot Sale High Power Bass Speaker Woofer SD-LF15190US$ 30.99 - 45.99MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Sheng Da Audio
Model Number
SD-BC speakers
product link
Main Picture
SD-BC speakers

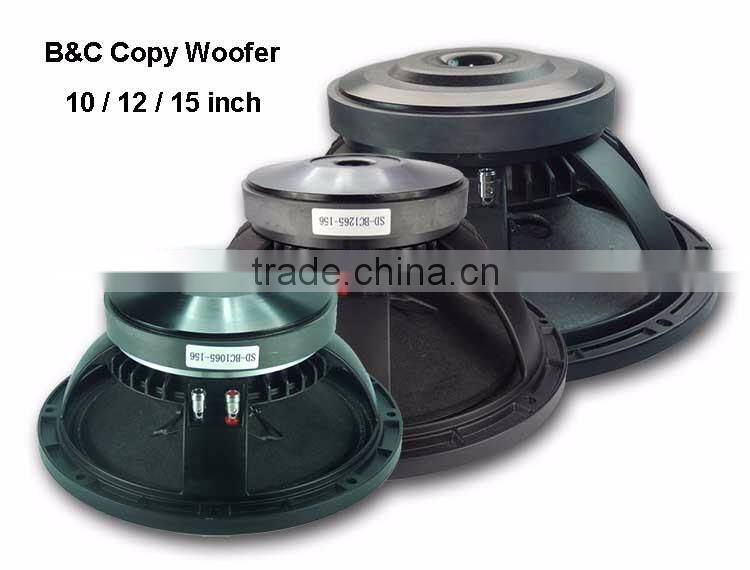

B&C copy speakers
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||

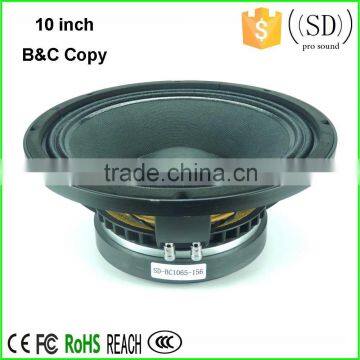

| Nominal Diameter | 10" / 254mm | FS | 67Hz | Overall Diameter | 261mm |
| Nominal Impedance ohm | 8 ohm | Re | 4.8ohm | Bolt Circle Diameter | 245mm |
| AES Power | 200W | Qms | 4.4 | Baffle Cutout Diameter | 229mm |
| Program Power | 400W | Qes | 0.32 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 50-3000Hz | Qts | 0.29 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 96.2dB | Mms | 33.0G | Depth | 119mm |
| Flux Density | 1.05T | Cms | 0.16mm/N | Net Weight | 5.35KG |
| Magnet Diameter | 170mm | BL | 13.6T-M | Gross Weight | 22.9KG |
| Voice Coil Diameter | 2.5" / 65mm | Sd | 339cm2 | Box Size | 59x28x31cm/4pcs |
| Winding Material | Copper Clad Al | Vas | 27.4L | ||
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||

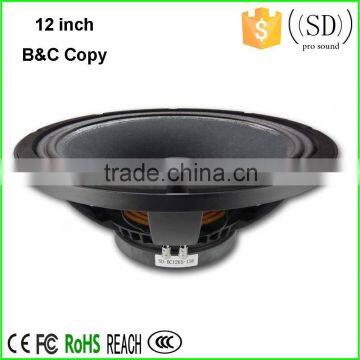

| Nominal Diameter | 12" / 305mm | FS | 38Hz | Overall Diameter | 313mm |
| Nominal Impedance ohm | 8 ohm | Re | 5.6ohm | Bolt Circle Diameter | 297mm |
| AES Power | 300W | Qms | 9.9 | Baffle Cutout Diameter | 279mm |
| Program Power | 600W | Qes | 0.35 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 38-3000Hz | Qts | 0.34 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 96.4dB | Mms | 40.0G | Depth | 138mm |
| Flux Density | 1.05T | Cms | 0.4mm/N | Net Weight | 4.65KG |
| Magnet Diameter | 156mm | BL | 12.4T-M | Gross Weight | 20.6KG |
| Voice Coil Diameter | 2.5" / 65mm | Sd | 543cm2 | Box Size | 61x33x30cm/4pcs |
| Winding Material | Copper Clad Al | Vas | 180L | ||
|
SPECIFICATION |
THIELE&SMALL PARAMETERS |
MOUNTING&PACKING INFORMATION |
|||

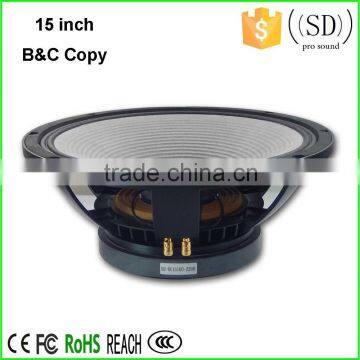

| Nominal Diameter | 15" / 381mm | FS | 40Hz | Overall Diameter | 396mm |
| Nominal Impedance ohm | 8 ohm | Re | 5.2ohm | Bolt Circle Diameter | 377mm |
| AES Power | 700W | Qms | 5.4 | Baffle Cutout Diameter | 353mm |
| Program Power | 1400W | Qes | 0.32 | N.Of Mounting Holes | 8pcs |
| Frequency Range | 40-3000Hz | Qts | 0.3 | Mounting Holes Diameter | 6.7mm |
| Sensitivity(1W/1M) | 97.5dB | Mms | 95.7G | Depth | 172mm |
| Flux Density | 1.1T | Cms | 0.16mm/N | Net Weight | 11.1KG |
| Magnet Diameter | 220mm | BL | 19.5T-M | Gross Weight | 23.8KG |
| Voice Coil Diameter | 4"/100mm | Sd | 887cm2 | Box Size | 42x41x37cm/2pcs |
| Winding Material | Copper Clad Al | Vas | 177L | |
|
Product Detail
Company Information
Company Information:
Our product range as follows: woofer speaker, tweeter speaker, coacial speaker, professional speaker box, sound system proposal, microphone and ect.
As one of the OEM & ODM suppliers,We specialize in design and manufacture all kinds of products and accessories for customers.
